| Categories | Data Center Battery Backup System |
|---|---|
| Brand Name: | HRESYS |
| Model Number: | VHR 2DEG 800L |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 10 Pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1800000 PCS/YEAR |
| Delivery Time: | 30 DAYS |
| Packaging Details: | Box/carton(standard package) |
| Product Name: | 2V VRLA GEL Batteries |
| Application: | Backup Power |
| Capacity: | 800AH |
| Nominal Voltage (V): | 2 |
| Float Charge Voltage: | 2.25V/cell @25 ℃（-3mv/℃/cell） |
| Internal Resistance: | 0.33m Ohm (fully charged @20℃) |
| Weight: | 52.8 kg (116.4 lbs) |
| Dimension: | L229mm x W154mm x H555mm |
2V800AH VRLA Gel Batteries for Telecommunications,UPS systems,IDC and other backup applications.L229mm x W154mm x H555mm
HRESYS VHR 2DE 800 is long life VRLA AGM+GEL Battery.it has excellent quality,higher max.charge current value and max.discharge current value.with high 800AH capacity and corrosion resistance thick grid and advanced manufacturing technique, and it delivers high reliability performance and long float service life up to 15 years,it is highly suited for Telecommunication,UPS systems,IDC and other Backup applications.
- Excellent and long float service life up to15 years at 25℃(77℉).
- Thick flat plate design enables better cyclic applications and quality,ensures good quality.
- Flexible design for both horizontal and vertical installation at different locations,higher in the height direction.
- Low self discharge rate and high reliability,it provides better performance and low self consumption.
- Wide operation temperature range for multiple working scenarios,better suited for different environment.especially suited for Telecommunication and UPS using,IDC.
- Flame retardant ABS case(UL 94V-0,optional).
- International standards compliance,i.e. IEC,EN,BS,CE,etc.
| Nominal Voltage (V) | 2 |
| Designed floating life (25℃) | 15 years |
| Nominal capacity(25 ℃) | 800AH @C10(to 1.8Vpc) |

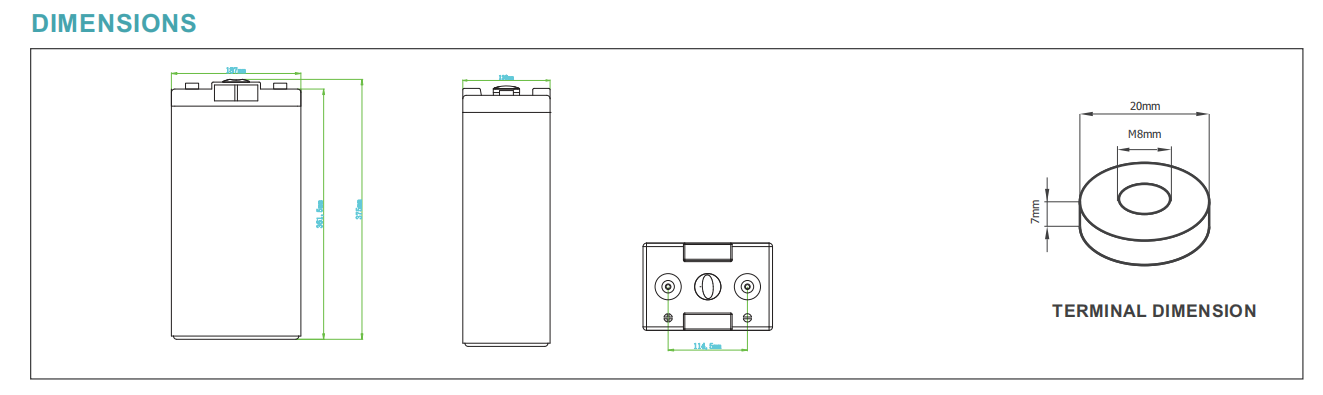

| Demensions | L229mm×W154mm×H555mm(TH567.8mm) |
| Approx.Weight | 52.8kg(116.4lbs) |
| Terminal type | Female copper insert M8(torque:10-12N.m) |
| Internal resistance | Approx.0.33mOhm(fully charged @20℃) |
| Max.Charge current | 200A |
| Max.DisCharge current(5s) | 3200A |
| Short circuit current | 9000A |
| Ambient Temperature | Discharge: -40~60°C Charge: -20~55 C Storage: -20~45 C |
| Float Charge Voltage | 2.25V/cell@25℃(-3mv/℃/cell) |
| Equalize charge voltage | 2.35V/cell@25℃(-5mv/℃/cell) |
| Container Material | ABS UL ( 94-V0 optional) |
| Self Discharge | Approx. 2.5% per month @ 20°C |
o Telcommunication
o Ups systems
o IDC
o Other backup applications
o IEC 60896-21/22
o GB/T 19638
o IEC61427
o JIS C8704
o BS6290 PART4
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
· Charge Characteristics

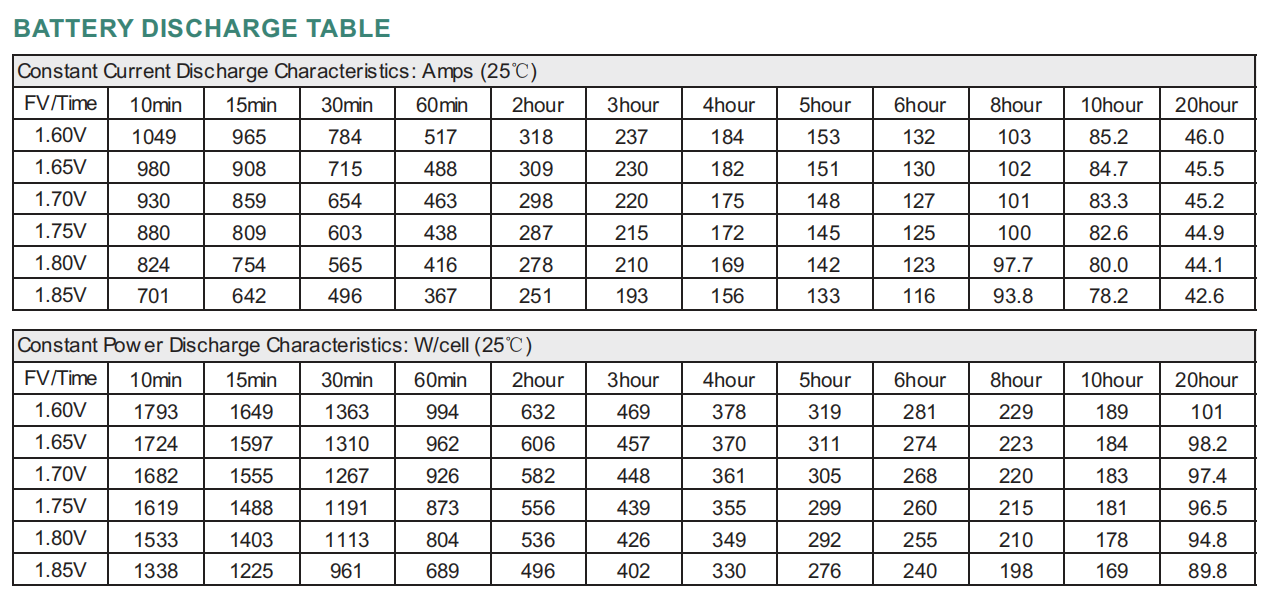

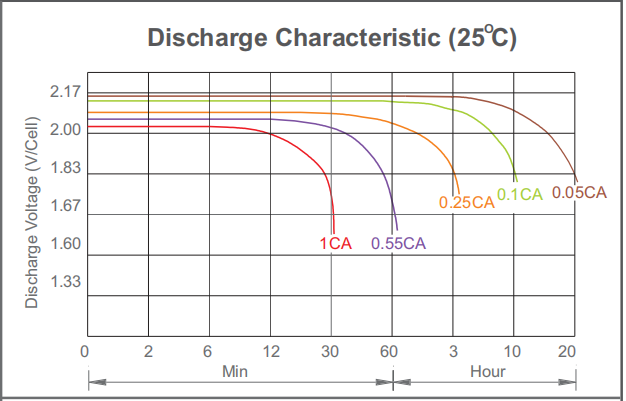

· DisCharge Characteristics(25℃)

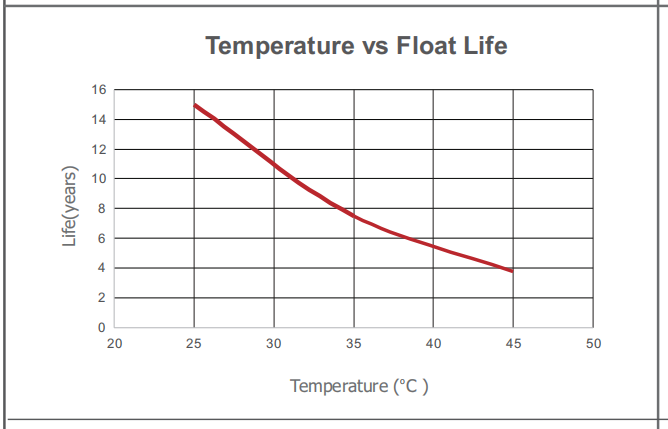

· Temperature vs float life

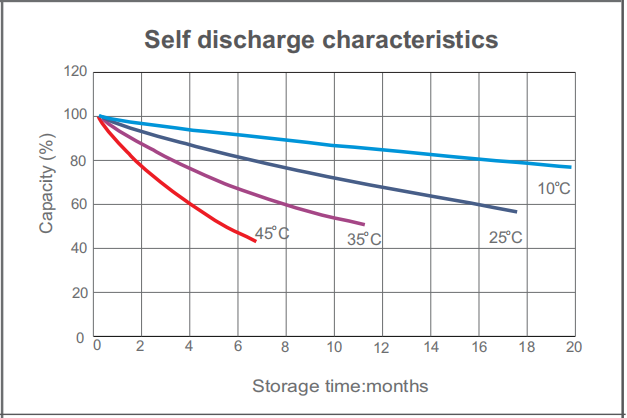

· Self-Discharge Characteristics
· Float voltage vs float life

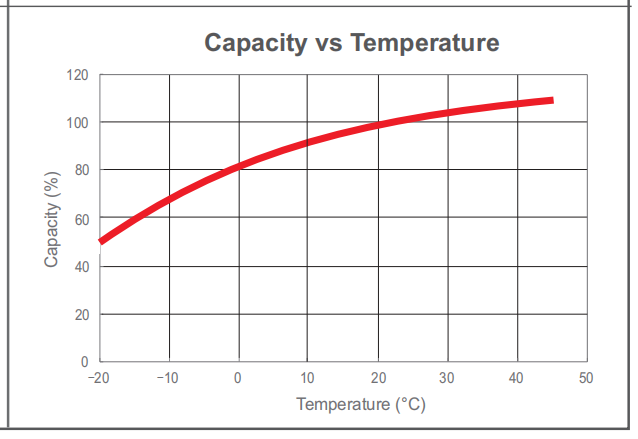

· Capacity vs temperature
· Settings Recommendation
|
