| Categories | PU Sandwich Panel Line |
|---|---|
| Place of Origin: | China |
| Brand Name: | YBT |
| Certification: | CE ISO SGS |
| Model Number: | YT983408 |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Standard export packing with each machine tied and protected in container |
| Delivery Time: | 60-90 days |
| Payment Terms: | T/T |
| Supply Ability: | 10set |
| Name: | PU panel line |
| thickness: | 0.4-0.8mm |
| Warranty:: | 12 months |
| Width(mm): | 600-1200 |
| Work pressure on pouring foam(Bar): | 150-200 |
| Type: | Color steel sheet;galvanized sheet;Aluminum sheet |
Double belt sawing rock wool sandwich panel continuous production line
This production line adopts European technology, cost reduced by technical transformation, which has high stiffness, strength, accuracy, and stability; polyurethane sandwich panel production line is used for the continuous production of polyurethane foam sandwich panel, such as polyurethane insulation panel with surface layer of non-woven cloth, cement mortar, kraft paper or aluminum foil.
| Production line shape size | 48000*8000mm | highest temperature | 70°C |
| products specifications | Width:1200mm Thickness:15~100mm | Minimun cut length | 1200mm |
| Production speed | 3-8 m/min | Diagonal accuracy | ±2mm |
| Weight | 40T | total power | 120kw |

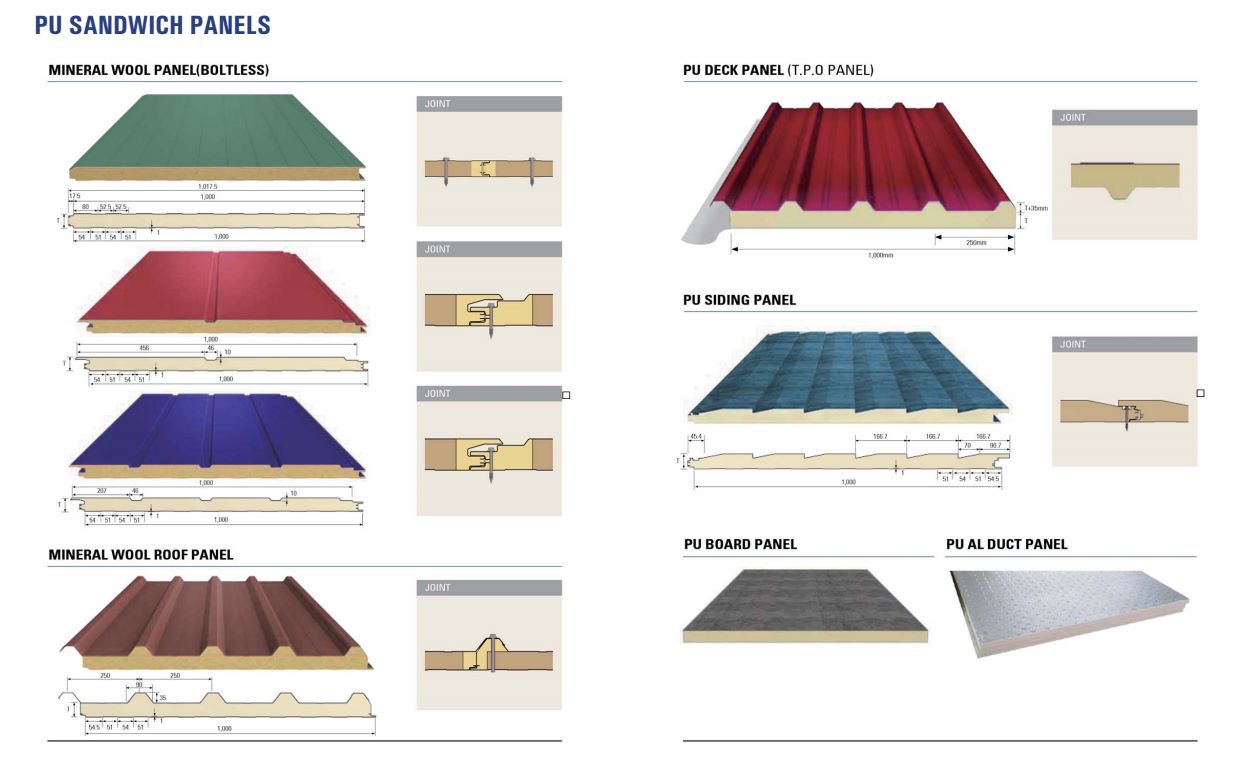

Plate type figure
Technical parameter
| Item | Parameter | |
| Material | Type | Color steel sheet;galvanized sheet;Aluminum sheet |
| Thinckness(mm) | 0.4-0.8 | |
| Width(Mpa) | ≤1250 | |
| Suitable size of panel | Length(mm) | 2000-16000 |
| Width(mm) | 600-1200 | |
| Thickness((mm) | 30-200(Not including height of corrugation) | |
| Production speed(m/min) | (Adjustable)3-8 | |
| Valid length of double belt conveyor(mm) | 16000-36000 | |
| Work pressure on pouring foam(Bar) | 150-200 | |
| Total power(kw) | Abouot 300 | |
| Total size(Length×Width×Height) | 130000×15000×6000 | |
| No. | Item |
| 1 | polyurethane high pressure foam machine |
| 2 | upper layer and lower layer color steel tile forming system |
| 3 | conveying system |
| 4 | double caterpillar bands laminating machine system |
| 5 | back conveying and cutting system |
Automatic control of pu sandwich panel production line:
Automatic control system includes uncoil area control, double crawler forming machine and drying cutting area control, the whole control system is operated through touch screen parameter input and buttons to realize automation production with reliable and stable preformance, simple and easy opeartion, Each operating position is installed with emergency stop button to ensure equipment and personal safety in case of an emergency, The adopting of new technology realizes high accuracy, high intelligence, and high speed control.
Product features of pu sandwich panel production line:
1. Wide application: Ddouble sided color steel tile, one side color steel, the other side soft material panel, one side soft material panel, etc.
2. Fully automatic
3. Technology advantage: The whole line is designed by adopting European technology and developed by our company, can reduce the cost, and improve the machine strength, accuracy and stability.
4. The electrical control system adopts international advanced brand, reliable and less malfunction.
5. The pu sandwich panel is more smooth and has better core density.
|
