Brand Name: | Hynall |
Model Number: | HNS111 |
Certification: | RED, FCC, RoHS |
Place of Origin: | Shenzhen, China |
MOQ: | 300pcs |
Price: | To be negotiated |
Payment Terms: | T/T |
Supply Ability: | 50,000pcs / month |
Delivery Time: | 3~4 weeks for bulk orders |
Packaging Details: | Bubble bag + carton. (color box or blister package also available on request) |
Input voltage: | 12V/24V |
Input current: | ≥25mA |
Function: | Tri-level dimming |
IP rating: | IP20 |
Size: | 75.1*27.1*13.8mm |
Color: | White |
Company Info. |
Hynall Intelligent Control Co. Ltd |
Verified Supplier |
View Contact Details |
Product List |
Microwave motion sensor, high tech lighting switch,with Remote Controllable setting, tri-level dimming and daylight monitoring function
Infrared remote for end-user to change all the settings, dual-processor technology to acheive the daylight monitoring function.
Features:
1. | Input voltage: 12V/24 DC |
2. | 1~10V dimming signal. |
3. | 5.8GHz C-band microwave. |

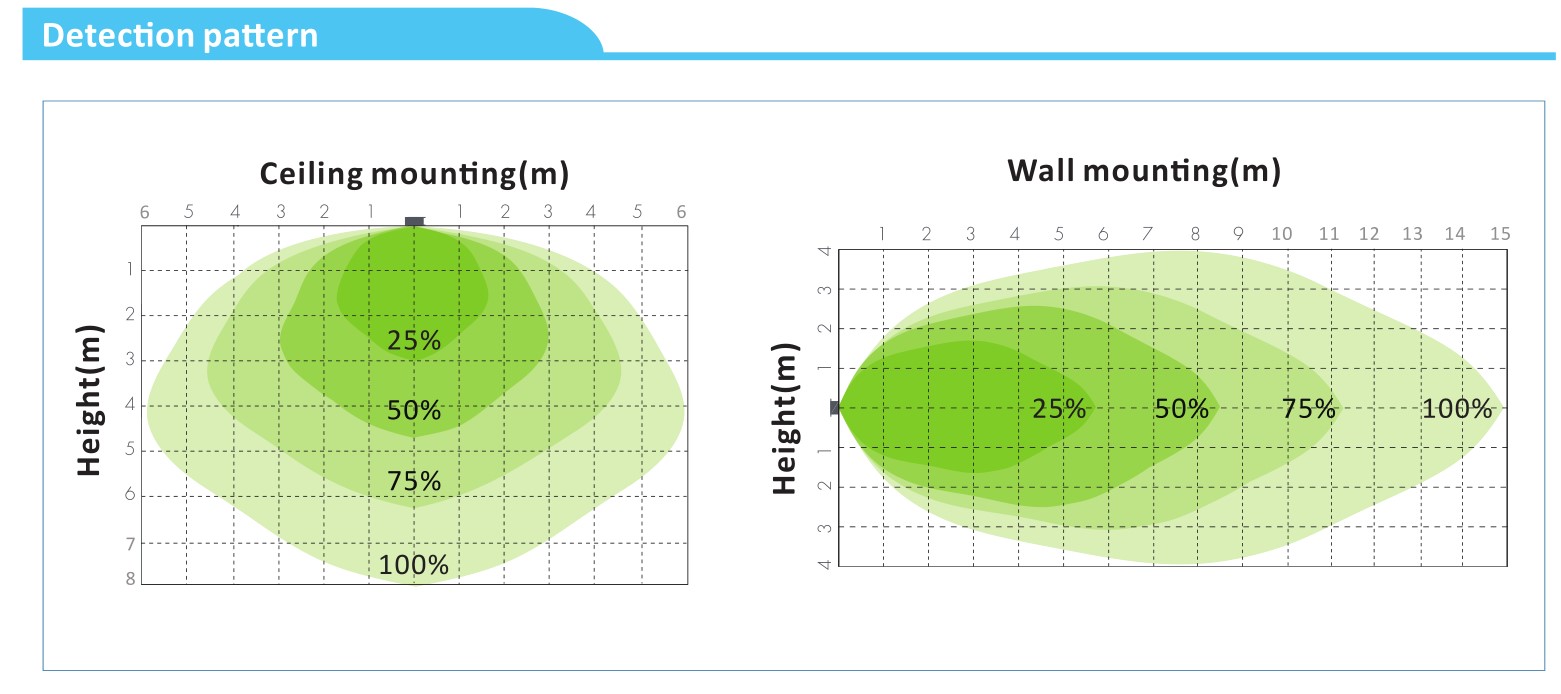

4. | Detection range: Max. 12m in diameter |
5. | Input current:≧25mA |
6. | Small size, flexible to be integrated into all of lights |
7. | Real Lux -Off & Daylight monitoring function for built-in application. |
8. | Mounting height: 3~6m |
9. | RoHs compliant |
Setting by remote control
Permanent on/off function
Dim +/-
Sensor mode
Reset function
Ambient learn
Test mode
![]() |
