Intelligent Oil Fired Steam Generator High Automation Multiple Safety Gurantee

Product Discription

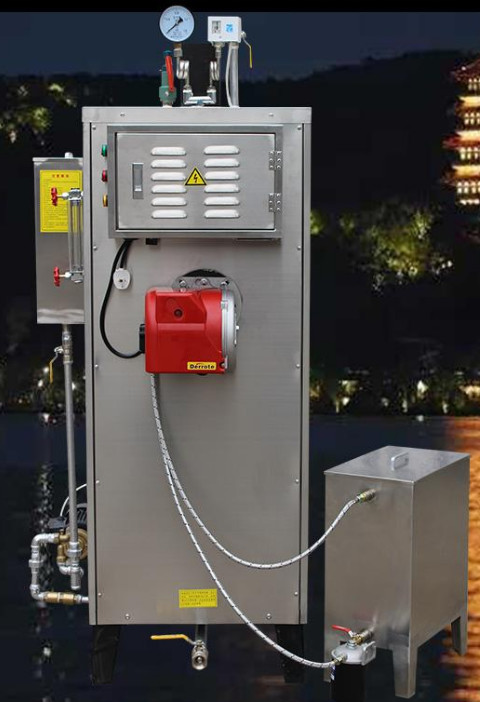

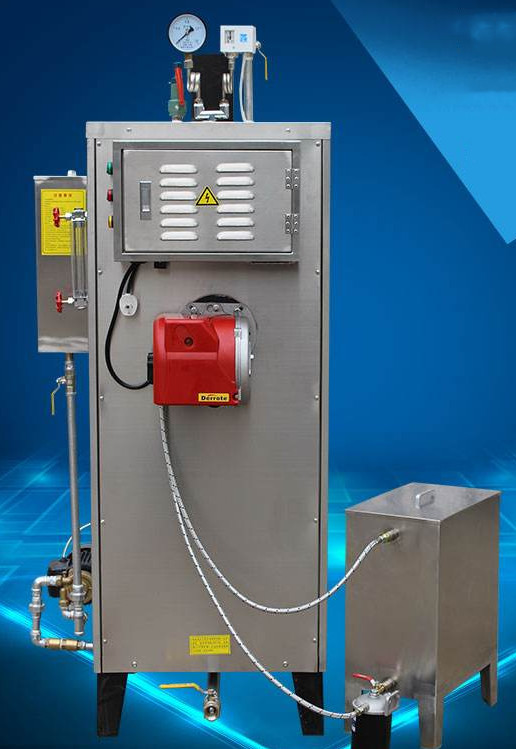

LSS Oil Fired Steam Generator

Vertical steam power LSS receives vertical pipe structure. Between the two lower rings and a special tube between the upper and lower protective tube protective tube formed three gases. Zoom and burn

For radiators and condensers thermal efficiency can be 93% and 100%. Use steam - water separator and an external steam - water separators provide high quality dry pair, save fuel, reduce the size of the system and prolong life.

1. Ease of maintenance:

Doors for inspection arranged at the bottom for inspection and cleaning the inside of the furnace for easy maintenance.

2. meet environmental requirements:

Qualitative and reliable burner completely combusted fuel, but significantly reduces harmful emissions of waste. Test results of various departments show that the power of steam (gas) steam meets the national environmental protection requirements.

3. The amount of evaporation can be increased:

The steam engine can be designed with several units (without limitation) and can be controlled by a computer. You can add a shared task. Relevant parts of the steam energy (including water purification, pumps, burners, electric control panels and main valve blocks) are already being produced at the factory.

4. The installation is completed:

It can connect water, electricity and steam pipes on the spot, saving installation time and effort.

5. Reliable accessories:

Support vodka, control box, water purification and valves, pumps are equipped with the national high-quality equipment. The support system provides a safe and reliable operation of the steam energy and improves the overall quality of the steam power.

Technical Parameters

Main Technical Reference for Fuel (Gas) Steam Generator
Item Unit			LSS0.05	LSS0.1	LSS0.15	LSS0J2
Rated evaporation		Kg/h	50	100	150	200
Rated Pressure PTEPREppoPressure		MPa	0.4/0.7
Rated steam temperature		c	151/171
Rated feed water temperature		°C	20
Evaporator efficiency		/	>92%
Applicable Fuel		/	Gas light oil
Theoretical fuel consumption	Gas	NM3/h	4	8	12	16
	Light Oil	Kg/h	3.3	6.5	9.8	13
Gas supply pressure		mbar	60- 100
water volume		L	<30

Note: The fuel consumption in the table is based on the low calorific value of biomass particles 17084 KJ/Kg (4085 Kcal/Kg).Calculations show that if the low calorific value of biomass fuel is higher than that, the corresponding fuel consumption will be more economical than the values in the table.

Configuration and Interface Size of Fuel (Gas) Steam Generator
Item Unit			LSS0.05	LSSO.l	LSS0.15	LSS0.2
Outward Size of Main Engine (length * width * height)	/	mm	620*620*830	690*690*968	750*750*1130	800*800*1286
Transport Dimension	/	mm	206	252	303	350
Mainframe Transport Weight	DN	mm	G 1/2-	Gl'	Gl"	G 1*
Main Steam Valve Pipe Diameter	DN	mm	Gl/2"	Gl/2-	Gl/2-	Gl/2°
Feed Water Valve	DN	mm	G1 1/4”	G11/4-	G11/4-	G11/4-
Safety Valve Diameter	DN	mm	Gf	GF	Gl"	Gl"
Drain Valve Pipe Diameter	DN	mm	133	133	159	159

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
