MIS-EPIC08 No Fan Embedded IPC, Board Stick 3855U or J1900 Series CPU, Double Network 2 Series 4USB

Features:

■ Small size toothed fan-free design, fully sealed

■ 3855U or J1900 CPU

■ Double Intel Gigabit Port, 2 Series 4USB

■ Supporting VGA+HDMI Independent Double Display

Specification parameters				Optional configuration
Chassis	Steel plate with aluminium fin chassis, black

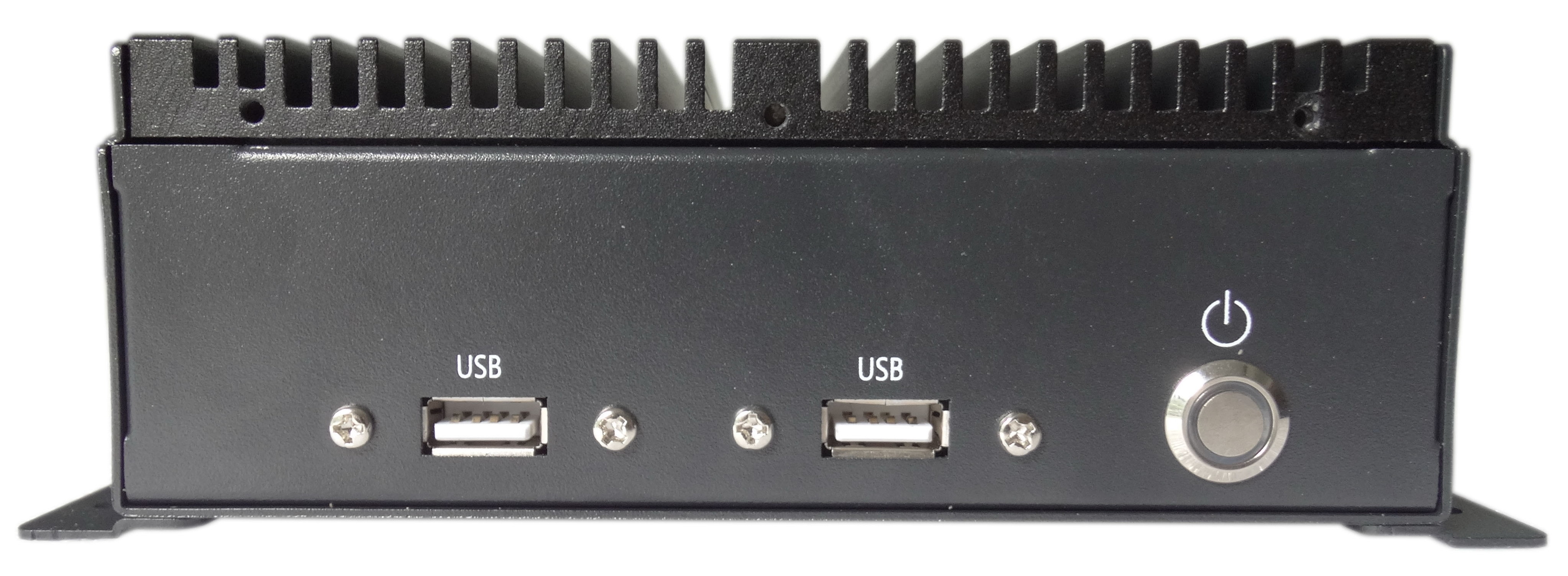

Front	Switch with power indicator; 2 USB2.0			Customizable customer LOGO or other interfaces

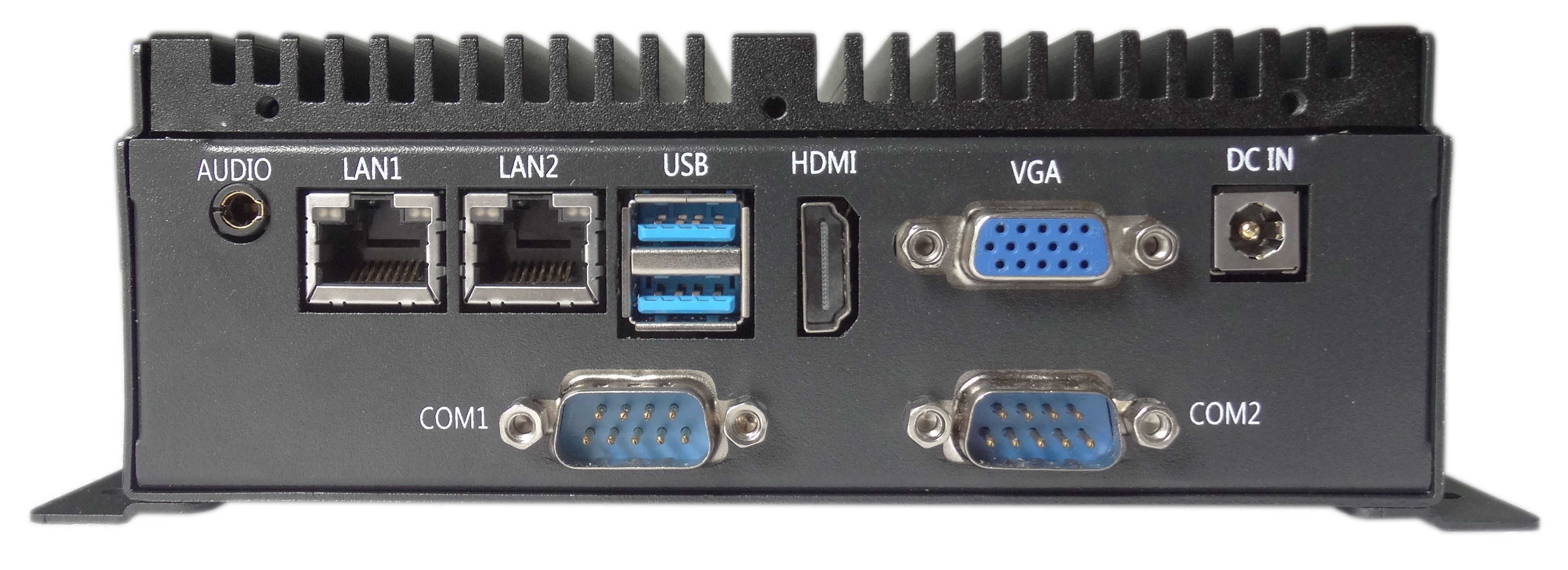

Back	DC 12V；VGA+HDMI display；2USB3.0；2RJ45 Gigabit Network Line out； 2COM			Other interfaces can be customized
Hard disk rack	None
Adapt motherboard	Special board pasted with 3855u or J1900 motherboard
CPU/GPU	Intel 3855U			Intel J1900
Memory	4G DDR4			Optional 2G/8G DDR4 notebook memory
Hard disk	64G MSATA			Optional 32G/128G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
Size	No bracket:15110753.5mm			Net/Gross Weight	1.5/2KG
Industrial Power Supply	Standardized 12V@5A adapter
Installation mode	Bracket installation
Work and Environment
Working temperature	0～60℃	Storage temperature	-40～75℃	Environmental humidity	0~90% air humidity, no condensation
		Vibration	5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC	GB9254-2008 class A		Shock	10g acceleration, 11ms duration

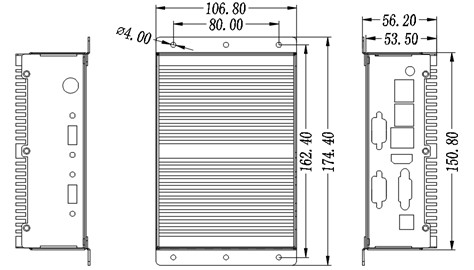

Installation Dimension Diagram
