150 ~ 300 RPM Package Vibration Testing Machine , Inspection Lab Shock Test Equipment

Categories Vibration Test Equipment
Brand Name: ASLi
Model Number: AS-100
Certification: CE, ISO ,SGS
Place of Origin: China
MOQ: 1 Set
Price: Negotiation
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Delivery Time: 15 workdays
Packaging Details: Standard Export Plywood Case
Model: AS-100
Effective Area: W1200×D1000mm
External Dimension: W1300×H650×D1300mm
Rotating Speed: 150~300RPM
Time Setting (Approx.): 0~999 hours
Mode of Vibration: Reciprocating type
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

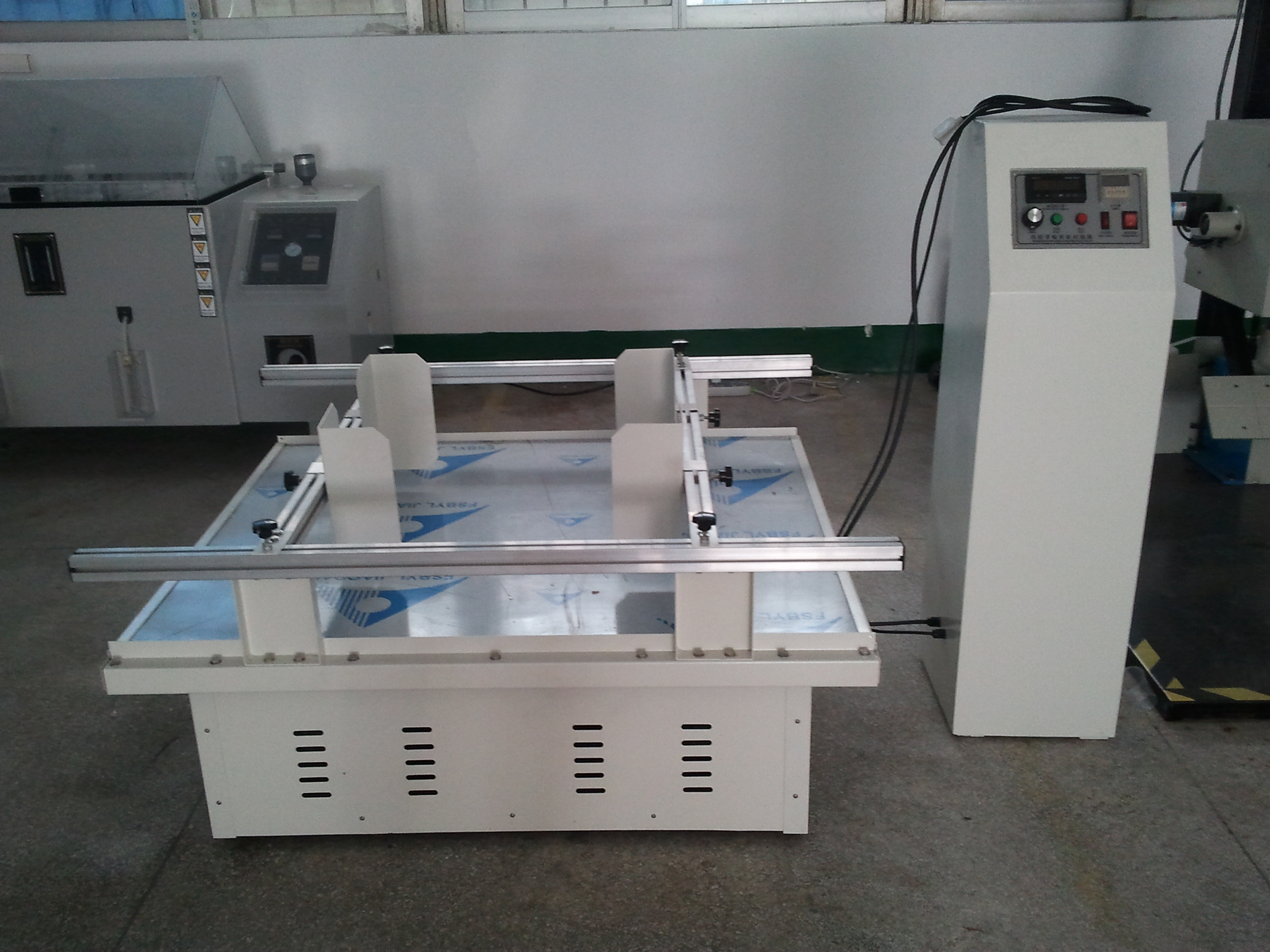

150 ~ 300 RPM Package Vibration Testing Machine , Inspection Lab Shock Test Equipment

150 ~ 300 RPM Package Vibration Testing Machine , Shock Test Equipment , Inspection Lab Equipment


Application:

150 ~ 300 RPM Package Vibration Testing Machine , Shock Test Equipment , Inspection Lab Equipment to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics,equipment,etc., under simulated transport conditions, according to American and EU transport standard (ASTM,IEC).


Transport Simulated Vibration Tester Technical Parameters:

ModelAS-100AS-200AS-300AS-600AS-1000
Load (Kg)1002003006001000
Effective Area WxD (mm)1200×10001200×10001200×13001300×14001500×1500
Weight (Kg)200250350450600
External Dimension WxHxD (mm)1300×650×13001300×650×13001300×650×14001400×750×15001600×850×1600
Rotating Speed (RPM)150~300
Amplitude25.4mm(1inch), (Accord ASTM.IEC transport standard)
Time Setting (Approx.)0~999hours
Mode of VibrationReciprocating type
PowerAC220V or according to the equipment specification


150~300RPM Carton Box Vibration Test Features:
1. Unique design, easy to use
2. Low noise, with buffering function
3. Frame is powder coating, working table is stainless steel with aluminium alloyrail track.

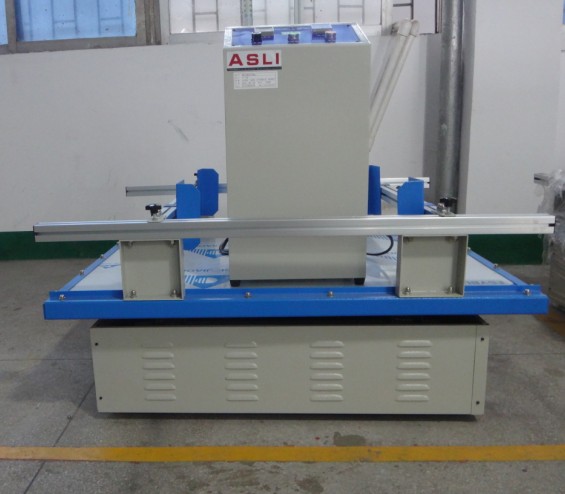

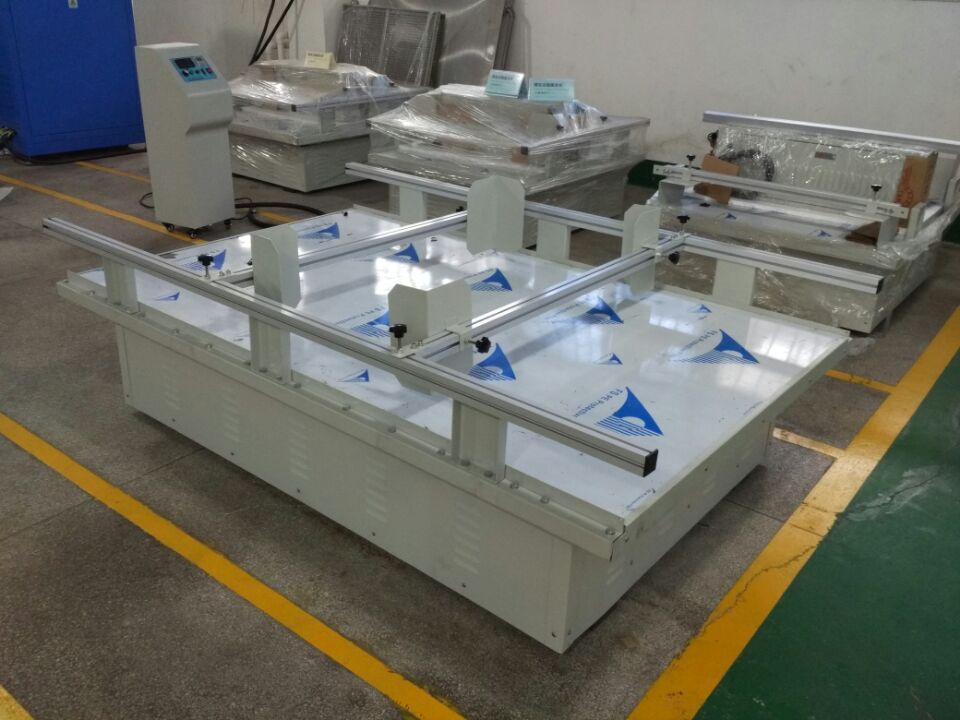

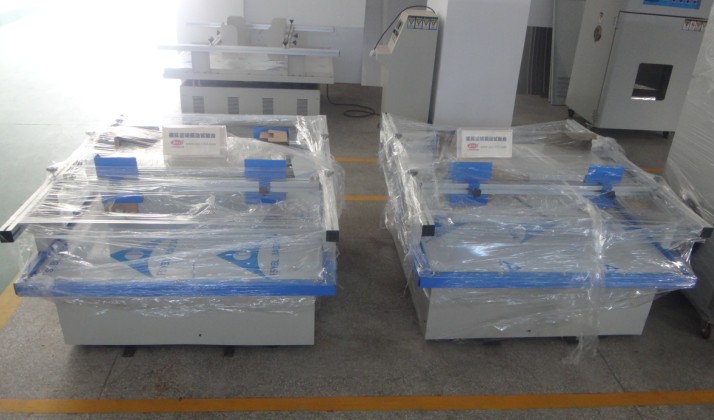

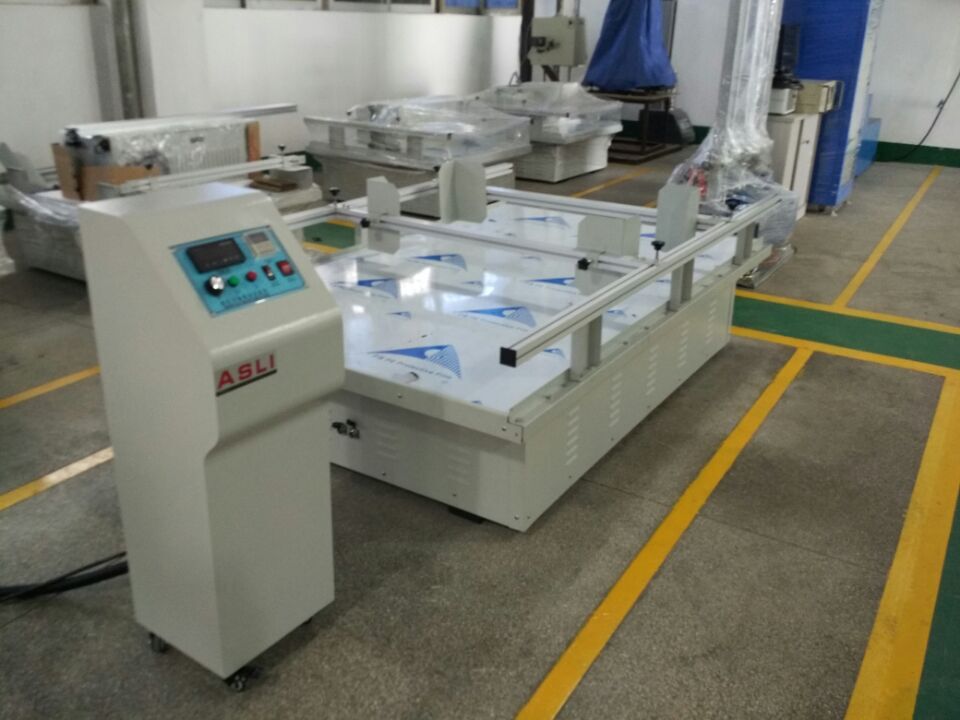

More Pictures:


Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. 150~300 RPM Carton Box Vibration Test, Transport Simulated Vibration Tester is our star products , and we had obtained the CE certification for this machine.
