Medicine Pill Press Machine PLC Touch Screen Tablet Press Equipment

Categories Tablet Press Machine
Brand Name: SED Pharma
Model Number: SED-420-17Y-A
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: Negotiable
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets Per Month
Delivery Time: 30 Days after receiving the deposit
Packaging Details: Wooden Case
Name: Medicine Pill Press Machine PLC Touch Screen Tablet Press Equipment
Model: SED-420-17Y-A
Max. pressure: 120KN
Max. tablet diameter: 40mm
Max.Thickness of Tablet: 8-14mm
Power supply: 380/220V/50Hz
material: stainless steel
key word: Tablet Press Machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Medicine Pill Press Machine PLC Touch Screen Tablet Press Equipment


Medicine Pill Press Machine PLC Touch Screen Tablet Press Equipment


Product Overview of Tablet Press Machine


The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods, electronics.


Technique Parameters

Model No.SED420-17Y-A
Punch Dies (stations)17
Max. Pressure (kn)120
Max. Tablet Diameter (mm)40
Filling Depth (mm)28
Max. Tablet Thickness (mm)8-14
Upper punch length(mm)175~192
Lower punch length(mm)
Max. rotation Speed (r/min)15rpm
Max. Production Capacity (pcs/h)15000pcs
Motor Power (kw)7.5kw/6grade
Overall Size (mm)1100*1250*1870
Weight (kg)2000

Features

1. The cover is made of stainless steel with close type. The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with organic transparent window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
5. It is equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.

Application of Tablet Press Machine

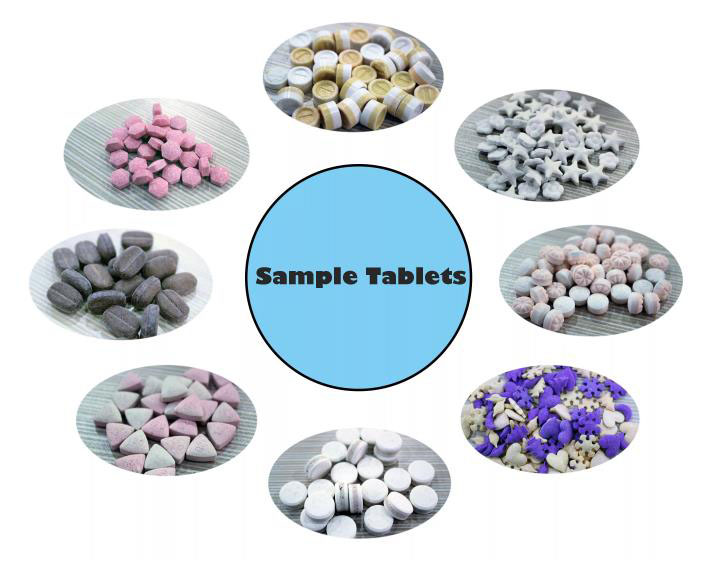

For compressing various shapes of tablets and plain tablets. Mainly used in the pharmaceutical industry and
Chemical, food and electronic industries.
