Tri Level Dimming HNP102 Daylight Sensor Switch 8mA

Categories Daylight Sensor Switch
Brand Name: hynall
Model Number: HNP102
Certification: RED, FCC, RoHS
Place of Origin: shenzhen
MOQ: 200pcs
Price: To be negotiated
Payment Terms: T/T
Supply Ability: 30000pcs per month
Delivery Time: 4 weeks
Packaging Details: box
Input voltage: 12V DC
Input current: ≥8mA
Output signal: 0~10V / PWM
Operation temperature: -20 ℃ ~ + 70 ℃ .
IP rate: IP20
Type: daylight sensor
Theory: Doppler
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

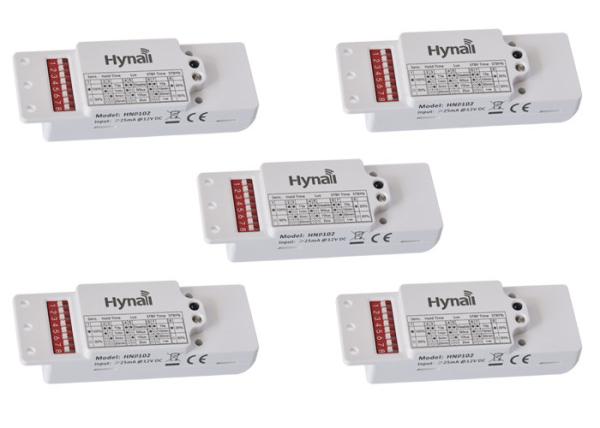

Tri Level Dimming HNP102 Daylight Sensor Switch 8mA

Microwave doppler sensor HNP102 daylight sensor with timer and tri-level dimming


Daylight sensor HNP102 with timer function and tri-level dimming control


Features:

1.Flexible to be integrated into any suitable fixtures.
2.Dual-processor technology.
3.Tri-level dimming and timer function integrated
4.Built-in timer
5.8 pin DIP switch seting
6.RoHS compliant.

Setting:


1. Daylight threshold

This is the threshold for the daylight sensor to switch on & off.

Lux on Lux off

5lux 25lux

10lux 40lux

25lux 60lux

50lux 90lux

100lux 200lux

Disable Disable


2. Timer period

This is the period for the lamp to keep 100% on when natural light 5 is below set threshold.
2h,4h,6h,8h,12h, disable


3. Dimming level

After the timer period, if the natural light is still insufficient, the lamp will drop to a pre-defined dimming

level. this dimmed level will sustain until the natural light becomes enough and the daylight sensor switch
off totally.

0%, 10%, 30%, 50%


Typical applica

tion


Setings for below scenario: At 7:00AM, when natural light becomes sufficient, the daylight sensor

automati-cally switch the fixture off.
