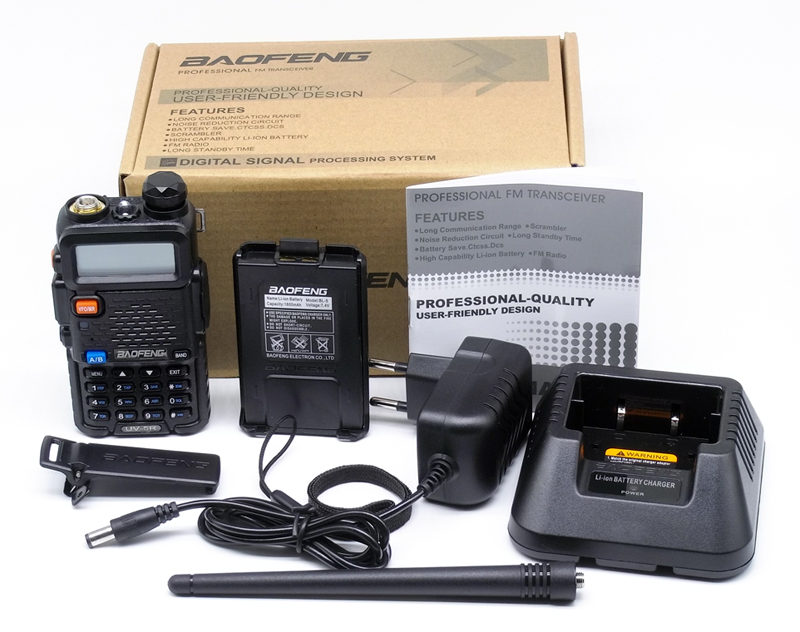

| Categories | Handheld Two Way Radio |
|---|---|
| Brand Name: | baofeng |
| Model Number: | UV-5R |
| Certification: | CE FCC Rohs Certificate |
| Place of Origin: | China |
| MOQ: | 50pcs |
| Price: | USD15.00 /piece |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000pcs / year |
| Delivery Time: | 3-5 days |
| Packaging Details: | carton box |
| Type: | Handheld |
| Dimensions: | 110x58x32mm |
| Storage channel: | 128 |
| Talk range: | 3-10km |
| Frequency range: | 136-174MHZ & 400-520MHZ |
| Output power: | 5W/1W |
| Color: | black |
| Battery capacity: | 1800mAh |
| Warranty: | 1 year |
| Weight: | 220g |
| Operating voltage: | DC7.4V |
FUNCTIONS AND FEATURES:
1) Output : 5W/1W
2) Frequency Range: 136.00-174.00 MHz
400.00-520.00MHz
3) Frequency Step Setting
4) High &Low Power Switchover
5) Battery Saving
6) VOX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Dual Band, Dual Display and Dual Standby
20) Emergency Alarm
21) Priory Scanning Function
22) Relay Forwarding Confirmed (1750 HZ)
23) Low Battery Warning
24) U/V Cross Band Dual Watch
Unity Section:
| Frequency Range: | 136.00-174.00 MHz |
| 400.00- 520.00MHz | |
| Storage Channel | 128 |
| Step Frequency | 2.5/5/6.25/10/12.5/20/25KHz |
| Rated voltage | DC 7.4V |
| Frequency Stability | ±2.5ppm |
| Work Temperature | -20 °C to +60°C |
| Battery Capacity | H-1800m Ah (Li-ion Battery) |
| Battery Life | About 12 Hours |
| Frequency Combination | PLL frequency synthesis |
| Antenna Impedance | 50 Ω |
| Wok Mode | Same Frequency simplex Operation or Different Frequency simplex Operation |
| Dimension | 110x58x32 mm (Excluded Antenna) |
Shipping terms
2-5 business days for Baofeng brand order, 10-15 business days for OEM order
|
