UV 6R UHF VHF Dual Band Two Way Radio with CE FCC Rohs Certificate

UV 6R UHF VHF Dual Band Two Way Radio with CE FCC Rohs Certificate

UV 6R UHF VHF Dual Band Two Way Radio with CE FCC Rohs Certificate
UV 6R UHF VHF Dual Band Two Way Radio with CE FCC Rohs Certificate
Categories Dual Band Two Way Radio
Brand Name: baofeng
Model Number: UV-6R
Certification: CE FCC Rohs Certificate
Place of Origin: China
MOQ: 2pcs
Price: USD18.00/piece
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs / year
Delivery Time: 3-8 days
Packaging Details: carton box
output power: 5W
Storage Channels: 128 channels
Frequency range: 136-174MHZ&400-520MHZ
Operating Voltage: DC7.4V
Dimensions:: 55x32x110mm(without antenna)
Applications:: Teaching,Sceurity,Training,Warehouse,Car
Contact Now
Company Info.
Xiamen Rongxiangrui Imp. & Exp. Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

UV 6R UHF VHF Dual Band Two Way Radio with CE FCC Rohs Certificate


UV 6R UHF VHF Dual Band Two Way Radio with CE FCC Rohs Certificate


Baofeng UV-6R The transcevier is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability

VHF/ UHF DUAL-BAND TWO WAY RADIO

  • Frequency Range: 136-174 / 400-520MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 5Watts
  • 128 Channels
    50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • Hight /Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET


Dual band, dual display, dual standbyA/B band independent operation
128 groups channels storageShortcut menu operation mode
VFO & Memory channels scanEmergency Alarm
Tri-color background light selectable0~9 grades VOX selectable
PTT & ANI IDFM radio and 25 stations storage
Voice compandingCTCSS/DCS
PC programmable
Wide/Narrow Band(25kHz/12.5kHz)Transmitter time-out timer(TOT)
High/Low TX power selectableBusy channel lock-out(BCLO)



Technical Specifications:

Item numberUV-6R
General
Frequency Range65-108MHz(FM Receive only)
136-174MHZ and 400-520HZ (TX/RX)
Channel No.128
Frequency Stability±2.5ppm
AntennaHigh gain DualBand antenna
Antenna Impedance50?
Operating VoltageDC 7.4V
Mode of operationSimple or semi-duplex
Dimension(W x H x D)100 x 52 x 32 mm
Weight250g(including battery, antenna)
Transmitter
Output power5W
Modulation Mode16k?F3E / 11k?F3E
Maximum deviation<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation<7?W
Adjacent Ch. power?-65dB(Wide) / ?-60dB(Narrow)
Pre-emphasis characteristics6dB
Current?1.6A(5W)
CTCSS/DCS deviation0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity8-12mv
Intermediation distortion<10%



Packing Content:

1x Baofeng UV-6R Dualband Radio 136-174MHz+400-520MHz
1x Dualband Antenna

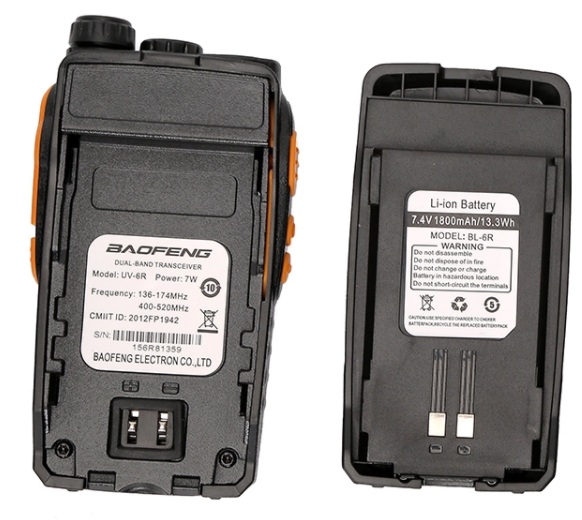

1x 1800mAh Li-ion Battery
1x Charger with Adaptor fit your country
1x Belt clip
1x English User manual
1x Hand strip
