Corrugated Corrugated Metal Roofing Machine , No Tooth Type Curving Roll Forming Machine

Categories Roofing Sheet Crimping Machine
Brand Name: NKH MACHINERY
Model Number: YX18-762
Certification: CE/SONCAP/CSA
Place of Origin: CHINA
MOQ: 1 UNIT
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 UNITS/MONTH
Delivery Time: 40 WORKING DAYS
Packaging Details: NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET
Raw material: pre-painted sheets, 245-550Mpa yield strength
Thickness: 0.4mm-0.6mm
Crimp diameter: 450mm
Direction: Vertical direction
name: sheet metal crimping machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

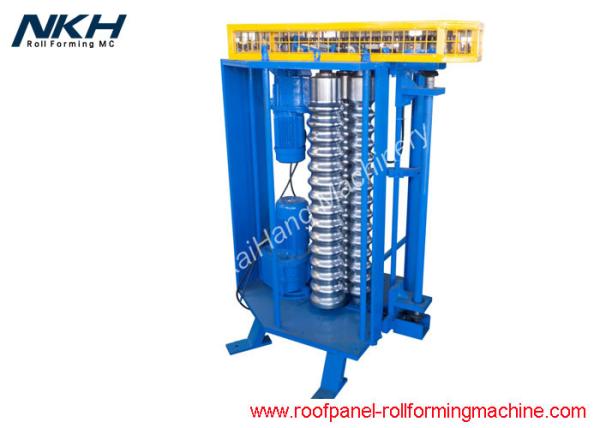

Corrugated Corrugated Metal Roofing Machine , No Tooth Type Curving Roll Forming Machine

Corrugated metal sheet smooth curving machine, no tooth type, motorized


Quick Detail:

  1. Thickness : 0.4-0.6mm
  2. Material : G550, PPGI
  3. Input width : 1220mm
  4. Effective width: 980mm

Application:

There are some curving panels with no crimping, especially corrugation curving sheets which provide better out looking. Hydraulic curving machines have been designed for automatic and continuous production of crimping curved roof panels or curved corrugation roof sheets under the control of PLC system.

Machine list:

  1. Feeding table with rubber rollers
  2. 2.2Kw driven motor
  3. Smooth curving rollers
  4. Vertical direction operation design
  5. PLC control systems

Description/Technical Parameter details of complete line:

  • details as below table :
Suitable roll forming materialColor steel sheet
Thickness0.4mm-0.6mm
Driven motor2.2Kw Driven motor
Carriage Frame designVertical direction
Roller materialGCr15, heat treatment, hard chrome coated
Curved Radius2500mm
Pressing diesFixed rollers
Electric Voltage Standard220V/60Hz/3PH or as the customer's requirements
Major Color of Machine PaintedRAL 5015(Blue) or as per customer’s requirements

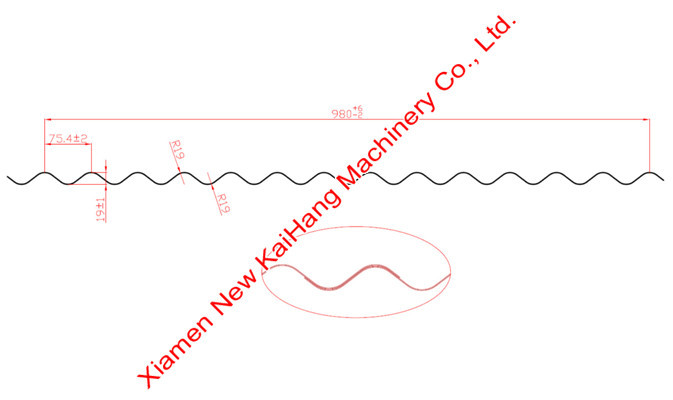

Profile Drawing/Layout/Equipment reference pictures:
