Rotary Positive Displacement Pumps With Stepless Speed Regulating Motor Reducer

Categories Rotary Lobe Pump
Model Number: 3RP50
Certification: ISO/SGS/CE
Place of Origin: China
MOQ: 1 Set
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 500sets/month
Delivery Time: 3-7 Work Days
Packaging Details: Plywood Case Package
Brand Name: Yuzhou
Production name: Rotary Lobe pump
Application: Honey,Chocolate
Power: Electric motor
Pressure: Low Pressure
Material: Stainless Steel 304/316/316L
Temperature: -30--+180 C
OEM/ODM: Yes
Warranty: One Year
Feature: High Efficiency
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

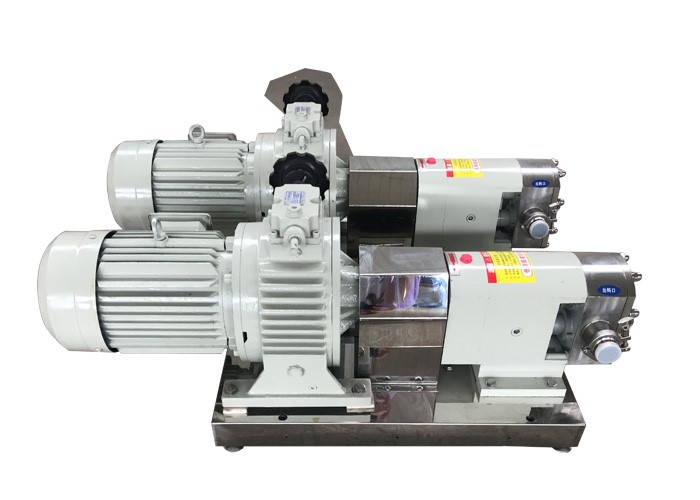

Rotary Positive Displacement Pumps With Stepless Speed Regulating Motor Reducer

3RP series high viscosity stainless steel food grade sanitary rotary lobe pump stepless speed regulating motor reducer


Brief introduction

3RP series Rotary Lobe Pump sanitary pump stainless steel pump belong to positive displacement pump and has the advantages of outstanding self-priming ability, high efficiency, and long life. It applies to delivering suspension liquid with soft solid particles, corrosive medium and suspension liquid. The delivered medium temperature range from -30~150℃ and viscosity range from 30cst to 1.0×105cst. The parts of contact with medium adopt stainless steel. The rotating speed can be adjusted according to the delivered medium's physical property.


Advantages:

  • Simple structure
  • Good performance
  • Reliable operation
  • High-temperature
  • Small volume,save cost

Application scope

1. Food industry:

Dairy products: yogurt, cream, ice cream, cheese and whey.
Beverages: beer, wort, yeast, soft drinks, fruit concentrates, fruit drinks.
Food: tomato sauce, vegetable paste, seasoning, sweeteners, yeast paste, salad, meat emulsion, edible oil.
Candy: syrup, cream stuffing, fruit puree, fruit filling, pudding, jam, jelly, chocolate.

2. Medicine industry: Pill, extract, emulsion, paste

3. Petroleum chemical industry: fats, solvents, resins and polymers, dyes


Performance scope of 3RP sanitary pump

1.Capacity:0.3-4.3m3/h;

2.Pressure:0.4-1.0mpa;

3.Motor power:0.55-22kw;

4.Temperature:-20-150degree;

5.Viscosity: 30cst ~ 1.0×105cst;

6.Speed:200-500rpm;

7.Material:stainless steel 304/316


Construction

3RP series Rotary Lobe Pump sanitary pump stainless steel pump is mainly composed of rotary lobe, shaft seal, Gear box. A pair of synchronous driving gear drive rotary lobe to deliver medium. The shaft seal can be designed with packing seal or mechanical seal according to specific working condition. The pump uses high strength, spiral gears and heavy load bearing in order to ensure the pump for long time.

You need not disassemble gearbox but adjust rotary lobe clearance because of special assembling way.

The material of “o” seal ring is the silicone rubber. To corrosive medium, PTFE is adopted.


ItemModelFlowPressureSpeedPowerPipe size
L/100rm3/hMparpmkwDN

1

3RP-661.80-1.210-5000.7520/25

2

3RP-992.60-0.610-5001.125/32

3

3RP-18184.30-0.210-4001.532/50

4

3RP-36368.50-0.610-4002.250/65

5

3RP-606014.30-0.610-400465/80

6

3RP-105105250-1.210-4001180/100

7

3RP-150125/250350-0.610-40018.5100/125

8

3RP-250250450-0.610-40022125/150
