Anti - Explosion Rechargeable Led Headlamp IPX5 For Zone1 Zone 2 Hazardous Areas

2W Anti-explosion IPX5 80g LED Headlamp for Zone1 Zone 2 Hazardous Areas

Product Introduction

1. Product Name: Explosion-proof LED Headlamp

2. Product No.: DSFG-H1

3. Explosion-proof Mark: II 2G Ex ib op IIC T4 Gb

4. Product Standard:IEC 60079-0:2017, IEC 60079-11:2012, IEC 60079-28:2015

5. Explosion-proof Certificate: IECEx Certificate

6. Certification Authority: DNV.GL NB:2406

7. Certification No.: IECEx PRE 19.0006X

Specification

Application

The Explosion-proof LED Headlamp mainly using in Zone 1, 2, II A, II B, II C Class T1~T4 explosive gas atmosphere and for lighting purposes.

Mainly applied to railway, electricity, ships, oil field, metallurgy, troops, public security, petrochemical enterprise and other combustible and explosive areas.

The Headlamp can work reliably under the following conditions:

● Altitude does not exceed 2000m;

● Ambient temperature: -20 ~ +55℃;

● (When the temperature is at + 25 ℃) Air relative humidity no more than 95%;

● Using in Zone 1, 2, II A, II B, II C Class explosive gas atmosphere;

● In a non-destructive insulating gas or vapor environment;

● In the absence of liquid immersion.

3D Drawings

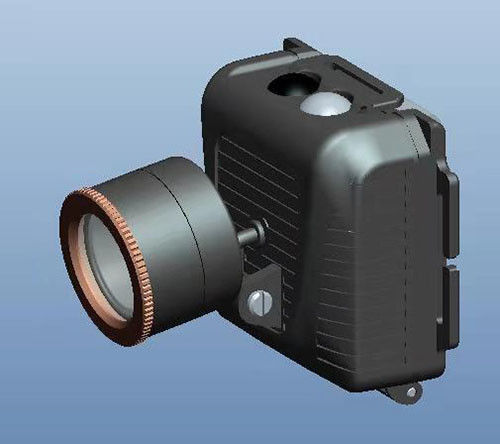

1. Front

2. Side

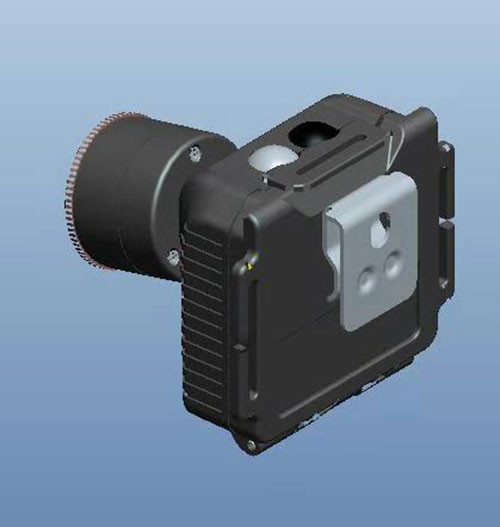

3. Back
