Stainless Steel Wire Mesh for Chemical Electron Filter Battery Electrode in stock.factory direct sale filter wire mesh

Stainless Steel Wire Mesh for Chemical Electron Filter Battery Electrode in stock.factory direct sale filter wire mesh

Stainless Steel Wire Mesh for Chemical Electron Filter Battery Electrode in stock.factory direct sale filter wire mesh
Stainless Steel Wire Mesh for Chemical Electron Filter Battery Electrode in stock.factory direct sale filter wire mesh
Categories Stainless Steel Woven Wire Mesh
Place of Origin: Hengshui,China
MOQ: 2 Rolls
Price: 50-400 us dollar/roll
Supply Ability: 50000 Square Meter/Square Meters per Day
Delivery Time: If we have in stock,10 days.For the product need to produce,according to order quantity,need to calculate
Packaging Details: packed with water-proof paper, woven bag and also can be made as per client's requirement.
Material: Stainless steel wire
Hope shape: Square or rectangular
Type: Weave Wire Mesh
Wire gauge: 0.025--2.0mm
Roll width: 0.914m, 1m, 1.2m etc
Roll length: 30m or as required
Technique: Woven
Packing: Wooden Case
Contact Now
Company Info.
Anping tenglu metal wire mesh co.,ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Stainless Steel Wire Mesh for Chemical Electron Filter Battery Electrode in stock.factory direct sale filter wire mesh

Stainless Steel Wire Mesh for Chemical Electron Filter Battery Electrode in stock.factory direct sale filter wire mesh


Stainless Steel wire mesh is widely used in mining,chemical,food, oil,medicine,machinery, and other industires ,mainly used in gas ,liquid filtration and other media separation, used in acid and alkali environment screening and filtration, electroplating industry to do acid cleaning network.


Material: SUS304,SUS304L,SUS316,SUS316L

Weaving method: plain weave,twilled weave,dutch weave.

Uses : extensively used in mining,chemial industury,food industury and pharamaceutial industury.

characteristics:Acid reistance ,Alkali resistance,heat resistance,corrosion resistance


Specification:
Wire diameter: 0.025mm-2.0mm
Mesh:2mesh-600mesh
Width: 0.5m-8m
Length of standard: 30m

Any size avalible as the requiements of the customer.

packing:waterproof paper inside, plastic film outside, then pallet or wooden box.

part of detailed specification:

Specification List of Stainless Steel Wire Mesh
Mesh/InchWire Gauge(SWG)Aperture in mm
3mesh x 3mesh146.27
4mesh x 4mesh164.27
5mesh x 5mesh183.86
6mesh x 6mesh183.04
8mesh x 8mesh202.26
10mesh x 10mesh201.63
20mesh x 20mesh300.95
30mesh x 30mesh340.61
40mesh x 40mesh360.44
50mesh x 50mesh380.36
60mesh x 60mesh400.30
80mesh x 80mesh420.21
100mesh x 100mesh440.172
120mesh x 120mesh440.13
150mesh x 150mesh460.108
160mesh x 160mesh460.097
180mesh x 180mesh470.09
200mesh x 200mesh470.077
250mesh x 250mesh480.061
280mesh x 280mesh490.060
300mesh x 300mesh490.054
350mesh x 350mesh490.042
400mesh x 400mesh490.0385
500mesh x 500mesh500.0273
Roll width: 2'-8'
Chemical composition of stainless steel wire:
AISI
Grade		Chemical Composition(%)
C
Si
Mn
P
S
Ni
Cr
Mo
304
=0.08
=1.00
=2.00
=0.045
=0.030
8.00~10.50
18.00~20.00
-
304H
>0.08
=1.00
=2.00
=0.045
=0.030
8.00~10.50
18.00~20.00
-
304L
=0.030
=1.00
=2.00
=0.045
=0.030
9.00~13.50
18.00~20.00
-
316
=0.045
=1.00
=2.00
=0.045
=0.030
10.00~14.00
10.00~18.00
2.00~3.00
316L
=0.030
=1.00
=2.00
=0.045
=0.030
12.00~15.00
16.00~18.00
2.00~3.00
430
=0.12
=0.75
=1.00
=0.040
=0.030
=0.60
16.00~18.00
-
430A
=0.06
=0.50
=0.50
=0.030
=0.50
=0.25
14.00~17.00
-
Sizes of Stainless Steel Wire:
Wire Diameter(mm)Tolerance(mm)Max. Deviation Tolerance(mm)
0.020-0.049+0.002
-0.001		0.001
0.050-0.0740.0020.002
0.075-0.0890.0020.002
0.090-0.109+0.003
-0.002		0.002
0.110-0.1690.0030.003
0.170-0.1840.0040.004
0.185-0.1990.0040.004
0.200-0.2990.0050.005
0.300-0.3100.0060.006
0.320-0.4990.0060.006
We can supply other specifications according to the customer's requirement.
Special size and specification are available according to customers requirment.




About us

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen

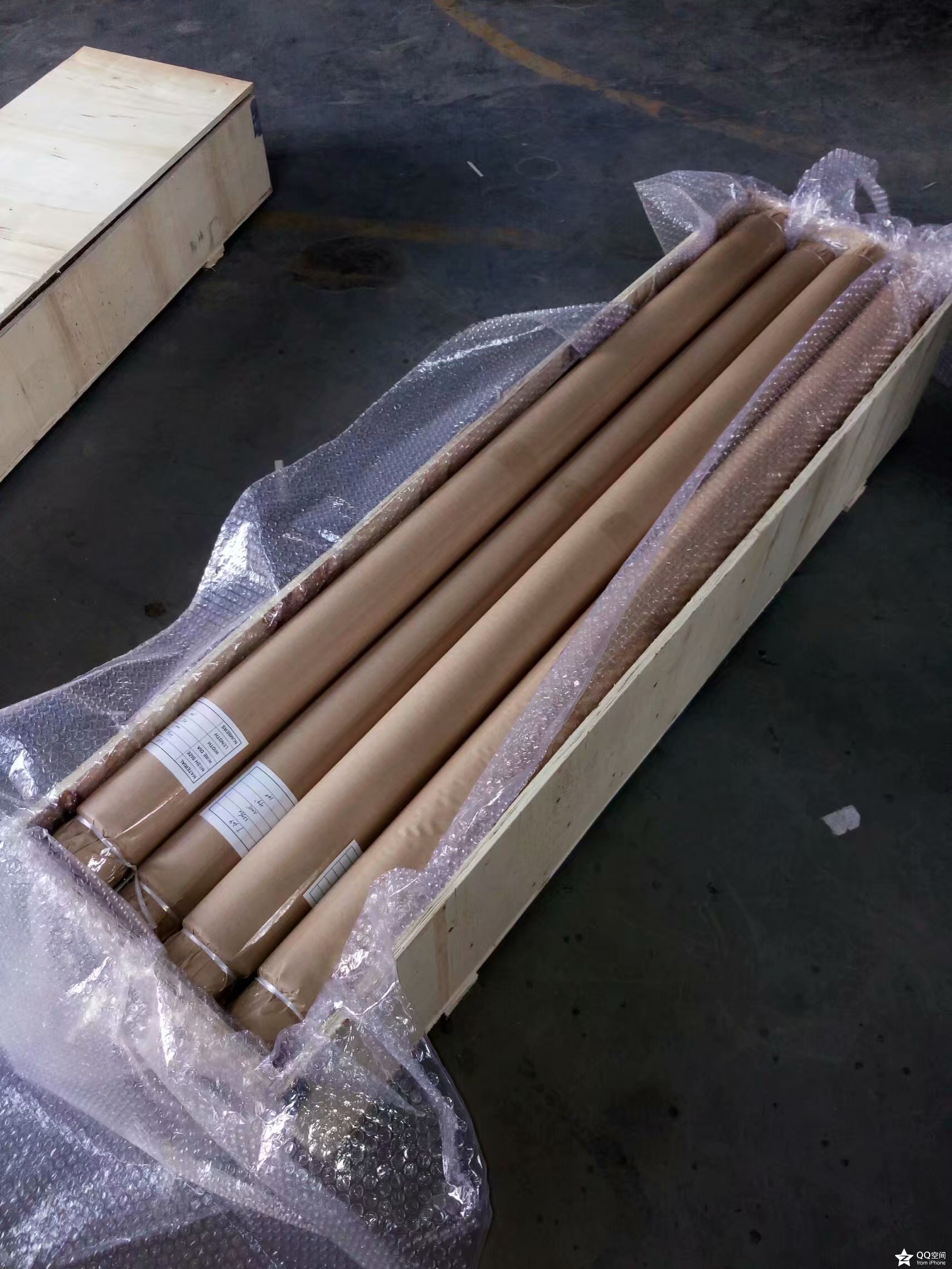

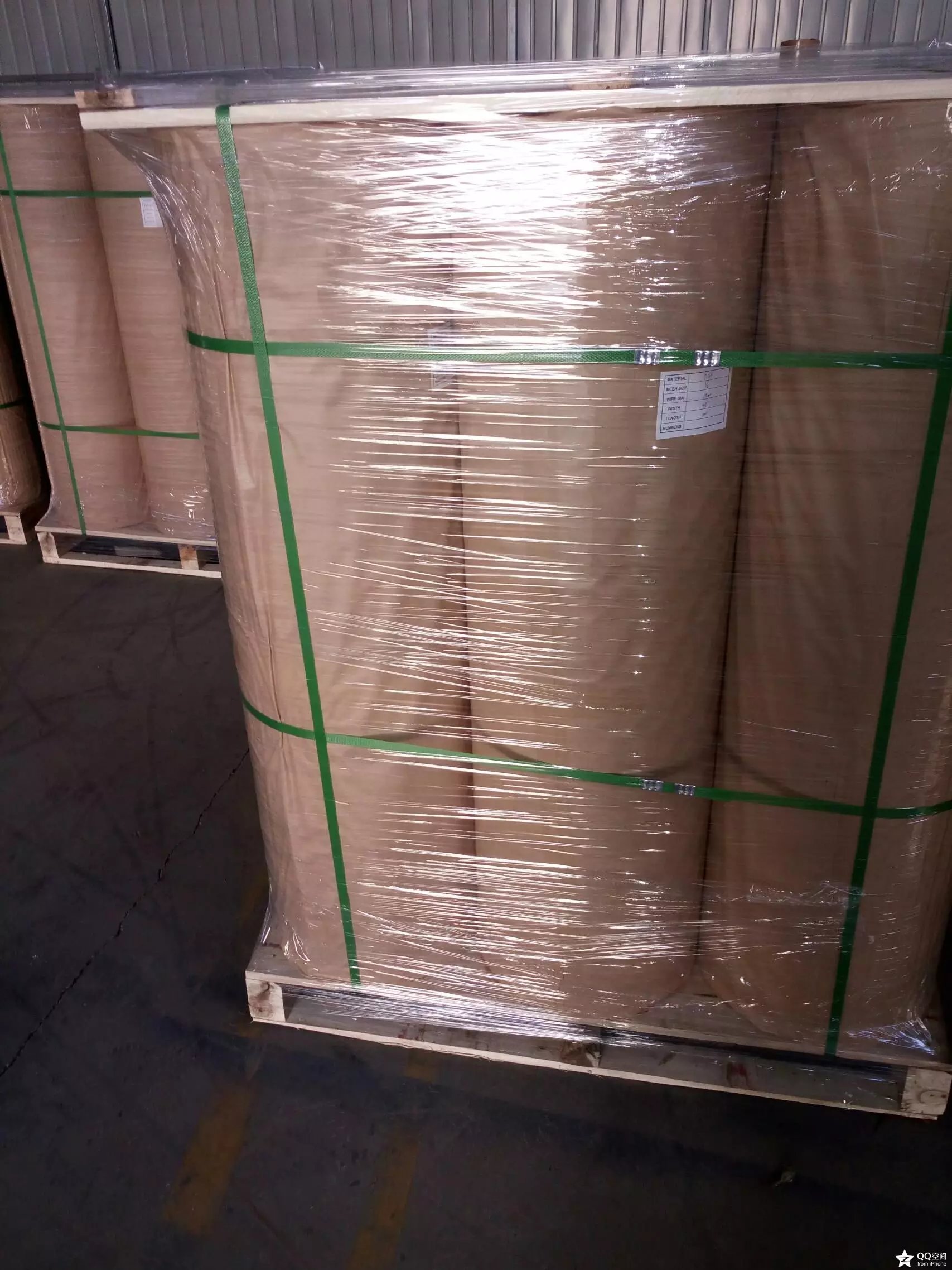

Packing of stainless steel woven wire mesh
