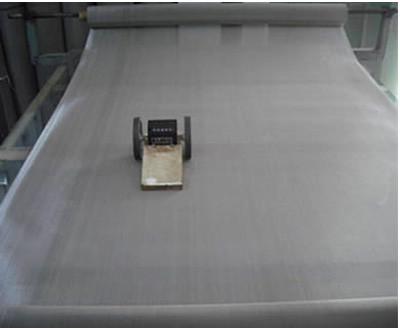

Sus 304 Stainless Steel Woven Wire Mesh Square Hole For Oil Water Filtering Products

Ultra fine sus 304 stainless steel wire mesh screen for oil water filtering products,square hole wire mesh

introduce of 304 306 316 stainless steel wire mesh for filter(In stock) :

Material: SUS304N/304HPS/316L stainless steel wire

Weave Type: plain

Wire Diameter: 20 micron

Aperture: 68 micron

Thickness: 43-44 micron

Feature of 304 306 316 stainless steel wire mesh for filter(In stock) :

High tension,
high precision,
low elongation,
high yield strength,
high wear resistance,
static electricity,
thermal resistance,

Uses: Stainless steel wire mesh is used for mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries.
We can produce all kinds of stainless steel wire mesh, including stainless steel square wire mesh and stainless steel twilled woven mesh. Stainless steel wire mesh with its anti-wearing, heat resistance, acid resistance and anti-corrosion properties, is used popularly for mining, chemical industry, food industry, the pharmaceutical industry and many other fields.

Features:

Corrosion resistance.
Anti-acid and alkali
Anti-high temperture.
Good filter performance.
Long using life

Detail specification

Specification:

Size

Meshes per linear inch	Wire diameter		Width of opening		Open area percent	Weight-Pounds per 100 Sq.ft.
Meshes per linear inch	lnches	mm	lnches	mm	Open area percent	Weight-Pounds per 100 Sq.ft.
1χ1	0.157	4	0.84	21.4	71	110.97
3χ3	0.079	2	0.25	6.4	58	82.45
4χ4	0.063	1.6	0.187	4.75	56	104.8
5χ5	0.055	4.1	0.14	3.68	52	68.25
8χ8	0.043	1.1	0.08	2.08	42	66.83
10χ10	0.02	0.51	0.08	2.03	64	26.1
12χ12	0.023	0.584	0.06	1.52	51.8	42.2
14χ14	0.023	0.584	0.048	1.22	45.2	49.8
16χ16	0.018	0.457	0.0455	1.13	50.7	34.5
20χ20	0.016	0.406	0.034	0.86	46.2	34.4
30χ30	0.012	0.305	0.0213	0.54	40.8	29.4
40χ40	0.01	0.254	0.015	0.38	36	27.6
50χ50	0.08	0.203	0.012	0.31	36	22.1
60χ60	0.0075	0.191	0.0092	0.23	30.5	23.7
80χ80	0.0055	0.14	0.007	0.18	31.4	16.9
100χ100	0.0045	0.114	0.0055	0.14	30.3	14.2
100χ100	0.004	0.102	0.006	0.15	36	11
100χ100	0.0035	0.089	0.0065	0.17	42.3	8.3
110χ110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120χ120	0.0037	0.094	0.0046	0.1168	30.7	11.6
150χ150	0.0026	0.066	0.0041	0.1041	37.4	7.1

About us

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen

Product Tags:


*From:	Your email address is incorrect!
*To:	Anping tenglu metal wire mesh co.,ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Stainless Steel Woven Wire Mesh
Place of Origin:	Hengshui,China
MOQ:	2 Rolls
Price:	50-400 us dollar/roll
Supply Ability:	50000 Square Meter/Square Meters per Day
Delivery Time:	If we have in stock,10 days.For the product need to produce,according to order quantity,need to calculate
Packaging Details:	packed with water-proof paper, woven bag and also can be made as per client's requirement.
Material:	Stainless steel wire
Hope shape:	Square or rectangular
Type:	Weave Wire Mesh
Wire gauge:	0.025--2.0mm
Roll width:	0.5m to 6m
Roll length:	1-30m or as per requirement
Technique:	Woven
Feature:	Alkali- resisting
