Smooth Running Hydraulic Piston Motor For Windlass / Crane Customized Color

Categories Hydraulic Piston Motor
Brand Name: Helm Tower
Model Number: MS18/MSE18
Certification: ISO 9001
Place of Origin: Ningbo
MOQ: Negotiation
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Delivery Time: 7-15 working days
Packaging Details: Standard Export Wooden Case
Type: piston motor
Color: customized
Speed range: 0-90 r/min
Torque range: 7650-9200 N. m
Rated pressure: 25MPa
Max pressure: 40MPa
Material: steel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Smooth Running Hydraulic Piston Motor For Windlass / Crane Customized Color


Hydraulic Motor Poclain Ms18 for Windlass/ Crane


Poclain MS18/MSE18 Hydraulic Motor:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( Backhoe loader, explosion-proof forklift, forklift), Mining Machinery( Mini road header, heavy duty handing car, coal mine drill), Marine Machinery(windlass, crane), etc.
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( Backhoe loader, explosion-proof forklift, forklift), Mining Machinery( Mini road header, heavy duty handing car, coal mine drill), Marine Machinery(windlass, crane), etc.

Specifications:

TypeMS18-8MS18-9MS18-0MS18-1MS18-2
Displacement(ml/r)FullSemiFullSemiFullSemiFullSemiFullSemi
139569715717851747873191195520991049
Max power(kw)62426242624262426242

Pressure discrepancy

10MPa Torque (N. m)

2085102223481151261112792856140031371537
Rated torque(N. m)52125870652871407843
Rated pressure(MPa)2525252525
Max pressure(MPa)4040403535
Rated speed(r/min)5555555550
Speed range(r/min)0-1500-1500-1500-135

0-125

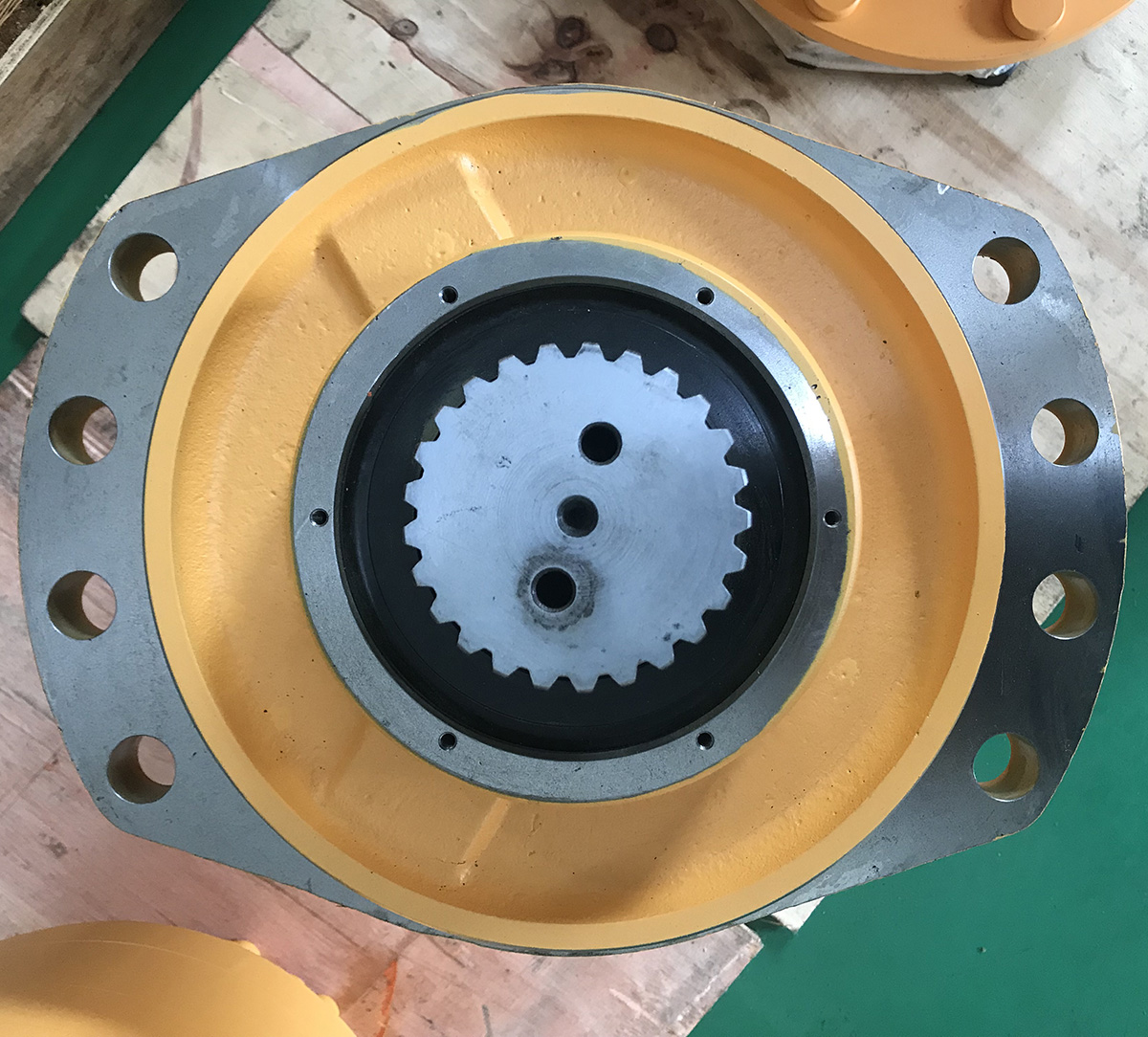

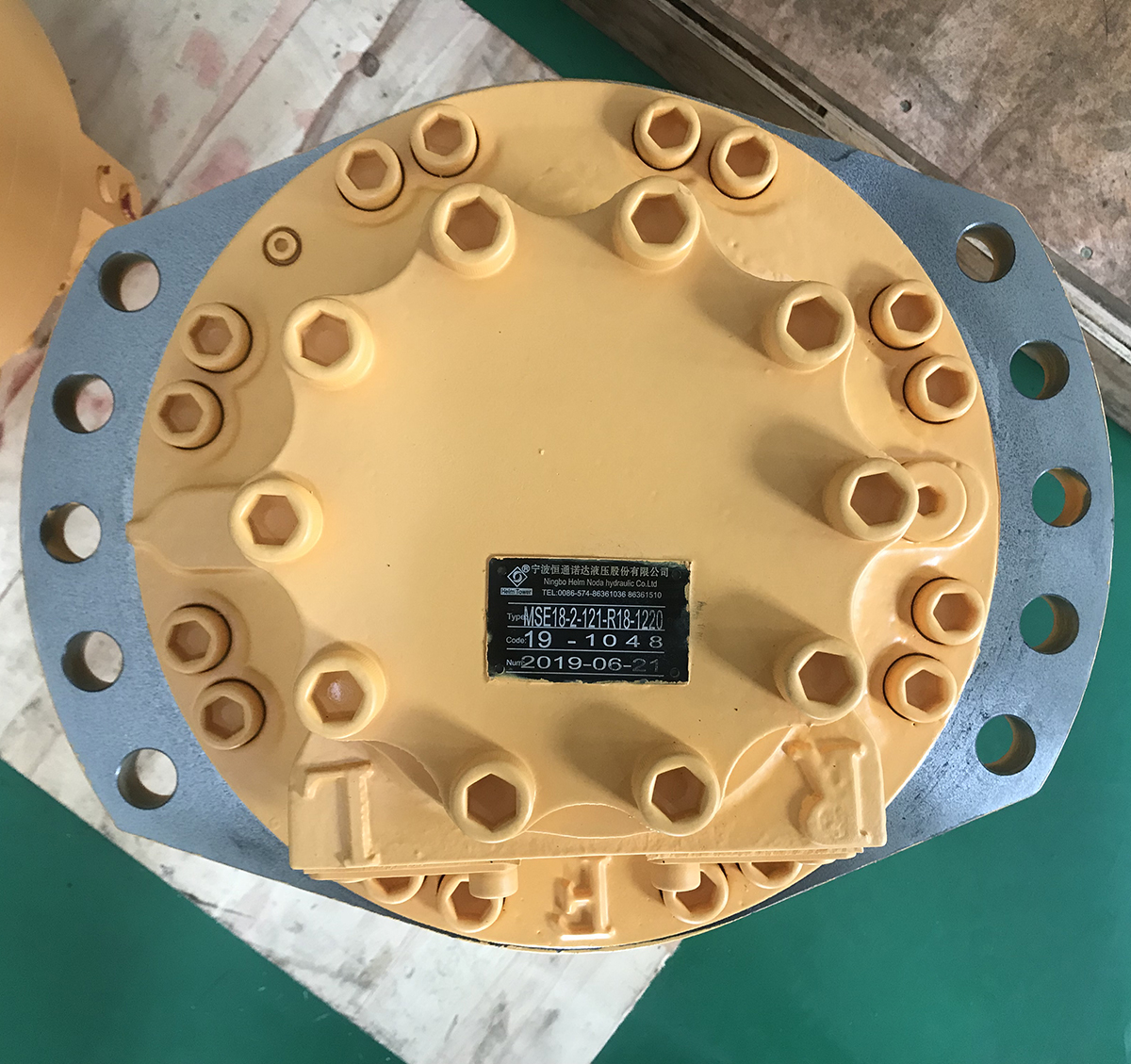

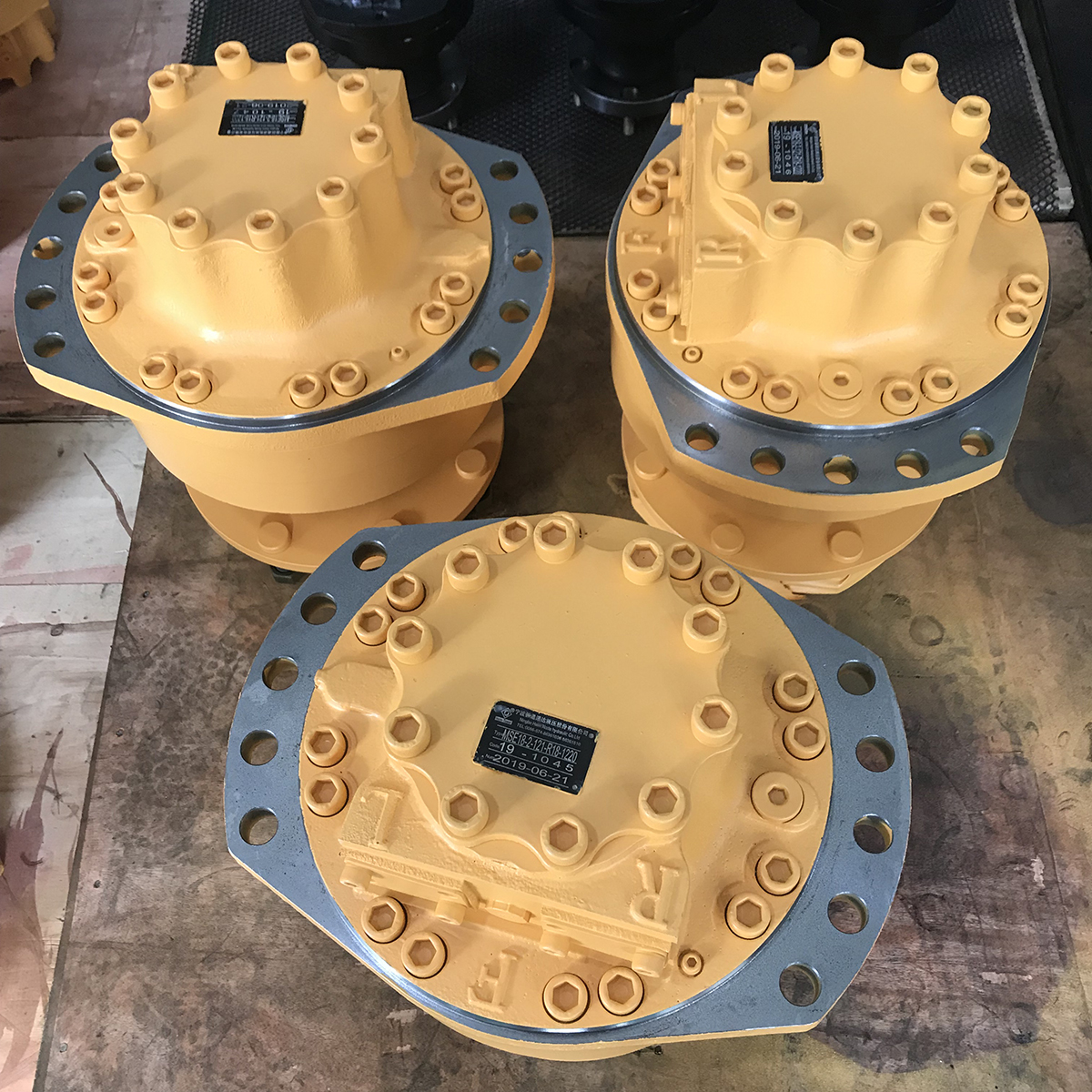

Product Images:

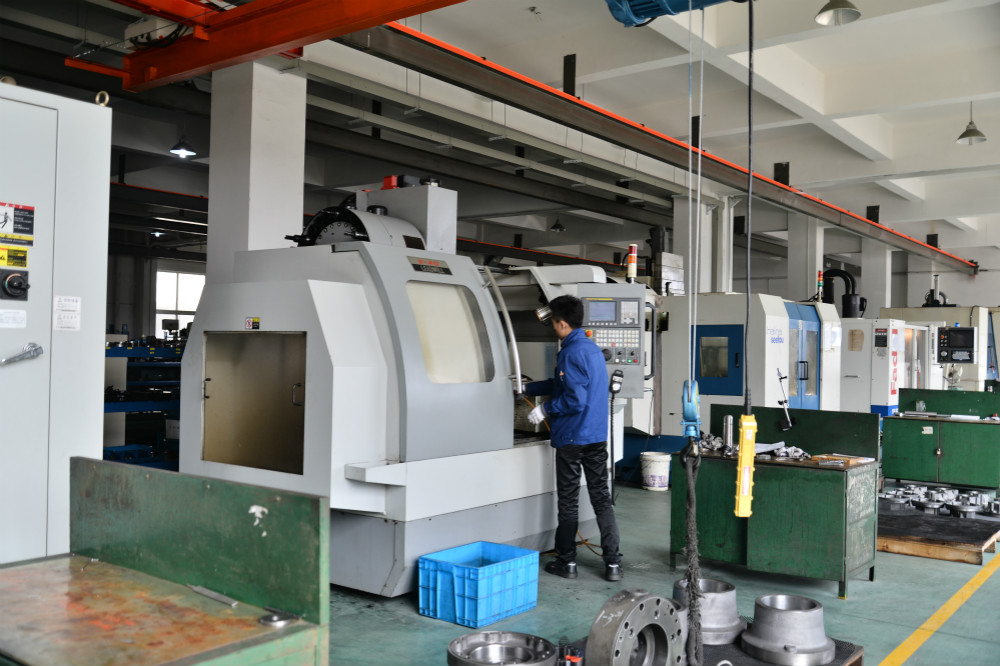

Our Company
