High Frequency Omni Directional Antenna / SMA Female Adapter Vertical Type

Categories Omni Directional Antenna
Brand Name: CSCE
Model Number: SC1-SMA0000041
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin: Shenzhen,China
MOQ: 500pcs
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 150K pcs/day
Delivery Time: 7-10 days
Packaging Details: Tray in Carton
Vswr: ≤1.5
Impedance: 50 Ohm
Type: vertical
Product name: sma female adapter
Frequency Range: 0-6Ghz
Body Material: Brass
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Frequency Omni Directional Antenna / SMA Female Adapter Vertical Type

50 Ohm High Frequency Antennas SMA Female Quick Adapter Connector

Quick Details:


Specification:AntennasCross Part NO:SC1-SMA0000041
Sample:Available 20-3 PcsMounting:solder

Product Specification:


Working Voltage

335 VRMS max

Center Contact6 Milliohms max
Impedance50 ohm
Dielectric Withstanding Voltage

500 VRMS min

VSWR

1.5max

Frequency Range

0-6 GHz


Outer Contact2 Milliohms max
Insulator Resistance5000 Megohms min

Product Material:


Crimp FerrulesAnnealed BrassGold 3 micro-inches
InsulatorsTeflonNone
Clamp GasketsSilicone rubberNone
Body,Metal PartsBrass per QQ -B-626Gold 3 micro-inches
MaleBrass per QQ-B-626Gold 30 micro-inches
FemaleBeryllium copper per QQ-C-530Gold 30 micro-inches

Our Team


We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.


Competitive Price And Service


• Provide New Design For Customer Requirements

• Delivery Time:2-3 Weeks After Orders

• Free Samples Are Available


FAQ


1. How can i get a sample?

A: just check with our sales.


2. How to develop a new product base on an idea?

A: Tell us what you want, Then we will design it for free.


3. How about OED,ODM?

A: 14 years experiences in OEM,ODM.


4. How to reduce your risk?

A: Check the sample before order.


5. How about the after-sale service?

A: Just tell us the problem after you receive the products.

Then we’ll help you deal with it together.

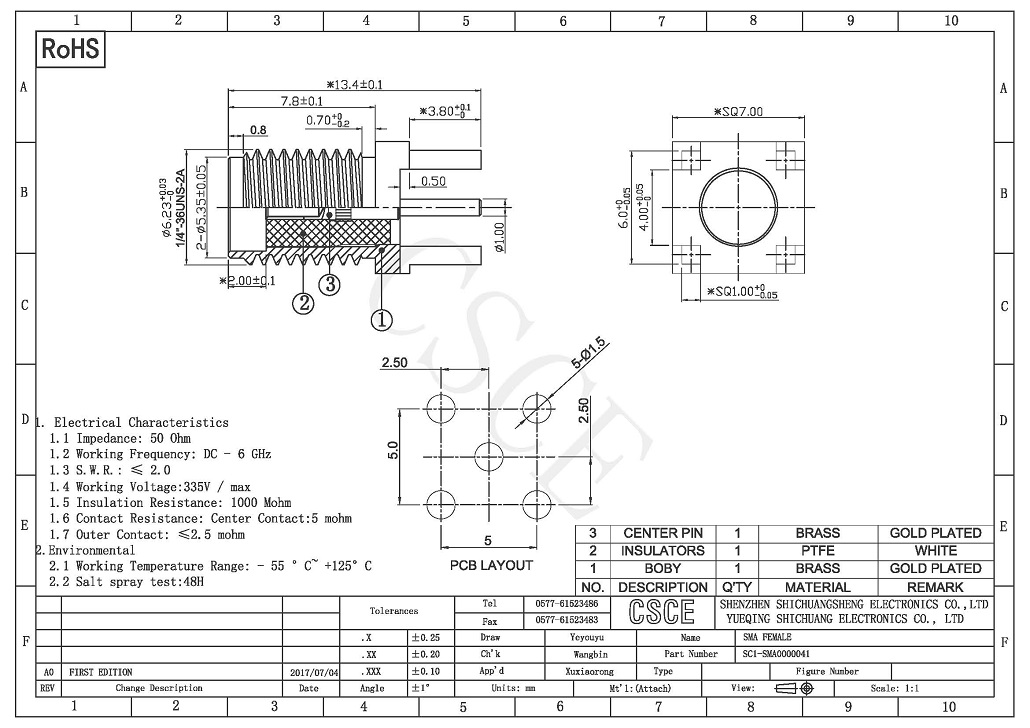

Product Drawing:


Cheap High Frequency Omni Directional Antenna / SMA Female Adapter Vertical Type for sale
