Wireless Tire Gauge TPMS Tire Pressure Monitoring Sytsem Solar Power TPMS Sensor

Categories Tyre Pressure Monitoring System
Brand Name: Yoelbaer or OEM
Model Number: YB069
Certification: CE ROHS
Place of Origin: China
MOQ: MOQ : 30PCS
Price: USD 28/Set - USD 32/Set
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500pcs/week
Delivery Time: 3-5 working days for mass order, samples have in stocks,
Packaging Details: Neutal color box, box size : 18.6X13.2X5 cm 0.3kg/set/ external sensors, 0.4kg/set/internal sensors
Name: TPMS Tire Pressure Monitoring System
Pressure range: 0-99psi/ 0-116psi
Product name: tpms
Working temperature: -30°C-85°C
Chip: Infineon
Type: solar car tpms
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Wireless Tire Gauge TPMS Tire Pressure Monitoring Sytsem Solar Power TPMS Sensor

Wireless Tire Gauge TPMS Tire Pressure Monitoring Sytsem Solar Power TPMS Sensor


Descriptions:
Many accidents are caused by the flat tyre on the highway. As a car owner, the safety of driving is the first thing.

To reduce such accidents, the installation of tire pressure monitoring system (TPMS) is necessary.

With the TPMS, we can keep the tyre working within the specified pressure and temperature range at any time to reduce the damage of the tyre for safe driving.

Wireless Tire Gauge TPMS Tire Pressure Monitoring Sytsem Solar Power TPMS Sensor

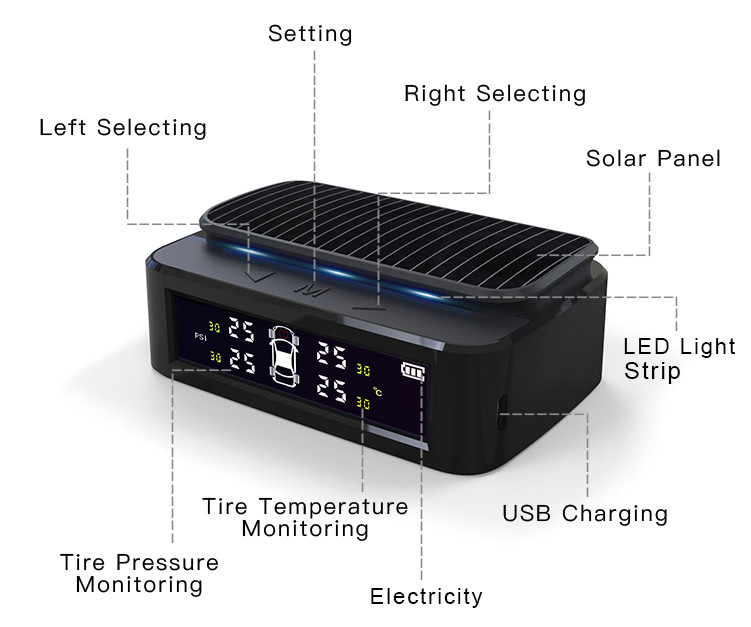

Monitor Specification
1. Operating Voltage3.7-5v
2. Storage Temperature-30℃-90℃
3. Working Temperature-30℃-85℃
4. RF Emission Frequency433.92MHZ+/-50MHZ
5. Monitor ModeLCD Color Display
6. Working Pressure0-116 PSI(Freescales) 0-72PSI(Infineon)
7. Bright Operating Current≤6mA
8. Black Operating Current≤4mA
9. Size95*83*75MM
10. ChipInfineon chip (Import from Germany)
11. Use time/cycle10-15days after get full charged
12. Factory Default Pressure26-46 PSI
13. Solar Panel Battery Capacity400 ma
10. NW0.3KG
11. GW0.36KG

External Sensor Specification

1. Battery Life24months
2.Operating Voltage3v
3. Storage Temperature-30℃-90℃
4. Working Temperature-30℃-85℃
5.Temperature Resolution+/-2℃(25℃)
6. Pressure Range0-7.0Bar
7. Waterproof GradeIP67
8. Transmitted Power≤10dBm
9. Transmitted Frequency433.92MHZ
10. Size21*17mm
11. Weight9g
12. Lithium BatteryCR1632
CertificationCE ROHS
Aging testfull 72hours
QC Test100% full inspection before shipping out
HS Code

9026209090


Features:
- Powerful TPMS:
1.Tyre pressure monitorin
g system (TPMS) can monitor the tyre pressure/temperature status in real time,

which will transmit real-time voice alarm and flash warning iron to remind the driver for the comfortableness of vehicle and driving safety.
2.Displays tire pressure and temperature simultaneously.
3.Air leakage warning, low pressure warning, high pressure warning.
4.High temperature warning,low power warning, no signal warning.

- Wide application:
This system is widely suitable for vehicle with 4 tyres and the maximum pressure of the tyre is below 8 bar,
such as the commercial car, jeep, off-road vehicle, minibus, and sedan car, etc.

- Digital display:
LCD screen, with the bright backlight and clear data, allows you to know the status of your car easily and comfortably.

- Power supply:
It supports solar charging and USB charging, which means our TPMS device can be used in all weathers, rather convenient.

- 4 external sensors:
We provide 4 sensors, which are suitable for using on rainy days. Besides, they are in high sensitivity and good accuracy for measuring pressure and temperature.



Cheap Wireless Tire Gauge TPMS Tire Pressure Monitoring Sytsem Solar Power TPMS Sensor for sale
