Small Sealant Dispensing Equipment , High Pressure Silicone Extruder Machine,sealant speading machine

Categories Sealant Extruder
Brand Name: Lijiang-Glass
Model Number: Sealant-spreading machine LJST03
Certification: CE
Place of Origin: Jinan China
MOQ: 1 set
Price: Negotiable
Supply Ability: 30 sets per year
Delivery Time: 10-15 days
Packaging Details: Seaworthy Package
Name: sealant speading machine
Sealant volume: 4L/min
Working air pressure: ≥0.6MPa
Sealent spreading pressure: 15-20MPa
Diameter of A/B sealant: 570mm/280mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Small Sealant Dispensing Equipment , High Pressure Silicone Extruder Machine,sealant speading machine

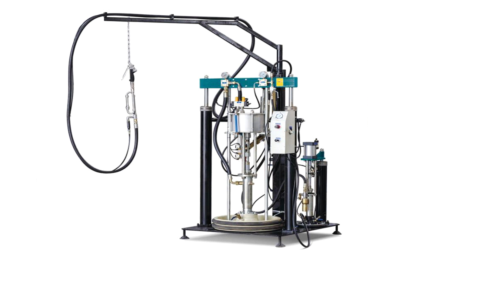

Sealant-spreading machine LJST03


APPLICATION


This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.


Main feature

  • Use cylinder to provide power
  • China sealant gun,stainless steel mixer
  • High pressure protect device
  • Anti-back flow control structure
  • Mixed rate detector can control the rate of two kinds of glue

Technical data


Working air pressure0.3-0.6MPa
Sealant spreading pressure15-20MPa
Sealant volume4L/min
Diameter of A/B sealant570mm/280mm
Sealant spreading air pressure ratio50:1
Mixed rate6:1-14:1
Air supplyFlow 0.8m3/min
Air pressure≥0.8MPa
Overall dimension1100*950*1630mm

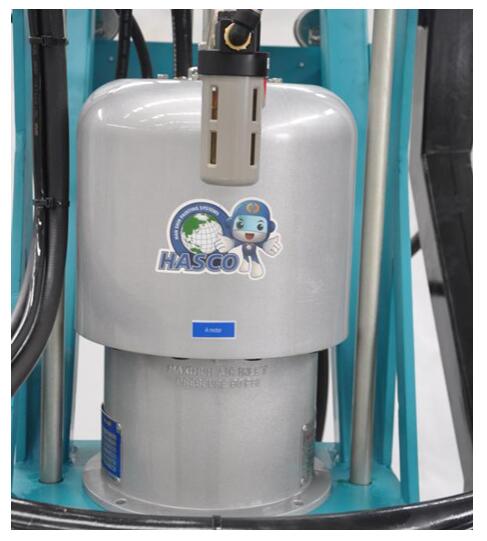

1,Min motor

Adopted Korea HASCO to improve equipment efficiency.

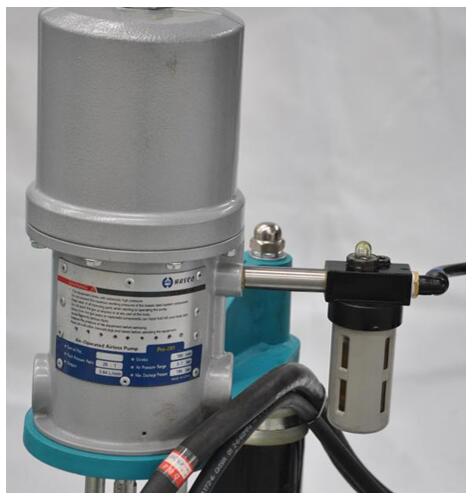

2,B motor

Adopted Korea HASCO to improve equipment efficiency.

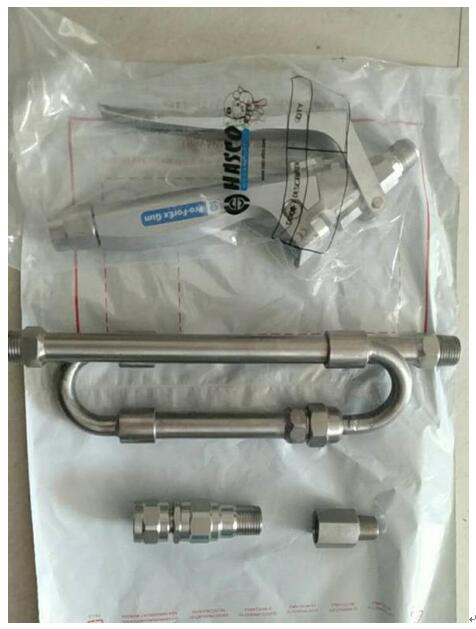

3,Sealant gun
We adopted the Sealant gun from Korea HASCO.
Stainless steel mix pipe and hybrid mandrel,easy to clean glue.

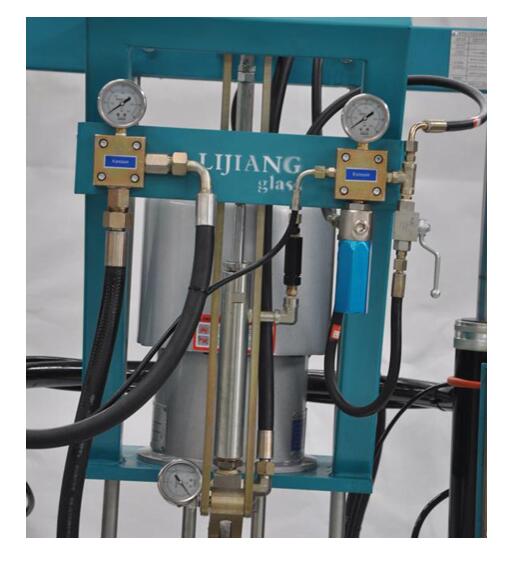

4,Proportional pump & Safety valve

Special check valve in the pump to make sure extrude glue fluently and avoid incomplete mixing.

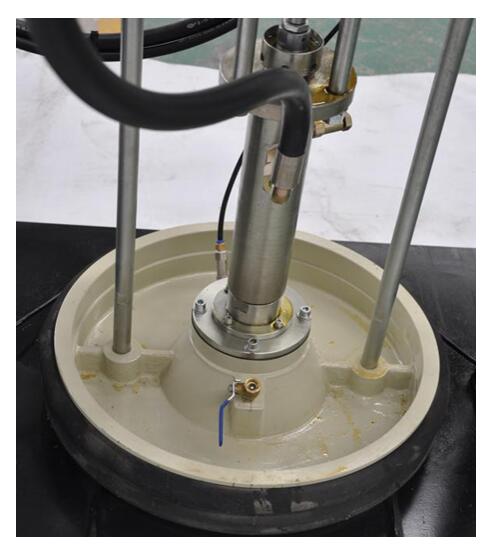

5,Glue bucket

Gluing evenly without bubbles.


Cheap Small Sealant Dispensing Equipment  , High Pressure Silicone Extruder Machine,sealant speading machine for sale
