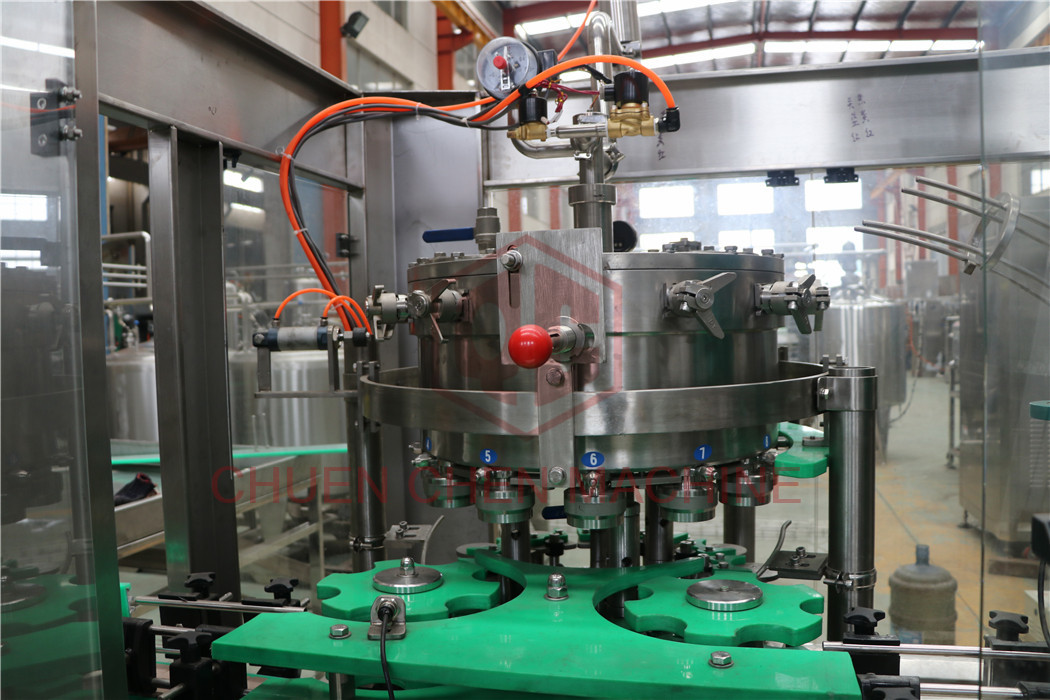

Stable Lemon And Juice Flavor Beverage Can Filling Machine With Compact Structure

Stable Lemon and Juice Flavor Beverage Can Carbonated Drink Filling Machine

DOWNLOAD VIDEO LIST Video link in youtube.pdf

Video link

Machine description

The machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling carbonated drink, mineral water and purified water in bottles made of polyester and plastics. The Machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently Turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling Operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to Adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. It is Convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling Parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass Bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage makers

Flat conveyor

1.Stable conveying, using synchronous chasing control between the conveying belt and
engine, making bottles in good condition in the conveying: non-falling, non-block, non-jam.
2. Conveying belt is designed by module, component can be interchanged easily, with compact structure, low noise, easy assembling and maintaining, good flexibility to combine the
bottle type according to the different capacity.
3. The design of electrical control is advanced and rational, we can design the control
method , select the electrical control component according to client's layout, to improve
the conveying stability
4. Set the switch according to conveying system layout or customers' reasonable requirement,
for the convenience of operation.
5. Belt lubricating system is equipped
6.Main part all using ANSI304
7. Fringe board is using the U.S. Rexnord technology to produce

Specification

1.Conveyor Height:1050mm
2.Side panel: 304 stainless steel sheet, thickness is 2mm
3.Power: HANGZHOU JIE Brand 0.75KW
4.Supporting leg: 304 stainless steel
5.Trunking and cover: 304 stainless steel
6.Lubricant water conservation tank: 304 stainless steel
7.Chain plate: Domestic high-quality plastic chain plate,polyoxymethylene (POM)
8.Bearing housing: 304 stainless steel cage

Material for each part

Basic data

Auxiliary machines for filling machine
1, Cap elevator
2, Cap sorting machine
3, Anti-foaming system
4, Bottled juice pasteurizer tunnel
6, Cleaning room
7, Bottle washing tunnel
8, Bottle dryer
9, Stick labeling machine
10, Date printer
11, Final package machine

Electric configurations

Another machienn types

Shipping issue

- Most of the shipping are transported by sea;
- We will help to pack the machine by standard export wooden case;
- We will help to book the shipping date;
- We will help to ship the machine to the port warehouse;
- We will help to make the clearance of goods in domestic;
- We will help to send you the clearance documents;
- We will help to track the machine where it is now;
