Taiwan Model Roller Shutter Door Roll Forming Machine Specification SD17-75

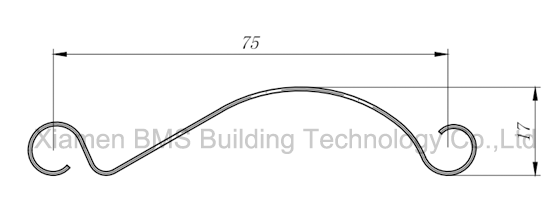

Taiwan Model Specification SD17-75 Roller Shutter Door Roll Forming Machine(Specifications and models can be customized)

Material

Effective width: 75mm Effective width tolerance:±0.5mm

Feeding width: about 125mm The wave height tolerance:±0.5mm

Material Thickness: 0.8-1.2mm The length of tolerance:±1(6m)

Applicable material: Galvanized Steel(GI) Inspection thickness:0.9mm

Cold roll steel(CRC)with yield strength 245-345Mpa

Machine Components

1) Manual Decoiler: one set(optional: Hydraulic decoiler)

Un-powered, Manually control steel coil inner bore shrinkage and stop

Max Feeding width: 300mm,coil ID range 508mm±30mm

Capacity: Max. 3 tons

2) Main Machine

The machine dimension(L*W*H):About 8500mm*1000mm*1800mm

body frame made from H600 type steel by welding

Sidewall thickness: Q235 t20mm

Rollers manufactured from GCr15(=EN31 Steel), CNC lathes, Heat Treatment, hard Chrome Coated, with thickness 0.04mm, surface with mirror treatment(for longer life and anti-rust)

Shafts Diameter=ф60mm, precision machined

Gear/Sprocket driving, about 15-step to form

Main Motor(Polaroid brand)=7.5KW, Frequency speed control

Speed redcucer motor: K series

Chain: ZIQIANG (by China TOP 1 brand DONGHUA Group)

Chain size: one inch with 18 teeth

All the screw bolts with grade 8.8(cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.

Real forming speed 0-20m/min(Not include cutting time and punching time)

3) Post Hydraulic Cutting Device(Include Punching)

Post to cut, stop to cutting, Three pieces type of cutting blade design, no blanking

Hydraulic motor:4 KW; Cutting pressure: 0-14Mpa

Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life)

Heat treatment to HRC58-62 degree

The cutting power is provided by the main engine hydraulic station

4) PLC Control System

Control The Quantity And Cutting Length Automatically

Input The Production Data(Production Batch, pcs, Length,etc.)On The Touch Screen,

It Can Finish The Production Automatically.

The hydraulic system with oil filter for the oil filtration, to ensure the circulated oil is clean and lengthen the life of the hydraulic system(See the picture below)

Exit Rack: Un-powered, Four units, with rollers on it for easy movement

4 units * 3m= 12m

Profile-Customizable

Work follows

Decoiler-Feeding-Roll forming-Cutting-Run out table
