Pipes Stainless Steel Clamp Half Pipe Clamps With Simple Connecting Thread

Categories Alloy Steel Pipe Fittings
Brand Name: TOBO
Model Number: A2-70
Certification: ISO
Place of Origin: CHINA
MOQ: 100
Price: USD 1 PC
Payment Terms: T/T
Supply Ability: 3000 Per week
Delivery Time: 15 days
Packaging Details: box, plywood case, pallet, etc, cartons
Material: Carbon Steel
Color: or as required, oil, Can be customed, black or not, Black
Package: box, plywood case, pallet, etc, cartons
Size: Customized Size, 1-6', 1/8"~2", 1/2"~48", 1/8
Connection: Welding, Female, Clamp, Male, Weld
Company Info.
TOBO STEEL GROUP CHINA
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

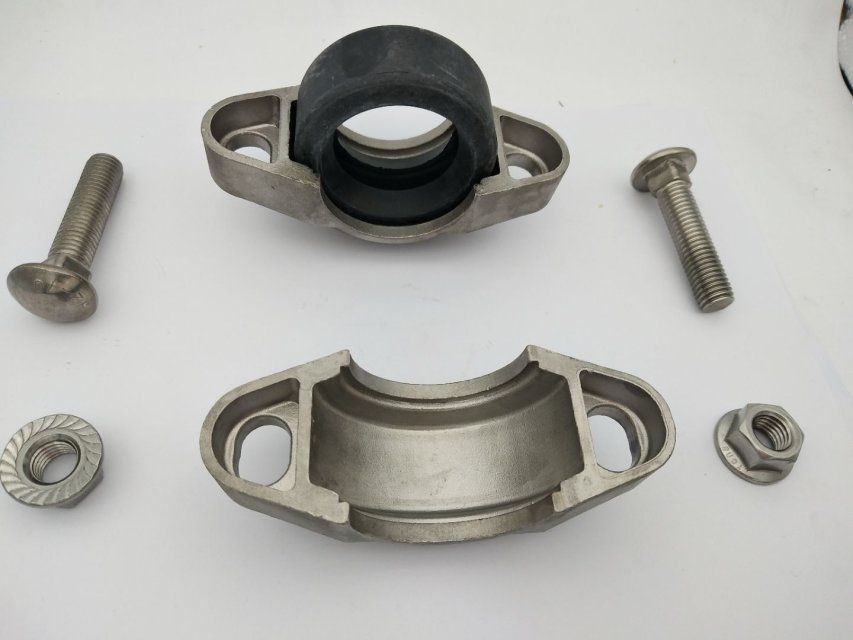

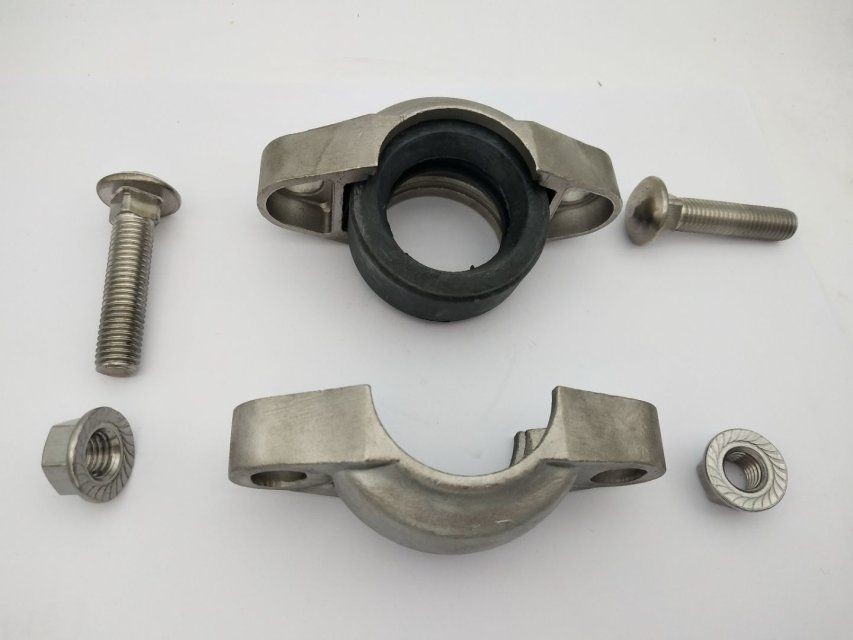

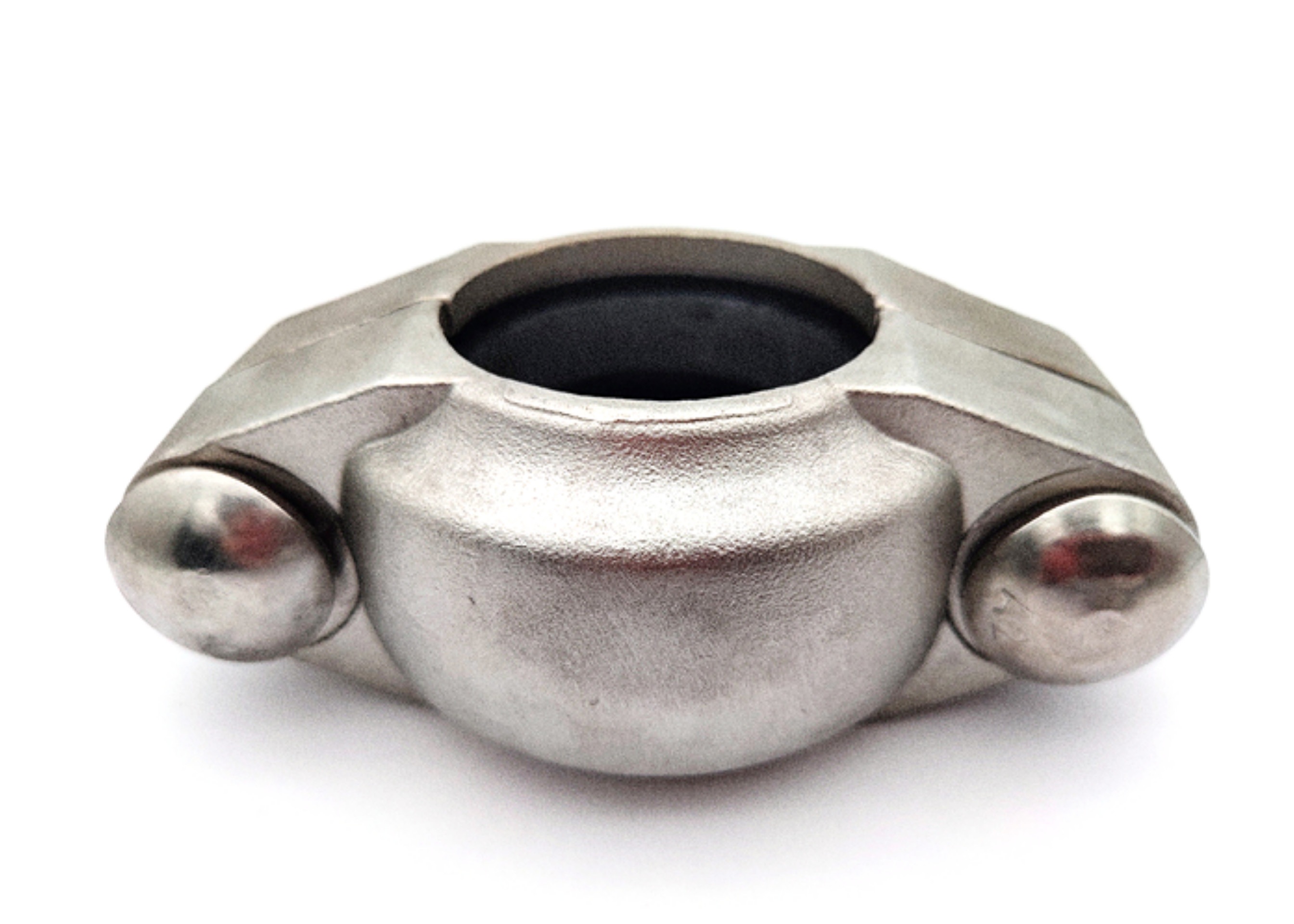

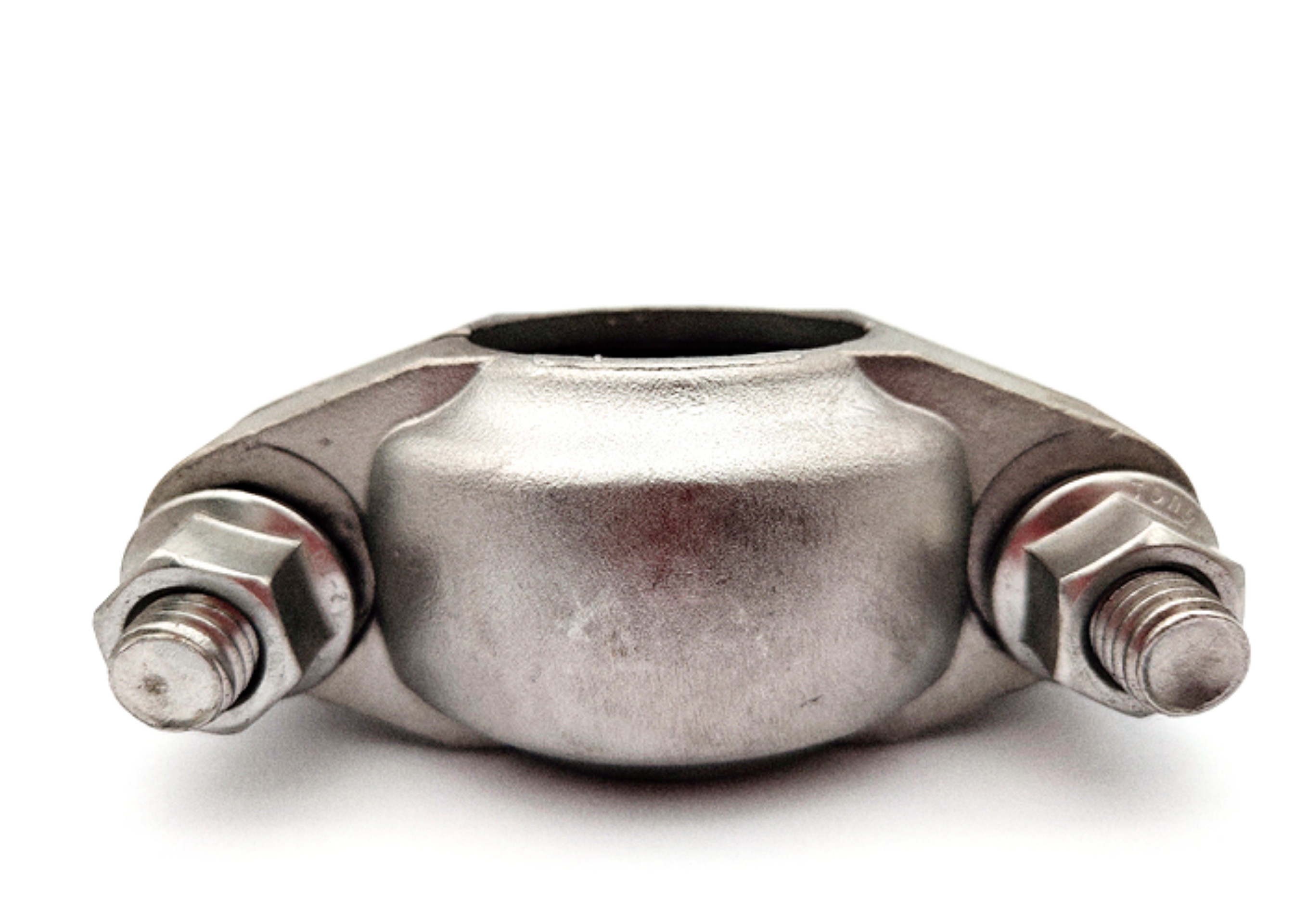

Pipes Stainless Steel Clamp Half Pipe Clamps With Simple Connecting Thread

A2 -70 Stainless steel clamp for pipes pipe fittings HALF PIPE CLAMPS STAINLESS STEEL STAINLESS STEEL A2


SKU:FSC-64689
EAN:4006209646892
Brand:Fischer
Thread:M 10

The two-screw pipe clamp with simple connecting thread

The fischer pipe clamp FRS is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with an M8/M10 combination connecting thread. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. Together with the combination connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 12 to 168 mm to be securely fixed with a threaded rod or stud screw indoors in accordance with the fire protection requirements of fire resistance class R 120 and MLAR. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109. The fischer FRS is suitable for applications in the temperature range from -40°C to +100°C.

Top Features

  • A2 stainless steel.
  • Two screws allow for ideal adaptation to the outer pipe diameter.
  • Loss protection of screw.
  • Sound insulation insert.
  • Connecting nut with thread M10.

Advantages/benefits

  • The two screws allow an easy adjustment to suit the outer pipe diameter.
  • The combination connecting nut with thread M8/M10 enables optimised mounting choices.
  • The sound insulation insert offers noise protection and prevents contact corrosion.
  • The screw's safety feature ensures trouble-free installation.

Properties

  • Material: stainless steel A2: material-no 1.4301, acc. DIN EN 10088-1
  • Material sound insulation insert: EPDM; chlorine-free; silicone-free
  • Temperature range: -40 °C to +100 °C
  • Hardness: 55 ± 5° Shore A
  • Fire behaviour: DIN 4102: Class B2

Applications

  • Secure fixing for pipes with threaded rods or stud screws (also when there are fire protection requirements)
