KUF2000 Ultrasonic Flow Meter High Protection Class For Industrial Automation

KUF2000 Series Inline Ultrasonic Flow Meter

Introduction

KUF2000 series inline ultrasonic flow meter is consist of the main unit and inline ultrasonic sensor.

The measuring range of π type inline ultrasonic flow meter is D N15mm~DN32mm,by flange

connection or thread connection. IP68 protection level. measuring temperature range -30℃~160℃, P/N

0~4.0Mpa, high accuracy within ±0.5%.

The measuring range of Standard inline type ultrasonic flow meter is DN40mm~DN1000mm, with high protection class of IP68, measuring fluid temperature of -30℃~160℃, pressure range of 0~2.5Mpa, high accuracy within ±0.5%.

KUFS2000A2 Wall Mount Inline Ultrasonic Flow Meter

The KUFS2000A2 flow meter can be installed on the wall or in instrument box, protection grade is IP67. Suitable for pipe sizes from DN15mm to DN6000mm.

Working Condition

Basic Parameters

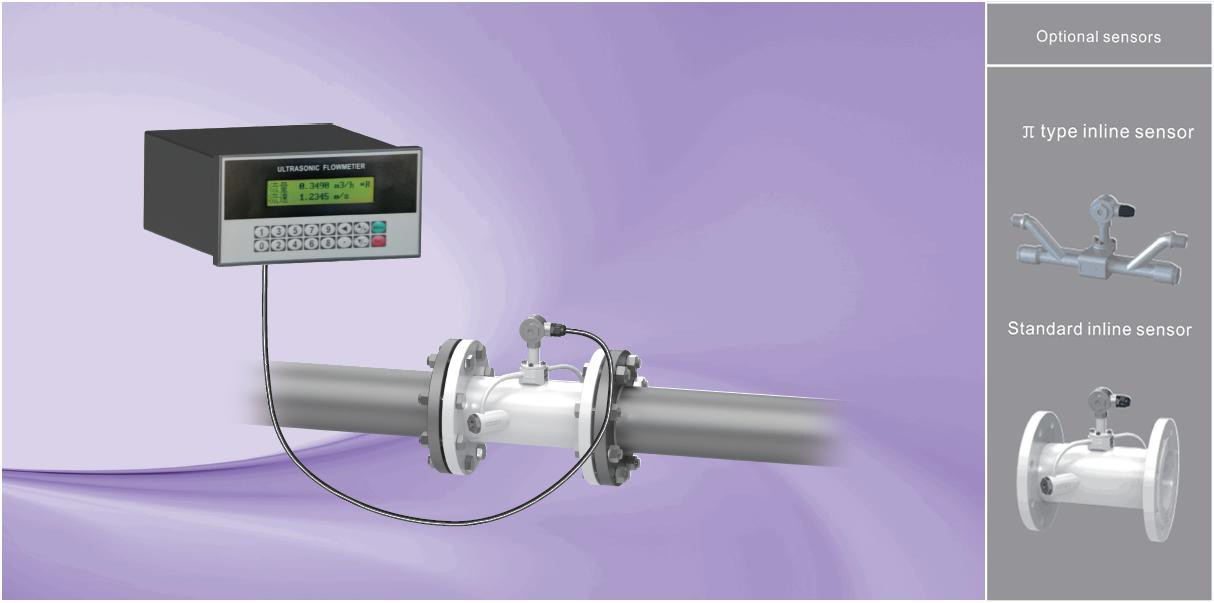

KUFS2000B Panel Mount Inline Ultrasonic Flow Meter

The KUFS2000B flow meter can be installed in instrument box. Suitable for pipe sizes from DN15mm to DN6000mm.

Working Condition

Basic Parameters

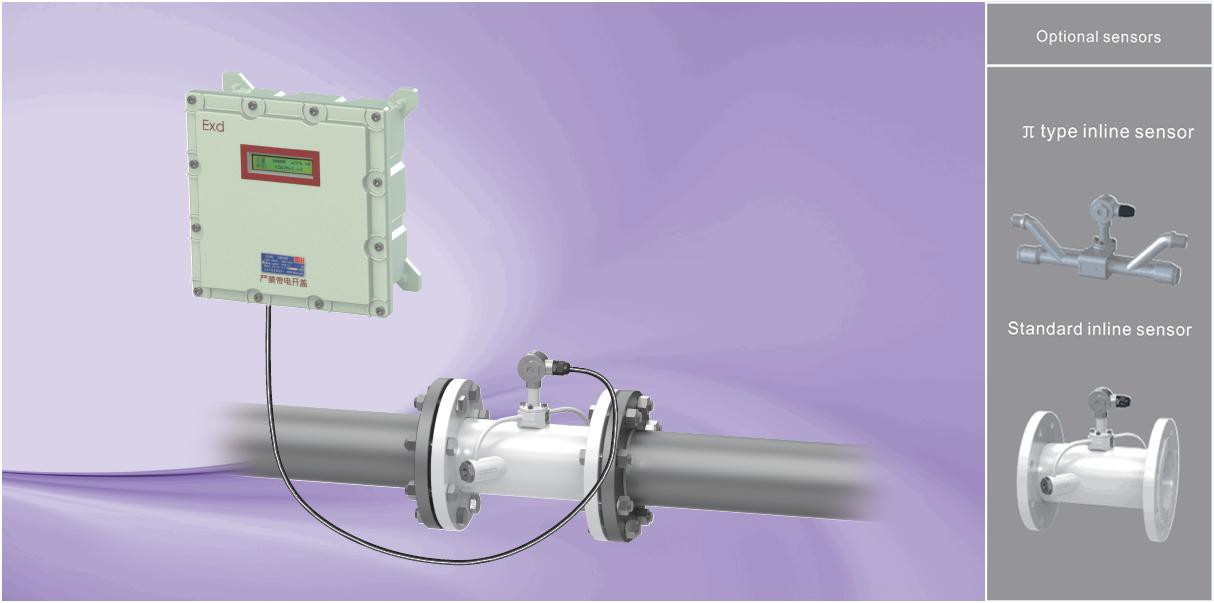

KUFS2000C Explosion-Proof Inline Ultrasonic Flow Meter

The KUFS2000C flow meter adopts isolated explosion proof, grade DΙ Ι BT5

After gluing and sealing, grade will be Intrinsically safe explosion. Suitable for pipe sizes from DN15mm to DN6000mm.

Working Condition

Basic Parameters

Optional Inline Sensors

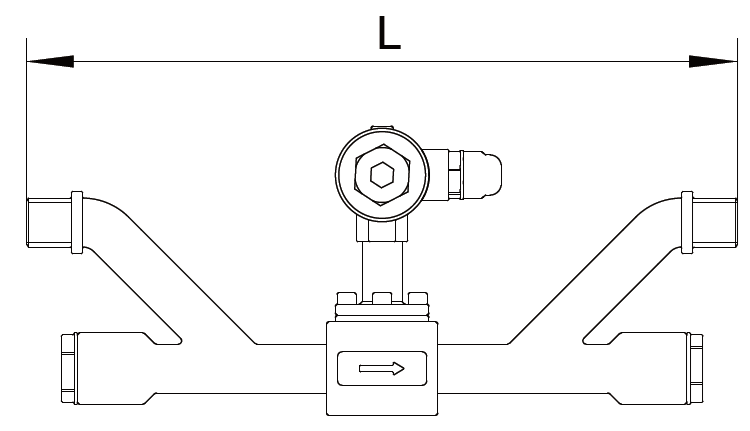

π Type Inline Sensors

1. Thread Connection

2. Flange Connection

Optional Inline Sensors

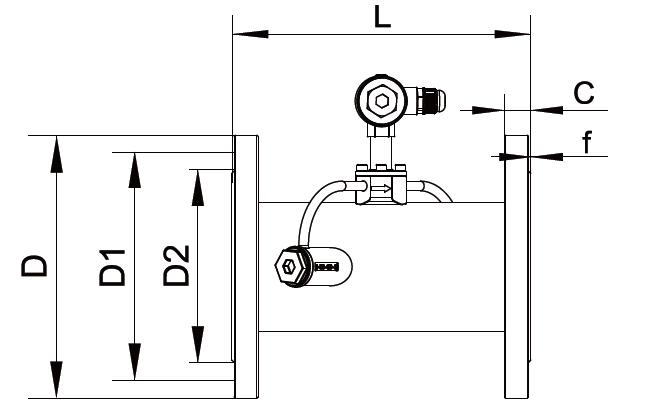

Standard Inline Sensors
