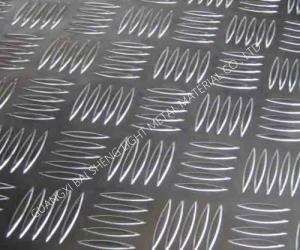

| Categories | Aluminium Checked Plate |
|---|---|
| Brand Name: | GBS |
| Model Number: | GBS-YHBL |
| Certification: | ISO |
| Place of Origin: | CHINA |
| MOQ: | 4mts |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1200mts per month |
| Delivery Time: | 3-4 weeks |
| Packaging Details: | standard export packing |
| Alloy: | AA1100/3003/3105/5052 |
| application: | Trailer Flooring, Stairs, Boxes, Caravan’s Building or Decoration |
| finish: | ,5-BAR |
| packing: | standard export packing |
| thickness: | 0.8mm - 15 mm |
| width: | 1000mm |
We can customize the sizes of embossed aluminum sheet, according to
our clients requirements.
| Dimension | Thickness | Width | Length |
| 1xxx | 0.8 -12.0mm | 900-1220mm | 900-8000mm |
| 3xxx | 0.8-15.0mm | 900-12200mm | 900-8000mm |
| 5xxx | 1.5-15.0mm | 900-12200mm | 900-8000mm |
- Surface Finish: Mill finish
- Pattern Height: 1.0mm, +/-0.4mm
- Pattern Length: 35mm, +/-3.0mm
- Standard Specification of embossed aluminum sheets: GB/T 3618, Base material conforms to GB/T 3880. These products are with the most reasonable aluminium checker plate price.
| Alloy and Temper | ||
| Alloy | Temper | Remarks |
| 1xxxx: 1050, 1060, 1100 | O, H114, H194 | Temper H12, H14, H22, H24, H32 and H34, which are applied to base material are provided as per client’s request and mutually agreement. |
| 3xxx: 3003, 3004, 3005, 3104, 3105 | ||
| 5xxx: 5005, 5052, 5754 | O, H114 | |
| Temper | Definition |
| O | Annealed |
| H114 | H114 fabricated from Temper O |
| H194 | H194 fabricated from Temper H18 |
Comparison of alloy designations for aluminum flat products. The aluminium chequered plate price will be related to different alloys.
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 1xxx Series | 1050 | - | - |
| 1060 | 1060 | - | |
| 1100 | 1100 | - | |
| 3xxx Series | 3003 | 3003 | EN AW-3003 |
| 3105 | 3105 | EN AW-3105 | |
| 5xxx Series | 5052 | 5052 | EN AW-5052 |
| - | 5754 | EN AW-5754 |
Chemical Composition conforms to Chinese, American and European standard specification (For Reference) of aluminium chequer plate sheets.
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others:Each | Others:Total | Al:Min. |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.05 | 0.03 | - | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.6 |
| 1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | - | - | 0.10 | - | 0.05 | 0.15 | 99.0 | |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.0-1.5 | - | - | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 3105 | 0.60 | 0.70 | 0.03 | 0.3-0.8 | 0.2-0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | remainder |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | 0.10 | - | 0.05 | 0.15 | remainder |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6-3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | remainder |
Embossed aluminium sheet is a highly cost modern material, it can be widely applied in flooring, wall panel, tool box, transportation and other architecture. As professional aluminium checker plate suppliers, we can provide you with the best aluminium checker plate sheet price.
| Type | Application |
| Construction | Curtain walls, cladding, ceiling, heat insulation and venetian blind block, etc. |
| Transportation | Automobile parts, bus bodies, aviation, ship-building and air-cargo containers, etc. |
| Electronic Appliance | Electrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc. |
| Consumer Goods | Parasols and umbrellas, cooking utensils, and sports equipment |
| Other | Military, color coated aluminum sheet |
