CK6150 Metal Lathe Machine High Accuracy Toolroom Metal Cutting Guideway

Categories Lathe machine
MOQ: 1 pieve
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 150 pcs/month
Delivery Time: 15-30 days after received payment
Packaging Details: Standard export packaging
Name: CK6150 CNC Lathe Machine
Condition: New
Type: Horizontal
CNC or Not: CNC

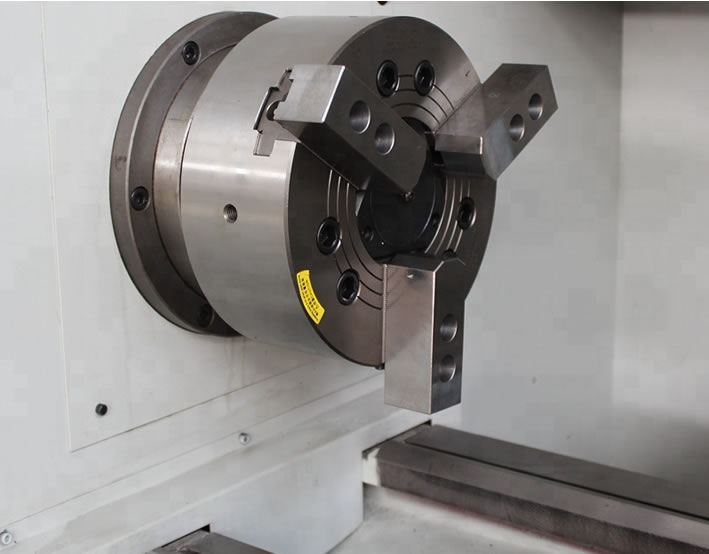

Chuck: 3-jaw Chuck
Color: Custom-made
Function: Machining metal
Control system: GSK SIEMENS FANUC
Power(W): 7.5kw
Weight: 3200kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CK6150 Metal Lathe Machine High Accuracy Toolroom Metal Cutting Guideway


CK6150 Metal Lathe Machine High Accuracy Toolroom Metal Cutting Guideway

Machine Description

CK6150 Lathe High accuracy toolroom metal cutting guideway CNC Lathe Machine


Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.

Main Features

1. Frequency conversion stepless speed regulation.
2. Higher working efficiency.
3. Higher rigidity cast iron.
4. Fully enclosed-safety.

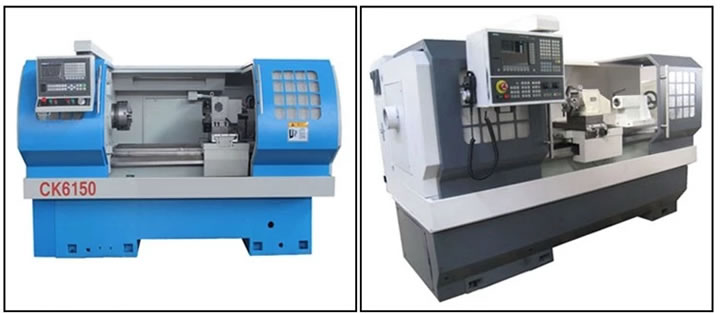

CK6150A-CNC-Machine-And-Metal-CNC-Lathe (3)


Product Parameters

CNC Lathe Machine CK6150A

Model
CK6150A
CK6150B
CK6150T
Max. rotation diameter over bed
mm
Φ500
Φ500
Φ500
Max. rotation diameter over pallet
mm
Φ300
Φ300
Φ290
Max. workpiece length
mm
750/1000
750/1000
750/1000
Lathe bed width
mm
400
400
360
Main transmission form
Independent spindle
Three gears
Independent spindle
Speed mode
Frequency stepless
speed
Frequency stepless
speed
Frequency stepless
speed
Spindle speed range
r/min
150-2000
36-1600
150-2000
Spindle head form
8-D
8-D
8-A2
Spindle bore
mm
Φ82
Φ82
Φ70
Spindle centering axial taper
1:4
1:4
1:4
Spindle taper
1:20
1:20
1:20
Chuck diameter
mm
Φ250
Φ250
Φ250
Main motor power
kw
7.5
7.5
7.5
Turret maximum stroke
mm
X: 320
Z: 760/1020
X: 320
Z: 760/1020
X: 320
Z: 760/1020
Fast-moving feed
mm/min
X: 6000 Z: 8000
X: 6000 Z: 8000
X: 6000 Z: 8000
Positioning accuracy
mm
X: 0.01 Z: 0.015
X: 0.01 Z: 0.015
X: 0.01 Z: 0.015

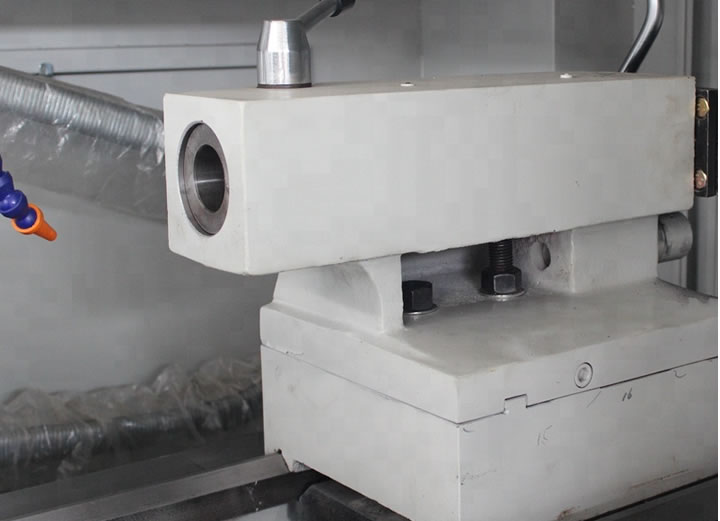

Dia. of tailstock quill
mm
Φ75
Φ75
Φ70
Tailstock quill stroke
mm
180
180
120
Taper of tailstock quill
MT5
MT5
MT5
Repeat positioning accuracy
mm
0.008
0.008
0.008
Section of turning tool
mm
25x25
25x25
25x25
Size (LxWxH)
mm
2650x1600x1700
3200x1600x1700
2650x1600x1700
3200x1600x1700
2300x1500x1600
2600x1500x1600
Net weight
kg
3200/3500
3200/3500
2900/3200

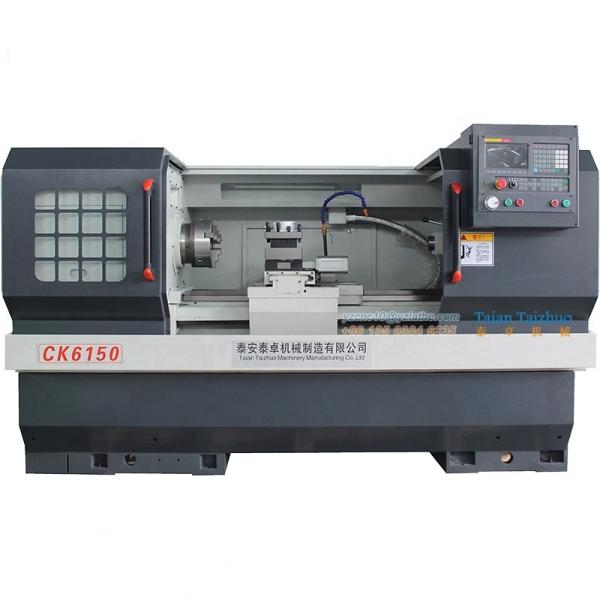

CK6150 Lathe

CK6150A-CNC-Machine-And-Metal-CNC-Lathe


The machine voltage is optional

Three phase: 380V/220V/415V/480V Single phase: 220V
Important note: Please confirm your local voltage with our sales staff before ordering.
