| Model Number: | ZF-500--ZF-3000 |
| Certification: | CE,ISO |
| Place of Origin: | china |
| MOQ: | 1 pieve |
| Payment Terms: | Western Union, D/P, D/A, L/C, T/T, MoneyGram |
| Supply Ability: | 1000 sets / month |
| Delivery Time: | 10-15 days after received payment |
| Packaging Details: | Standard export packaging |
| Name: | ZF-500 Seam welding machine |
| Condition: | New |
| Warranty: | 1 Year |
| Welding Diameter: | 75-850mm, 100-1000mm |
| Usage: | seam Welding |
| Welding Speed: | 0.2-2.2m/min |
| Company Info. |
| Henan WadJay Machinery Co.Ltd |
| View Contact Details |
| Product List |

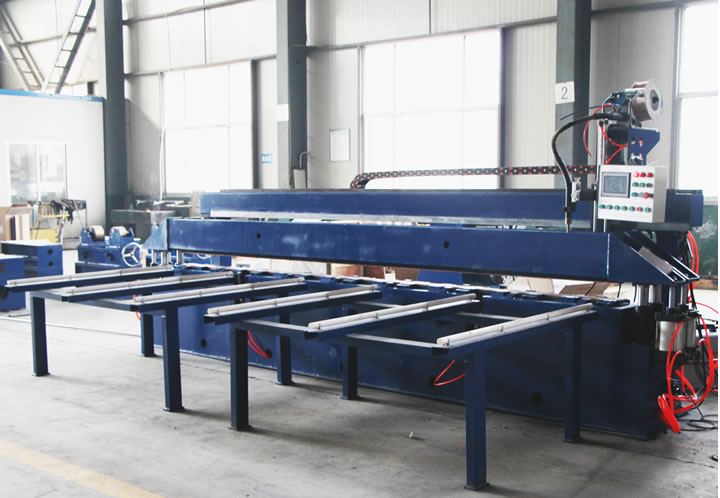

Automatic Longitudinal Seam Mig Welding Machine Welding short welds of horizontal workpieces.
1. Longitudinal seam welding machine is professionally used for straight seam welding of various metal products. It has strong maneuverability, simpleness, convenience and reliability. It has smooth welding, good consistency, high efficiency andbeautiful weld seam.
2. The equipment is mainly used in stainless steel sheet, carbon steel sheet galvanizes zinc steel,cylinder longitudinal seam automatic welding work.
3. The longitudinal seam welding for the cylinder is docked with the longitudinal seam of the flat plate. It is suitable forvarious welding methods such as gas shielded welding andargon arc welding autolysis (filling).
4. The equipment is consists of longitudinal seam welding machine body, welding power, and electrical control system.
5. The automatic welding machine uses horizontal welding structure, that is, the work piece position is relatively fixed, the torch driven by the motor reducer to move the form of horizontal movement in order to achieve flat welding seam straight seam welding.
6. The welding process control is controlled by the programmable controller (PLC), automatic and manual adjustment
| model | ZF-500 | ZF-1000 | ZF-1500 | ZF-2000 | ZF-2500 | ZF-3000 | |
| Welding length | 525 mm | 1125 mm | 1650 mm | 2025 mm | 2550 mm | 3075 mm | |
Min. diameter | φ75 mm | φ115 mm | φ150 mm | φ180 mm | φ200 mm | φ270 mm | |
Max diameter | φ850 mm | φ730 mm | φ1000 mm | φ1000 mm | φ1000 mm | φ1000 mm | |
| Welding thickness | 0.2-6 mm | 0.4-6 mm | 0.8-8 mm | ||||
| Welding speed | 150-1500 mm/min | ||||||
| Speed control | Stepless speed control | ||||||
| Transmission mode | Guide rail+gear and rack | ||||||
| Slide precision | ±0.15 mm | ±0.2 mm | |||||
| Clamping mode | Key type Pneumatic clamping | ||||||
| Optional | 1.analog control;2.torch screen+PLC control; | ||||||
| 3.American welding source;4.china welding source;5.others | |||||||
|
