| Categories | Fiber Fast Connector |
|---|---|
| Brand Name: | Fibery |
| Model Number: | FYESC250DU |
| Place of Origin: | China |
| MOQ: | 1Unit |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram,Paypal |
| Supply Ability: | 20000Pcs/Month |
| Delivery Time: | 4-6 work days |
| Packaging Details: | plastic zipper bag+inner box+outer carton box |
| Product name: | Fiber Fast Connector |
| Color: | Blue |
| Insertion loss: | ≤ 0.25dB |
| Return loss: | ≥50dB |
| Connector type: | SC/apc |
| Operating temperature: | -40 to +85 degree |
| Fiber cable type: | 2.0×3.0 and 2.0×1.6 drop cable |
| Application: | FTTH FTTB FTTX Network,CATV |
| Price: | Negotiable |
Fiber Fast Connector ESC250D Sc Upc Single Mode Field Assembly Optical Connector
Description
The fast connector is designed for high quality and high efficiency for installation
The structure of crimping position is a unique design, and don’t need gluing, polishing neither any consumables.
Adopted fiber pre-installed structure
Could be reused, and convenient for field installation
Specification
| Item | Parameter |
| Cable Scope | 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable |
| Size | 51*9*7.55mm |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return Loss | ≤ -50dB for UPC, ≤ 55dB for APC |
| Success Rate | >98% |
| Reusable Times | >5 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >30 N |
| Temperature | -40 ~ +85 C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test | IL ≤ 0.3dB |
Feature
Low insertion loss value
Choice of housing and sleeve materials
Stable capability and high reliability
Excellent mechanical capability
Factory-installed fiber stub
No epoxy or polishing required
Quick and easy fiber termination in the field
Eliminates cable excess length and pigtail splicestorage
Cost effective
Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
Low insertion loss,high return loss
Excellent Temperature stability
Good repeatability and exchangeability
Excellent mechanical endurance
Strict curing time and temperature control
Strict testing standards and methods for quality
Environment protection (ROHS Compliance)
100% NEW raw material and well quality control ensure the best life time.
Application
• CATV
• Telecom network
• Optical test equipment
• Local area networks
• Wide area networks
• Data processing Networks

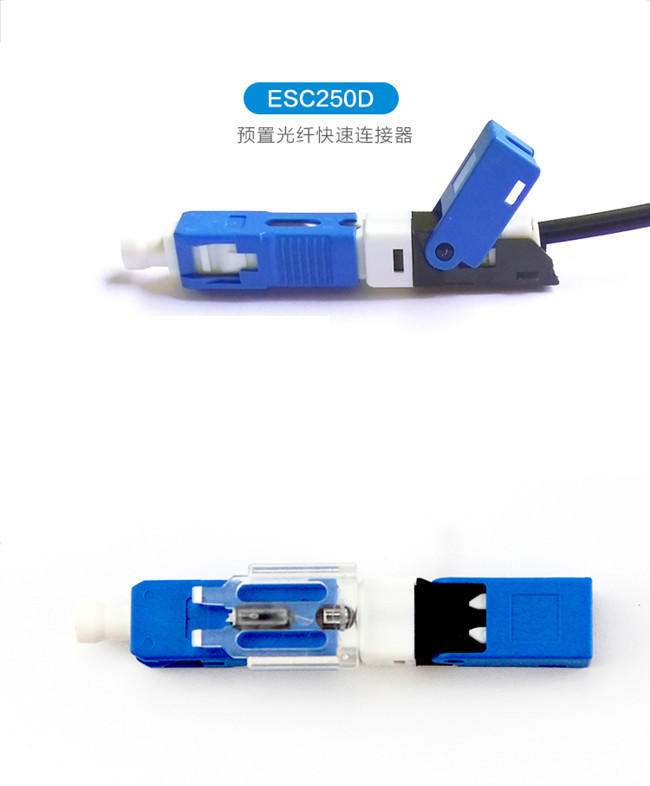

Product Pictures
Package details
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
|
