| Categories | Echo Sounder |
|---|---|
| Brand Name: | CHC |
| Model Number: | D580 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 20000 per set |
| Delivery Time: | 3-5 work days after the goods are paid |
| Packaging Details: | with standard packing way |

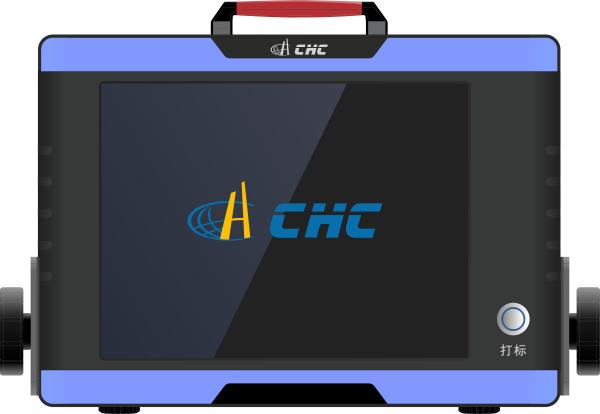

D580 Dual Frequency Echo Sounder
Technical indicators
| Working frequency of high frequency | 100~750KHz (adjustable) |
| Low working frequency | 20/25khz (adjustable) |
| High frequency transmission power | 500 w |
| Low frequency transmitted power | 800 w |
| High frequency sounding range | 0.3 m to 600 m |
| Low frequency sounding range | 0.3 m to 2000 m |
| Sounding precision | (h is the depth of water) |
| The resolution of the | 1 cm |
| Draft adjusting range | 0.0 m to 9.9 m |
| Sound velocity adjusting range | 1300 ~ 1700 m/s |
| Data output | Simulation of multiple formats, baud rate adjustable |
| An external port | Three rs-232 serial ports, four USB ports, one VGA display interface and one network port |
| Main frequency | 1.6 GHz |
| Memory capacity | 1 gb DDR2 |
| The fuselage storage | 16GB (8GB or 32GB can be customized according to customer requirements) |
| The power/power consumption | Dc 9-36v or ac 110-380 V, power consumption 30W |
| The environment | Working temperature 30 ℃ ~ 60 ℃, waterproof, earthquake |
| Size | 400 mm * 270 mm * 110 mm |
| The weight | 6kg (excluding transducer) |
| U9 Name | U9 Number | Quantity | |
| 1 | D580-H Dual Frequency Conversion Echo Sounder | 1358032610 | 1 |
| 2 | 12V-10A Adapter | 2304060002 | 1 |
| 3 | Transducer (High Frequency open Angle 7 degrees)25K | 1906210607 | 1 |
| 4 | Transducer Connecting Rod | 2304020001 | 1 |
| 5 | Case for Transducer Connecting Rod | 2304020002 | 1 |
| 6 | The Case for the Transducer | 2304020003 | 1 |
| 7 | Dual Frequency Transducer Adapter Pad (Already assembled ) | 2302020001 | 1 |
| 9 | Type A lifting ring screw M8 | 0104000014 | 2 |
| 10 | Hexagon head bolt full thread M8*20(YF) | 10 | |
| 11 | 12V5A DC power cable | 2304060003 | 1 |
| 12 | Echo Sound Dongle | 1904110192 | 1 |
| 13 | 5 m Extension Cord | 1905210294 | 1 |
| 14 | Logitech wireless keyboard mouse suit | 2304060001 | 1 |
|
