Alumina Silica Ceramic Insulation Blanket Thermal And Electrical Insulation

Categories Ceramic Insulation Blanket
Brand Name: FS
Model Number: FS-2300
Certification: SGS,CE
Place of Origin: China
MOQ: MOQ: 10PCS
Price: 11.7USD/roll
Payment Terms: D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability: 10000 roll/month
Delivery Time: 15 working days
Packaging Details: Carton, PE
Working temperature: 1100℃
Chemical composition: AL2O3+SIO2
Color: white
Density: 96kg/m3-140kg/m3
Size: 600*300 mm
Fiber diameter: 3-5um
Application: Hot top lining
Feature: easy to cut, handle and install
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

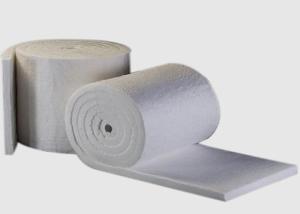

Alumina Silica Ceramic Insulation Blanket Thermal And Electrical Insulation


Alumina Silica Ceramic Insulation Blanket Thermal And Electrical Insulation


Product Description

It’s produced by the melting of very pure raw materials in double surface meeting process with out binders and with good stability in a large range of temperature. Its unique fiber layup and needling process provide Sino shine Ceramic Fiber Blanket with outstanding consistency, handling strength and resiliency at elevated temperatures.
This product is used in industrial furnace, heaters, inside wall of high temperature rube, electric power furnace, and nuclear power station and heat insulationIt also can be used to fireproofing, heat insulation of high building, Furnace door and cover insulation.


Features


1. low thermal conductivity

2. excellent thermal shock resistance

3. light weight

4. outstanding electrical resistivity

5. excellent chemical corrosion-resistant performance

6. low heat storage

7. asbestos-free

8. easy to cut, handle and install


Application

1. Asbestos paper replacement
2. Investment cast mold wrap insulation
3. One-time consumable insulating applications
4. Back-up lining for metal throughs
5. Hot top lining
6. Applications where low binder content is required
7. Thermal and electrical insulation


Technical Data


Thickness10-50mm
Width610-1220mm
length3600-7200m
Temperature1000-1400℃
WeavePlain
Moisture content %<2
Density64kgs/m3, 96kgs/m3/, 128kgs/m3
Shrinkage on heating (%)1000CX24h ≤-3
PackingWoven bag, carton box
