| Categories | High Temperature Tube Furnace |
|---|---|
| Brand Name: | SP |
| Model Number: | SP-1700T-53 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 300sets per month |
| Delivery Time: | 10-15working days after down payment |
| Packaging Details: | strong plywood case for export |
| Product name: | High Temperature Electric Tube Furnace |
| operation temperature: | 1600℃ |
| heating element: | MoSi2 rod |
| insulation material: | light alumina ceramic fiber board |
| tube diameter: | 40/60/80/100mm |
| temperature control: | 30segments programmable and PID auto control |
| thermocouple: | K type |
| temperature accuracy: | ±1℃ |
| Max. vacuum: | -0.1MPa |
| Usage: | High Temperature Sintering |

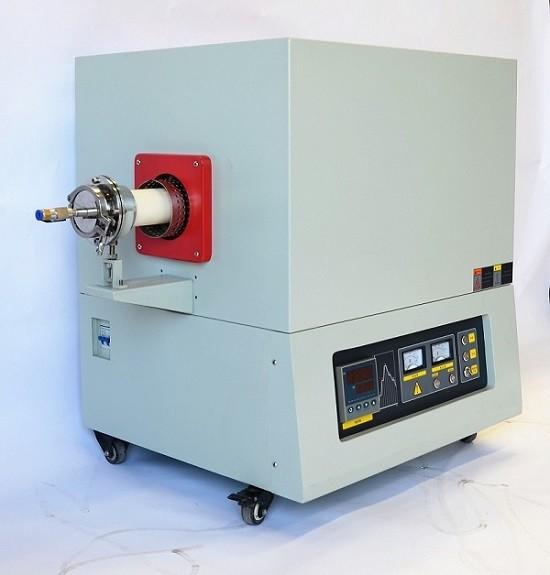

Brief introduction of high temperature electric tube furnace:
1700C electric tube furnace use high pure alumina as furnace chamber with excellent heat-insulation effect and symmertrical temperature uniform. Working temperature from 200℃ to1600℃ is available.Precise and advanced auto temperature controller with temperature accuracy+/-1C.
It's widely used in the labs of university and research Institution, also can used in factory for production.It have below outstanding features:
1: Precise and advance temperature controller.
2: Excellent heat-insulation effect.
3: Symmerterical temperature uniform.
4: Can Protect the heating sample from pollution.
5: Can flow into various atmosphere.
6: Max Vacuum can upto -0.1MPa
Technical parameter of SUPER 50*300mm tube furnace :
| Product name and model | SP-1700T Lab Electric Tube Furnace |
| Heating tube size(OD×L) | Φ 50 x300 mm (2.0 "x12") |
| Chamber insulation materials | lightweight aluminum oxide fiber Ceramic |
| Maximum Temperature | 1700°C (Working time Not more than 3 hours.) |
| Working Temperature | 400-1600°C (justierbar, continuously Work) |
| Temperature controller way | Based on the microprocessor 30 segments programmable and PID auto control |
| Heating Rate | 1--15°C/min (justierbar) |
| Temperature accuracy | +/-1°c |
| Sensor of measuring Temperature | K type thermocouple |
| Heating elements | MoSi2 rod |
| Ultimate vacuum | -0.1MPa |
| Vacuum pump specifications Model | TW-0.5A;pumping rate:0.5L/s;Power:120W |
| Furnace shell structure | Double ventilation cooling structure |
| Temperature display mode | four figure liquid crystal display |
| Working power | AC 1-phase, 110-240 V 50/60Hz (User Choose any) |
| Rated power | 2KW |
| Spare function | installed computer communication module and RS485 communication interface, to realize the remote control |
SP-1700T electric tube furnace standard model
| Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
| SP-1700T-53 | Φ50x300 mm(2.0"x12") | AC 1-phase/3-phase 110V-400V 50Hz/60Hz. | TW-0.5A;0.5L/S;120W;110V/220V |
| SP-1700T-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-84 | Φ80x400 mm(3.2"x16") | TW-1A;1L/S;120W;110V/220V | |
| SP-1700T-104 | Φ100x400 mm(4.0"x16") | TW-1A;1L/S;120W;110V/220V |
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support,
excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and
any damage from wrong operate and use are not under the coverage of
One Year Limited Warranty.
Our advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber
and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
|
