| Categories | Wire Tinning Machine |
|---|---|
| Brand Name: | Fortune Sky |
| Model Number: | HWN-835 |
| Certification: | CCC,CE |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Price: | USD1-USD999999 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 pcs per month |
| Delivery Time: | 3-5 working days |
| Packaging Details: | Plywood Box |
| Screw guide:: | Taiwan CPC/Hiwin |
| Color Touch Screen:: | Kinco (Taiwan) |
| Computerized numerical control debugging:: | knife size, cutting length,stripping length,flux depth,tin depth,all realize digital touch screen operation. |
| Pneumatic components:: | solenoid valve + cylinder (Taiwan Airtac) |
| Motor type: | The machine adopts servo control and five sets of servo motors (Mitsubishi Servo) |
| Functions:: | Wire cutting,single-end stripping,double-ends stripping,single-end crimping,single-end twisting,single-end tinning (optional opening and closing) |
| Warranty:: | One year limited and longlife maintenance |

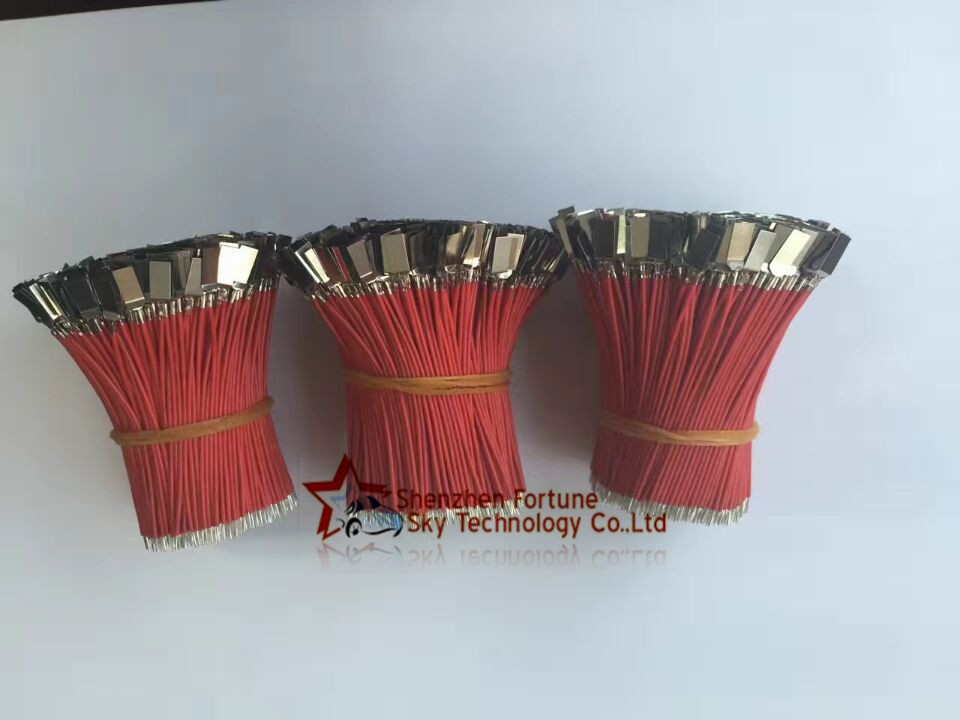

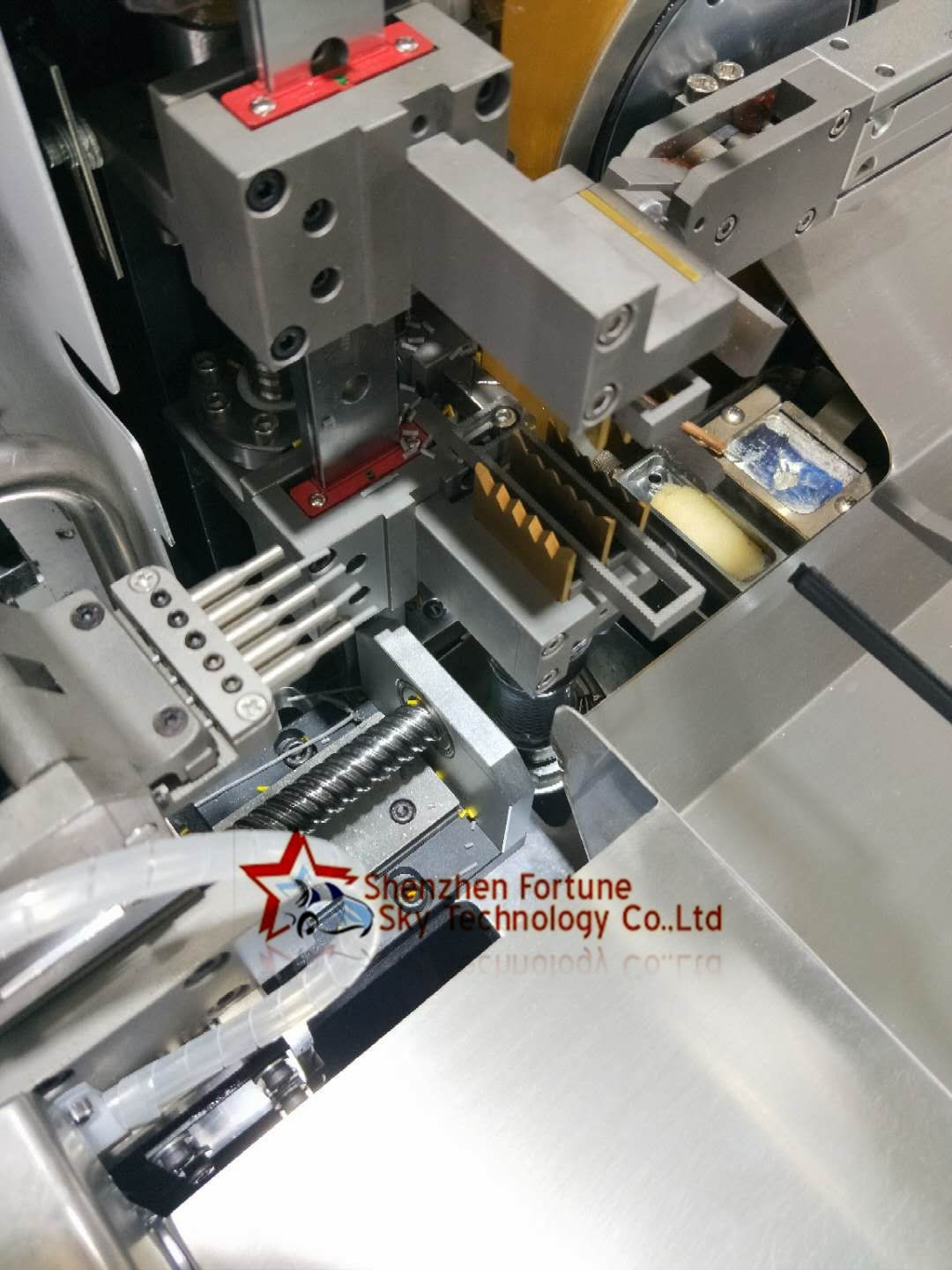

Fully automatic five wires one-end strip crimp one-end strip twist tinning machine is computerized numerical control debugging: knife size, cutting length, stripping length, flux depth, tin depth, all realize digital touch screen operation. its functions: Wire cutting, single-end stripping, double-ends stripping, single-end crimping, single-end twisting, single-end tinning (optional opening and closing)
Feature:
1.Computerized touch screen English/Chinese operation menu,easy to learn and use;
2.Rapid replacement of process and materials,high efficiency,high
precision,fast speed and convenient maintenance;
3.The machine adopts servo control and five sets of servo motors
(Mitsubishi Servo)
4.Pneumatic components:solenoid valve + cylinder (Taiwan Airtac)
5.Screw guide:Taiwan CPC/Hiwin
6.Color Touch Screen: Kinco (Taiwan)
7.Computerized numerical control debugging: knife size, cutting length,stripping length,flux depth,tin depth,all realize digital touch screen operation.
Specification:
| Model No.: | HWN-835 |
| Functions: | Wire cutting,single-end stripping,double-ends stripping,single-end
crimping,single-end twisting,single-end tinning (optional opening
and closing) Cutting length:32mm-650mm (long wire can be customized) |
| Cutting accuracy: | 0.2+/-0.02xL |
| Stripping length: | 0.1mm-11mm |
| Wire diameter: | 0.6mm-3.5mm |
| Tinning length: | 1mm-11mm |
| Twisting length: | 2mm-10mm |
| General wire diameter: | AWG16-AWG32 |
| Crimping Force: | 2.0T Terminal Machine |
| Working speed: | cutting length 100mm,6000 pcs/hour; cutting length 220mm,5200 pcs/hour |
| Air pressure: | 0.5-0.7MPA |
| Detection device: | crimping detection,wire missing detection,wire knotting detection,terminal presence or absence detection. |
| Blade material: | high speed steel |
| Body size: | 1500x800x1600mm |
| Body weight: | 290KG |
| Auxiliary Device: | terminal waste paper rewinding device |
| Power supply: | AC220 single-phase 8A |
|
