Luminous Intensity Light Meter Led Lamp Tester 00.1~5000cd/M2 Luminometer For Site Test

Categories Led Testing Equipment
Brand Name: PEGO GROUP
Model Number: PHOTO-200L
Place of Origin: China
MOQ: 1 set
Price: USD300~USD500
Payment Terms: T/T, MoneyGram
Delivery Time: 7 working days
Packaging Details: carton
Accuracy: class 1
Measuring range: 380nm~800nm
Wavelength: 230nm~280nm, 320nm~380nm (optional)
Screen: 3.5-inch IPS LCD touch screen
Size: 65mm*147mm*18.5mm
Weight: 180g
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Luminous Intensity Light Meter Led Lamp Tester 00.1~5000cd/M2 Luminometer For Site Test

00.1~5000cd/m2 Luminometer Luminous Intensity Light Meter for Site Test


1. Introduction

The luminometer is applied to test the luminance at site, it adopts high-speed AMR processor and high-precision optical sensor, it has the features of lightweight design, stable performance, high precision and easy to carry. Equipped with 3.5-inch IPS LCD touch screen, making the device only has size of 65mm * 147mm * 18.5mm and weight of 180g. It is widely used in home, shopping mall, school, factory, greenhouse, outdoor and other field lighting measurement fields


2. Parameter

ModelPHOTO-200L
Wavelength range380nm~800nm
Accuracy of luminanceClass 1 (±4% reading+1 digit)
liminance measurement range00.1~5000cd/m2
Interface portType-C
Sampling time50~10000mS
Dimension

65mm*147mm*18.5mm

screen: 56mm*113mm

Display area: 50mm*75mm (3.5 inch touch screen)

Power Supply

built-in Li-battery (12h standby) and power adaptor

Charging adapter: AC110V~220V ±10% (input), DC5V/1A±5% (output)

working condition-10℃~+40℃ / 0~70% R.H.
Operation languageChinese / English switchable

3. PHOTO-200 Series

ModelWavelength rangePeak wavelengthIlluminance/luminance measurement rangeError
PHOTO200380nm~800nm0.1Lx~1000K LxClass 1 (±4%+1 digit)
PHOTO200L380nm~800nm0.1~5000cd/m2Class 1 (±4%+1 digit)
PHOTO200UVC230nm~280nm254nm0.1~20000uW/cm2±5%
PHOTO200UVA320nm~380nm365nm1~50000uW/cm2±5%
PHOTO200IR810nm~890nm850nm1~20000uW/cm2±5%
PHOTO200IR880nm~980nm940nm1~20000uW/cm2±5%
PHOTO200F

380nm~800nm

Frq: 50Hz~250kHz

0.1Lx~1000K LxClass 1 (±4%+1 digit)

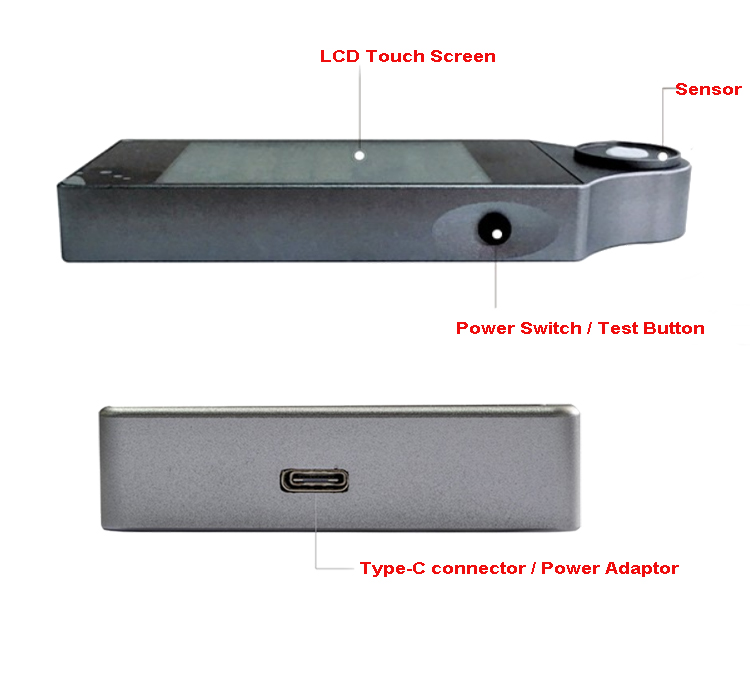

4. Size and appearance


5. FAQ
1). Is the meter suitable for outdoor use?
Answer: yes, this meter is special for site test.

2). Is the meter rechargeable?
Answer: yes, the meter adopts Li-battery which is rechargeable with input voltage 110V~220V.

3). What is the lead time?
Answer: generally, the lead time is 7 working days upon we receipt of your payment.
