| Brand Name: | Mitsubishi |
| Model Number: | FR-ABR-H3.7K |
| Certification: | ROHS,CE,UL,CCC,VDE |
| Place of Origin: | Japan |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | Western Union, T/T, L/C,Paypal |
| Supply Ability: | 1000pcs/Day |
| Delivery Time: | 0-2 days |

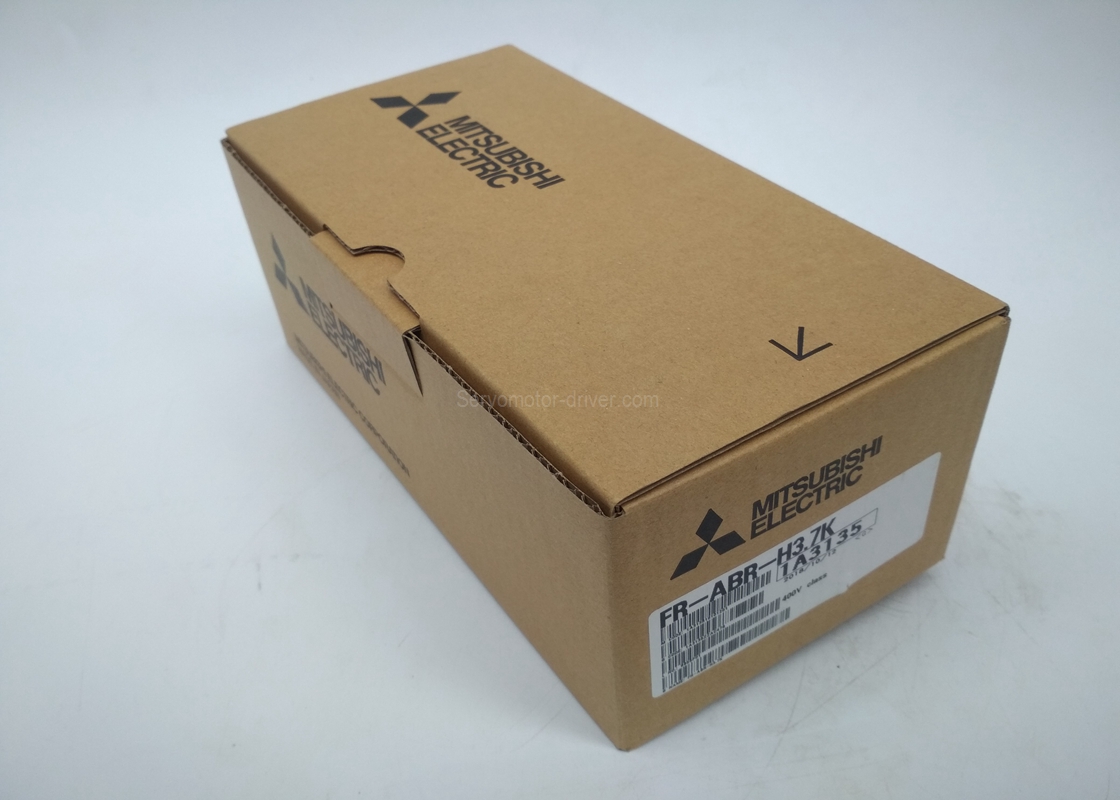

| Packaging Details: | Original Packing With Good Protection Material |
| Product Type: | External Brake Resistor |
| Condition: | Brand New |
| Warranty: | One year |
| Application: | Automation Inverter |
| Product name: | Mitsubishi High-Duty Brake Resistor |
| Alternate Number: | FRABRH3.7K |

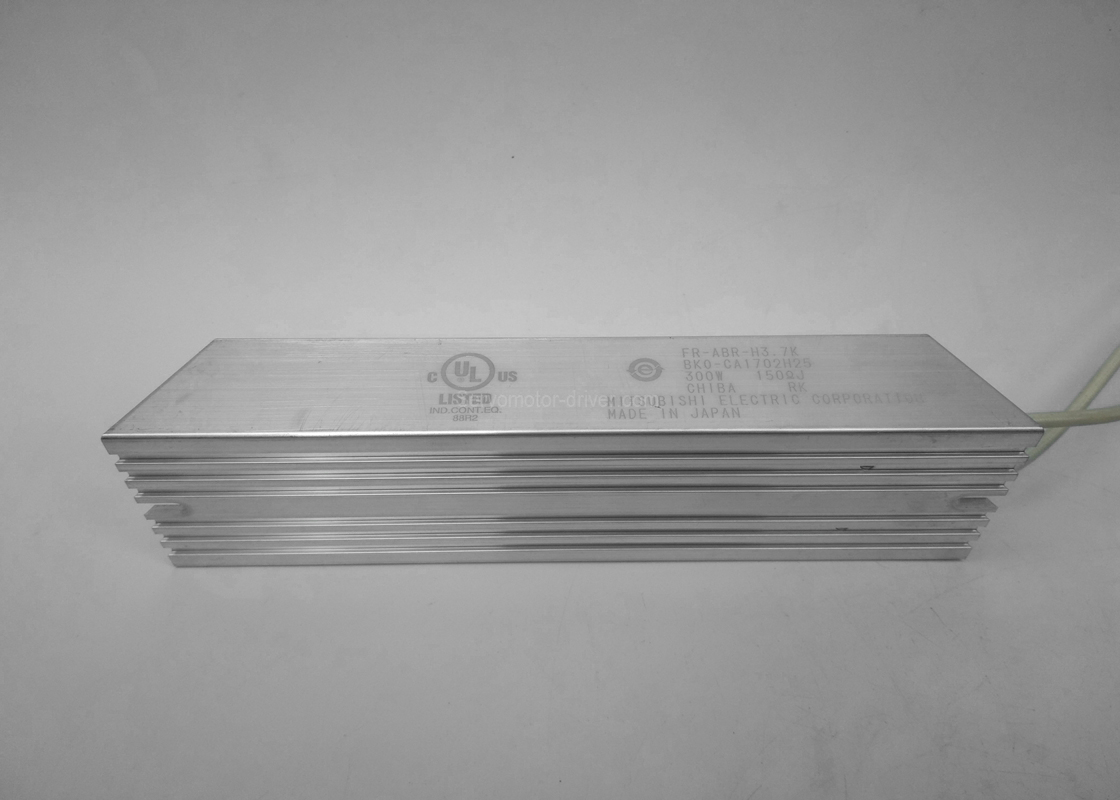

Original Mitsubishi FR-ABR-H3.7K External Brake Resistor Automation Spare Parts
High-duty brake resistor - Mitsubishi Electric (FREQROL) - Three-phase 400V class - Rated active power 3.7kW / 5HP - Resistance 150Ω - Compatible with FR-E700; FR-F700PJ; FR-D700
Braking unit for frequency controller FR-ABR-H3.7K Type of accessory Breaking resistance 150 Ohm
Mitsubishi FR-ABR-3.7K : Variable Frequency Drive Braking Resistor
FR-ABR-H3.7K...EXTERNAL BRAKE RESISTOR, 460VOLTS, 5 HP MOTOR, 150 OHMS RESISTANCE, 155W CONTINUOUS PERMISSIBLE POWER
| High-Duty Brake Resistor Model | Resistance | Continuous Permissible Power | Applicable Inverter Models | |
| 400V Class | FR-ABR-H3.7K | 150Ω | 155W | FR-A540-3.7K(-**) FR-E540-3.7K(C)(-**) FR-V540-3.7K(-**) FR-A044-3.7K(-**) FR-A740-3.7K(-**) FR-E740-3.7K(-**) |
Note : ** indicates alpha numeric combination which means an
inverter type such
as A1 and A2.
| Power Supply Voltage | High-duty Brake Resistor | Thermal Relay Type (Mitsubishi product) | Contact Rating |
| 400V | FR-ABR-H3.7K | TH-N20CXHZ-2.1A | 110VAC 5A, 220VAC 2A(class AC-11) 110VDC 0.5A, 220VDC 0.25A(class DC-11) |
| Brake Resistor Model | Dimensions (Unit: mm) | Crimping Terminal (Unit: mm) | ||||||||
| W | W1 | W2 | D | H | A1 | A2 | ||||
| B1 | d1 | B2 | d2 | |||||||
| 400V Class | FR-ABR-H3.7K | 215 | 200 | 175 | 61 | 33 | 7 | 4.3 | 7 | 4.3 |
| Product Name | Mitsubishi Braking Resistor |
| Part number | FRABR3.7K |
| Manufacturer brand | Mitsubishi |
| Description | Variable Frequency Drive Braking Resistor |
| Condition | 100% brand new |
| Warranty | one year |
| Application | For use with mistubishi D700 series micro inverters |
