Alloy 20 Socket Weld Pipe Flanges 8" 150 ANSI B16.5 Ring Type Joint ASME SB462

Alloy 20 Socket Weld Pipe Flanges 8" 150 ANSI B16.5 Ring Type Joint ASME SB462

Alloy 20 Socket Weld Pipe Flanges 8 150 ANSI B16.5 Ring Type Joint ASME SB462
Alloy 20 Socket Weld Pipe Flanges 8" 150 ANSI B16.5 Ring Type Joint ASME SB462
Categories Socket Weld Pipe Flanges
Brand Name: BOYUE
Model Number: ANSI B16.5 Alloy 20
Certification: ISO
Place of Origin: CHINA
MOQ: 1 pcs
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 18000PCS/Month
Delivery Time: 25-35days
Packaging Details: Plywood Case Of Outside,Plastic Cloth Of Inside
Standard: ASTM SB 564
Size: 8"
Material: Alloy 20
Pressure: Class150
Packing: Plywood Case Of Outside,Plastic Cloth Of Inside
Price term: CIF CFR FCA EX-WORK
Contact Now
Company Info.
BoYue Industrial (Shanghai)Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

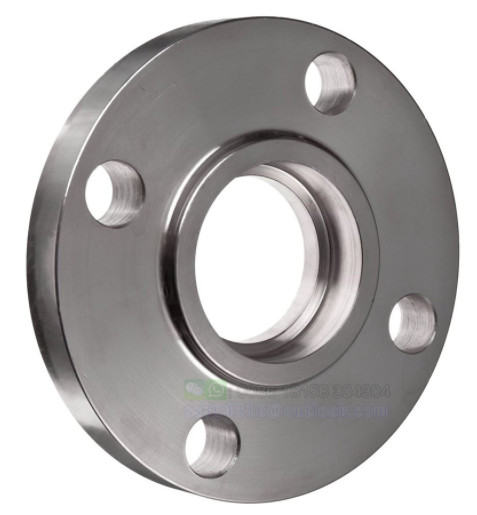

Alloy 20 Socket Weld Pipe Flanges 8" 150 ANSI B16.5 Ring Type Joint ASME SB462

Alloy 20 Socket Weld Pipe Flanges 8" 150# ANSI B16.5 Alloy 20 Ring Type Joint Flanges, ASME SB462


Specifications
Standard:ASTM B462/ ASME SB462
Class:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Size:1/2″ (15 NB) to 48″ (1200NB)
Grade:Alloy 20, UNS N08020, 2.4660
Dimensions:ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Types:Forged Flanges, Blind Flanges, Slip On Flanges, Weld Neck Flanges, Lap Joint Flanges, Threaded Flanges, Socketweld Flanges, Orifice Flanges, Reducing Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Nipo flanges, Reducing flanges, Expander Flange.

Equivalent Grades of Alloy 20 Steel Flanges
STANDARDWERKSTOFF NR.UNSAFNOREN
Alloy 202.4660N08020Z2NCUD31-20AZNiCr20CuMo

Mechanical Properties of Alloy 20 Steel Flanges
ElementAlloy 20
Density8.1 g/cm3
Melting Point1443 °C (2430 °F)
Tensile StrengthPsi -80,000, MPa -551
Yield Strength (0.2%Offset)Psi - 35,000, MPa - 241
Elongation30 %

Chemical Composition of Alloy 20 Steel Flanges
ElementAlloy 20
Ni32 - 38
FeBal
C0.02 max
Mn1 - 2
Si0.7 max
Cu3 - 4
Cr19 - 21
Mo2 - 3
S0.005 max
P0.02 max
Nb0.1 - 0.3
Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317, 317L, 321, 347, 904L
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625
Incoloy :
Grade: Incoloy 800, Incoloy 800H, Incoloy 800HT
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Hastalloy :
Grade: Hastalloy C22, Hastalloy C276
Nickel :
Grade: Nickel 200, Nickel 201
Copper Nickel Alloy:
Grade : Copper Nickel Cu-Ni 90 / 10 (C70600)
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61
Delivery:

Port:Tianjin/Shanghai/Ningbo
Lead Time :



Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15-30 To be negotiated



Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type SW/WN/SO/BL/TH Flanges
ModelNumber Steel Flange Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin

Commerce Clause


Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

Why Choose Us

1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
