Categories | Corrugated Box Stitching Machine |
---|---|
Brand Name: | JCS |
Model Number: | JCS-DXDP-2000 |
Certification: | CE certificate |
Place of Origin: | Made In China |
MOQ: | 1 Set |
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 Sets/Month |
Delivery Time: | 15 Days |
Packaging Details: | Wrapped With Film |
Condition: | New |
Warranty: | 1 Year |
Weight: | 2T |
Automatic Grade: | Semi-Auto |
Voltage: | 220V/380V/440V |
Power: | 2.2KW |
Type: | Corrugated Paperboard Box Making Machine |
Sales Market: | All Around The World |

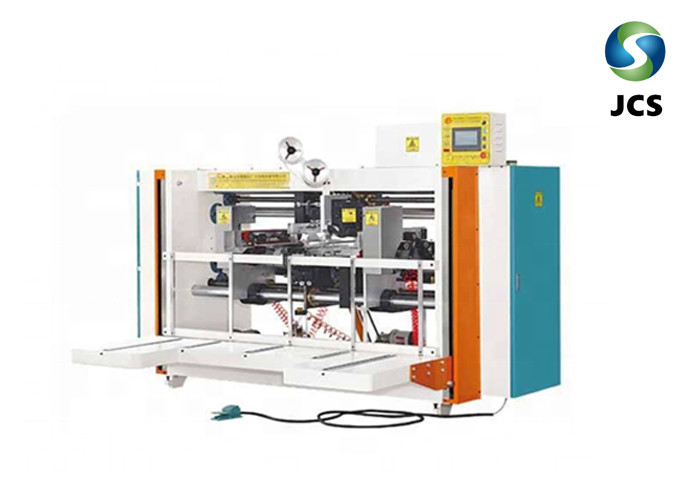

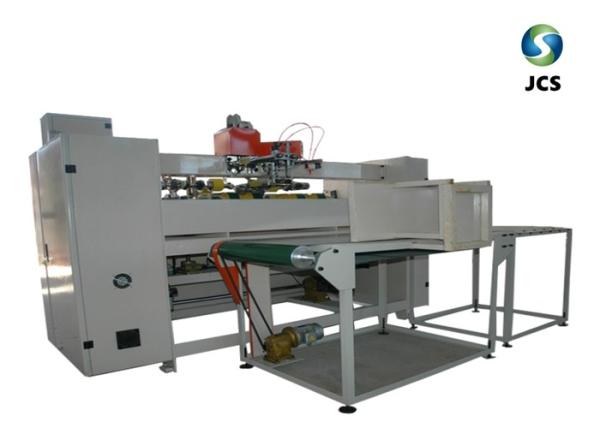

Semi Automatic Corrugated Carton Box Stitching Machine / Electric Stapler
Use and Characteristics
1. It can nail single nail double nail, strengthen nail completed
in one-time, can be suitable for different kinds of customer
requirement of nail.
2. It can be changed size quickly in one time, can be operated
easily and not had to experience.
3. Paper feeding section can automatic counting, send after the
bundle into the bundle.
4. It is man-machine interface control for convenient operation.
5. Back-automatic counting. The finished products done can be sent
to the end of conveyor by setting the number(1-99)
6. Semi-finished products nailing to the finished products
displayed only need two operators. This can operate simply and
reduce wages.
Data
Max (L+W)*2 | 2460mm | Power | 4HP |
Min (L+W)*2 | 606mm | Length | 2800mm |
Max (L+W)*2 | 2460mm | width | 2600mm |
Min (L+W)*2 | 606mm | Weight | 2000kg |
Height of feeder | 900mm | Stitching pitch | 30-100mm |
Speed | 400/stitches/min | Number of stitching | 1-99 stitches |
![]() |
