Categories | Paper Making Machine |
---|---|
Brand Name: | HUATAO |
Model Number: | HUATAO-001 |
Certification: | ISO9001:2008 |
Place of Origin: | China |
MOQ: | 1 pc or 100kg |
Price: | Price accept negotiation |
Payment Terms: | L/C, T/T, MoneyGram, D/P, Western Union |
Supply Ability: | 10000m2 per month |
Delivery Time: | 10-15 days |
Packaging Details: | 50mm x 50mm x *length wooden box package |
Material: | Polyester |
Color: | Blue/green/white |
Width: | Max13 meters |
Lifetime: | 3-6 month |
Layers: | Single layer, 2.5 and triple layer |
Fiber Support: | High |
Application: | Paper Making |
Company Info. |
HUATAO LOVER LTD |
Verified Supplier |
View Contact Details |
Product List |
Forming fabric are designed to retain as much fiber components as possible, meanwhile allowing water to drain through them.
Forming fabric can be divided into single, 1.5, double, 2.5, triple (SSB) layer. Which applicable to the machine speed up to 2000m/min.
Forming fabric is characterized by smooth surface without edge curl, good stability and less elongation, unique drainage channel without leaking,
good runnability with low load, good fiber support and excellent formation, good life potential.
Fabric code | Warp density | Weft density | Warp Dia (mm) | Weft Dia (mm) | Permibility | FSI | DI |
---|---|---|---|---|---|---|---|
HT40203 | 40.5~41.5 | 29.5~30.5 | 0.15 | 0.20 | 285CFM | 135 | 14.1 |
HT25284 | 27.5~28.5 | 22.0~23.0 | 0.22 | 0.28,0.28 | 400CFM | 86 | 11.4 |
HT25305 | 27.5~28.5 | 21.5~22.5 | 0.22 | 0.30,0.30 | 505CFM | 77 | 11.3 |

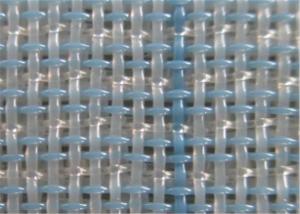

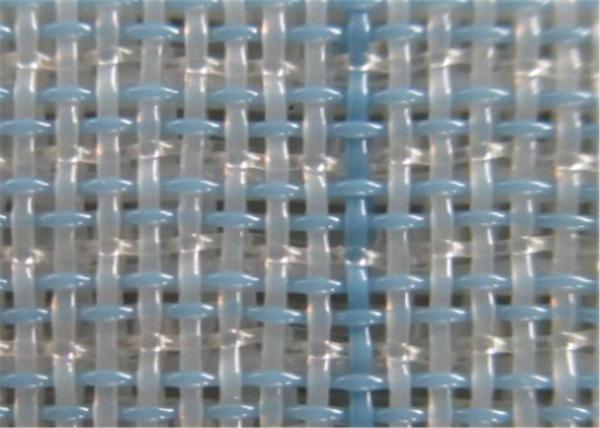

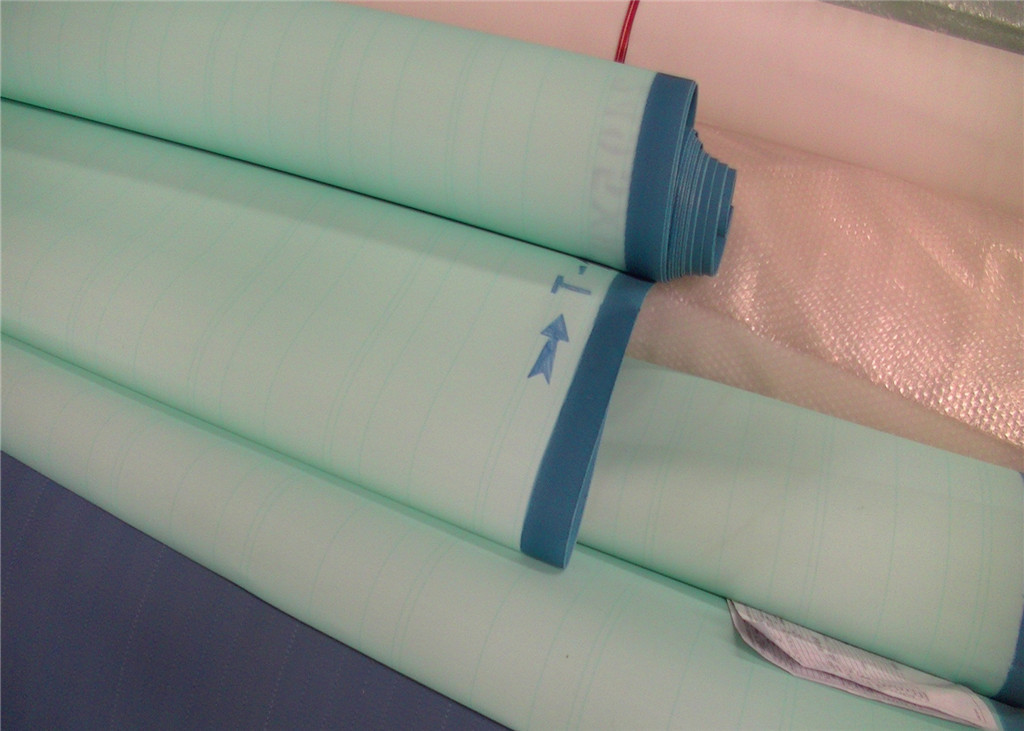

Product Pictures:
![]() |
