| Categories | CNC Plasma Cutting Machine |
|---|---|
| Brand Name: | Yahong |
| Model Number: | YH2060 |
| Certification: | ISO / CE |
| Place of Origin: | Jiangsu, China (Mainland) |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200pcs per month |
| Delivery Time: | 7 days after received your payment |
| Packaging Details: | lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood. |
| Product Name: | Samll Gantry CNC Flame Cutting Machine |
| Cutting Material: | Stainless steel , aluminum , iron , carbon steel |
| Effective Cutting size: | 2000*6000mm |
| Cutting Speed: | 0-8000mm/min |
| Plasma Cutting Thickness: | 0.5--20mm ( Depends on plasma power source capacity) |
| Cutting Mode: | Plasma / Flame |
| Height Control: | Arc voltage height control |

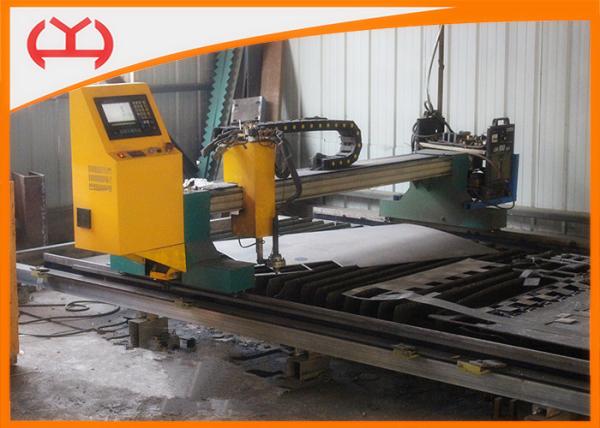

Multiple cutting torches Cnc Aluminum Plasma Cutting Machine Bilateral Drive
Description:
1. This model uses bilateral drive mode so that the machine can operate smoothly, have high locating accuracy and simple & good appearance.
2. Strong exchange ability and equipment function be expanded more simply & conveniently.The user can configure plasma cutting torches in different sizes according to the process requirements.
3. The equipment has been in the shipbuilding industry, heavy machinery, chemical equipment, boiler manufacturing, locomotive, petrochemical, mining equipment and other manufacturing industries widely used .
Software:
FastCAM is design for CNC cutting and powerful CAD softward, has read into CAD DXF file selection and output NC files of different types of controllers significantly increase cutting speed and cutting quality.
Features of plasma cutting machine:
1. Simple and easy to learn, and convenient interface.
CAD graphics through the conversion software automatically generate the cutting path, automatically identify inside cutting or outside cutting, and automatically generated the inlet and outlet leading wire. Reasonable sorting, inside the hole is preferred.
It adopts built-in and external U-disk manner, and transfers the documents through external U-disk to built-in U-disk. Even if the power is turned off, the data won’t be lost. To store the data through compression code method, this can greatly improve the quality of storage and has random encryption to ensure the data security.
2. Easy to manipulate and maintain.
Friendly interface, random tip the operation methods, simple English keyboard, and quick operation at a glance. Interface indicator can provide fault diagnosis.
3. Reasonable price with super quality and compact structure.
Reasonable arrangements for the space-saving, compact robust design of the structure, making the machine run more smoothly to ensure the cutting quality.
4. Increasing the anti-interference processing, maximum to avoid the failure rate.
Technical Parameters for Small Gantry CNC Cutting Machine:
| 1 | Cutting shape | Steel plate with any plane shapes fromed by straight lines and arcs |
| 2 | LCD Display Dimension | 7.0 Inches |
| 3 | Effective Cutting Size | 2000*6000mm |
| 4 | Railway Size | 2500*7000mm |
| 5 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 6 | Flame Cutting Thickness | 5--200mm |
| 7 | Lifting body | 1 lifting body standard |
| 8 | Cutting Speed | 0-8000mm per minute |
| 9 | Height Control | Electric Height Control+Arc Voltage Height Control(THC) |
| 10 | Drive Mode | Bilateral drive |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | File transmission | USB transmission |
| 14 | Gas Pressure | Max. 0.1Mpa |
| 15 | Oxygen Pressure | Max.0.7Mpa |
| 16 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 17 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 18 | Cutting accuracy | ±0.5mm |
| 19 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 20 | Rated Power Supply | 1500W |
| 21 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Firstly, packed the machine with plastic sheet for clearing and damp proofing.
Secondly, then put machine in the plywood case for safety and clashing.
Thirdly, transport the plywood case into the container.
Cutting Samples:
|
