| Categories | Glass Bottle Filling Machine |
|---|---|
| Brand Name: | Ellison |
| Model Number: | RCGF 12-12-4 |
| Certification: | CE/ BV / ISO |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 set |
| Price: | Negotiated |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 7 sets per month |
| Delivery Time: | 50 working days |
| Packaging Details: | Standard export wooden case or pallet package |
| Name: | Glass Bottle Filling Machine |
| Feature: | High Speed |
| Bottle type: | Glass bottle 550ml |
| Cap type: | Twist off cap |
| Filling range: | Within 750ml |
| Filling paressure: | Gravity filling |
High Speed Glass Bottle Filling Machine For Fresh Juice / Concentrate Juice
Glass Bottle Filling Machine Description
Water bottle filling machine is used to fill drinking water into plastic bottles. The filling range can be from 150ml-2000ml with the same bottle necks. All the changeovers are updated into one piece which is convenient for client operation.
Glass Bottle Filling Machine Quick detail
| Project name | Juice filling machine |
| Machine structure | 3 in 1 washing filling capping machine |
| Bottle type | Glass bottle |
| Cap type | Twist off cap |
| Juice type | Fresh juice / concentrate juice / Fruit puree |
| Juice temperature | Hot temperature |
Samples : Project: 4500BPH Juice production line (machine list)
1, Juice filling system
| Machine description | Model | Size | Power | Qty. | ||
| mm | kw | |||||
| Monoblock 4 in 1 washer-filler-capper machine with CIP connector | RCGF12-12-12-6 | 3500*2800*2400 | 12.79kw | 1 set | ||
| Lubrication system | / | / | 1suit | |||
| Belt conveyor | SYS-1 | 6m | 1 set | |||
| Light checker | DJ-1 | 1m | 1 set | |||
| Recycling system | Including: return pump, vacuum pump, return tank and high position tank (mixing tank) | 1suit | ||||
| Cap elevator | / | / | 0.43kw | 1set | ||
2, Packing system
| Machine description | Model | Size | power | Qty. | |||
| mm | kw | ||||||
| Warming tunnel / cooling tunnel | PL-1200 | 13000*2200*1780 | 10.05kw | 1 | |||
| Bottle dryer | CG-1000 | 1100*670*1780 | 7.5kw * 2sets | 2sets | |||
| Automatic sleeve labeling machine | TB-150 | 2000*850*2000 | 26.78kw | 1set | |||
| Steam shrink tunnel | SB-800 | 1800*450*1850 | 1set | ||||
| Steam boiler | 24KW | 630*550*1000 | 1set | ||||
Ink date printer Brand: America videojet | VJ-1210 | 345*285*541 | 0.01kw | 1set | |||
| Automatic PE film shrink packing machine | 10packs/min | 6000*1100*2100 | 27kw | 1set | |||
| Air compressor | / | / | / | 1set | |||
Glass Bottle Filling Machine Video for ref
| Flavor milk beverage filling capping machine for glass bottle (taken from client's factory) | https://youtu.be/I6FnmWdh1KQ |
| 1L glass bottle juice filling-packing line (taken from client's factory) | https://youtu.be/E7u3OGgnRCY |
| 330ml Glass bottle bean milk drink filling machine 32 head | https://youtu.be/sVcDiG2DLGo |
| 10000BPH Glass bottle filling machine (hot juice filling machine) | https://youtu.be/aI-r9Wymlzw |
| 8 head juice filling machine with twist off cap | https://youtu.be/xmb8fmcyaRs |
| 1L glass bottle mango juice filling capping machine | https://youtu.be/5vbqAgupR1w |
| Glass bottle twist off cap juice hot filling capping machine | https://youtu.be/pCpBr0605yk |
| Fresh juice glass bottling capping machine (taken from Client's factory) | https://youtu.be/hio_2X6TFZY |
| 1L square glass bottle juice bottling filling equipment (taken from client's factory) | https://youtu.be/FH9z-OcxnKc |
| 4 in 1 Glass bottle juice filling capping machine with twist off cap | https://youtu.be/4NS9H-mXt7U |
| Glass bottle juice filling machine with aluminum screw cap | https://youtu.be/Gn5MeL09OWs |
More videos, pls go to download: Video link in youtube.pdf

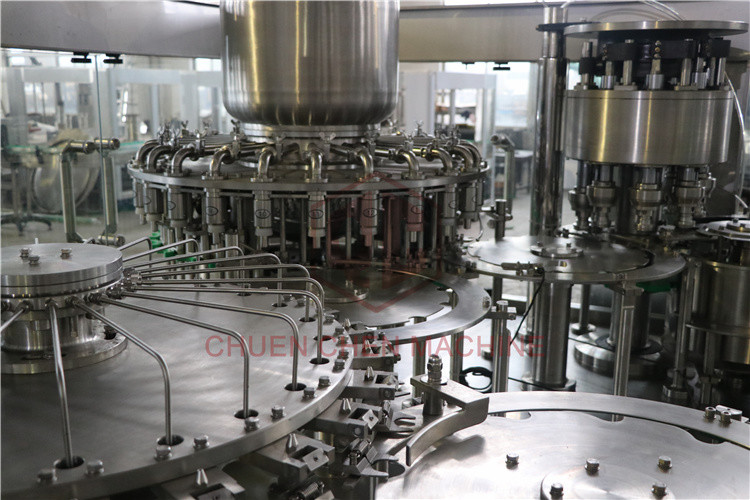

Glass Bottle Filling Machine photos
