220V PCB Conveyor Horizontal Type High Speed Couplet In line Plug In Type

Categories SMD Assembly Machine
Brand Name: JAGUAR
Model Number: JAGUAR-A30C-AS-IN
Certification: CE
Place of Origin: CHINA
MOQ: 1 set
Price: Negotiation
Supply Ability: 2 Sets Per Week
Delivery Time: 10-15 working days
Packaging Details: Plywood Case, 2000 x 1700 x1700mm, 3sets per 20GP
Name: Insertion Machine ; Insert Machine ; Plug-in Machine
Usage: PCB Assembly ; Plug-in
Application: SMT ; DIP ; SMD
Customer: PCB manufacturer
Function: Component Insert ; Plug-in ; Through Hole
Power Supply: 220V
Feeder: 20
PCB Size: Minimum 50mm*50mm ; Maximum 285mm*350mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

220V PCB Conveyor Horizontal Type High Speed Couplet In line Plug In Type

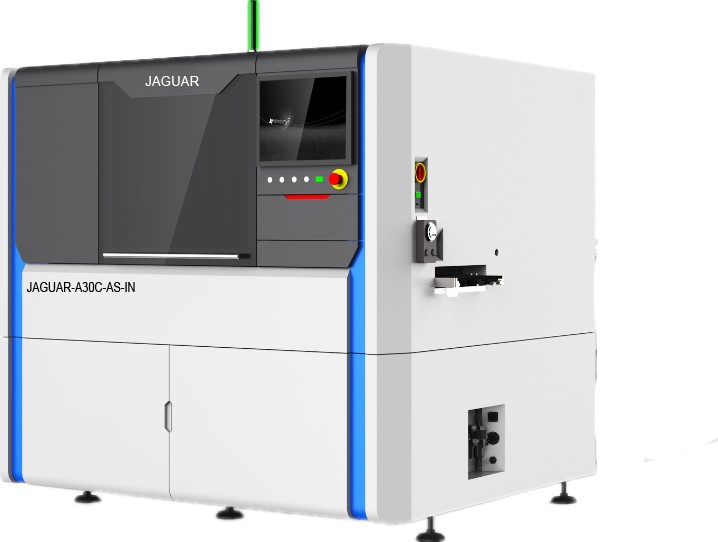

JAGUAR-A30C-AS-IN Horizontal Couplet In-line Insert Machine 20 Feeder

Through-hole technology is a traditional electronics PCB assembly technology, it has been plagued by high participation of manual operating, up to now, the contradiction between manpower shortage and demand is getting bigger and bigger, how to reduce manual operating? the answer of course if machine. JAGUAR-A30C-AS-IN is a widely application insert machine, suitable for most horizontal plug-in components.



ModelJAGUAR-A30C-AS-IN
Max Speed19000CPH
Insert Direction4 directions: 0°,90°,180°,270°
Alignment SystemPassive clamp + CAM alignment
Components SpeedComponent 5.0mm~20mm(Jumper 5mm~22mm )
PCB SizeMinimum 50mm*50mm,Maximum 285mm*350mm
PCB Thickness0.79~2.36mm
Conveyor Height900mm
Conveyor Width50mm-285mm(adjustable)
Component TypeCapacitor;transistor;diode;resistance;inductance;fusewire and so on tape packaging materials
Jumper (JW)Independent transmission mode. Diameter: 0.5mm~.6mm tinned copper wire
Insert Bending Length1.2-2.2mm(adjustable)
Appearance SizeL1800xD1450xH1500 mm
Feeder Station Size2000mm× 1000mm× 1500mm
Feeder Capacity20
Weight1200kg
Power Supply220V,AC(Single phase)50/60HZ,1.5KVA;
System ProtectionConfigure UPS
Power Consumption1.5KW(Energy-saving type)
Environmental conditionsAmbient temperature 5~25 degrees
Machine noise:60 decibels
Hole Correction ModeMachine vision system
Drive systemAC servo AC motor
Delivery ModeDouble chain and double servo drive
Data InputUSB interface input (EXCEL document format)
Control systemChinese operating interface (WINDOWS system control platform) LCD display
Control ModeAutomatic and semi-automatic
Feeding ModeMotor feeding board left to right (optional right to left)
Programming ModeManual programming

  • Max Speed:19000CPH
  • Insert Direction: 4 directions: 0°,90°,180°,270°
  • Alignment system: passive clamp + CAM alignment
  • Components Speed:Component 5.0mm~20mm(Jumper 5mm~22mm )
  • PCB Size:Minimum 50mm*50mm,Maximum 285mm*350mm
  • PCB Thickness:0.79~2.36mm
  • Conveyor Height: 900mm
  • Conveyor Width:50mm-285mm(adjustable)
  • Component Type:capacitor,transistor,diode, resistance,inductance,fuse wire and so on tape packaging materials
  • Jumper (JW): independent transmission mode. Diameter: 0.5mm~.6mm tinned copper wire
  • Insert Bending Length :1.2-2.2mm(adjustable)
  • Appearance Size: L1800xD1450xH1500 mm
  • Feeder Station Size:2000mm× 1000mm× 1500mm
  • Feeder Capacity: 20
  • Weight:1200kg
  • Power Supply:220V,AC(Single phase)50/60HZ,1.5KVA;
  • System Protection:Configure UPS
  • Power Consumption:1.5KW(Energy-saving type)
  • Environmental conditions: ambient temperature 5~25 degrees
  • Machine noise: 60 decibels
  • Hole Correction Mode: machine vision system
  • Drive system: AC servo AC motor
  • Delivery Mode: double chain and double servo drive
  • Data Input: USB interface input (EXCEL document format)
  • Control system: Chinese operating interface (WINDOWS system control platform) LCD display
  • Control Mode: automatic and semi-automatic
  • Feeding Mode: motor feeding board left to right (optional right to left)
  • Programming Mode: manual programming

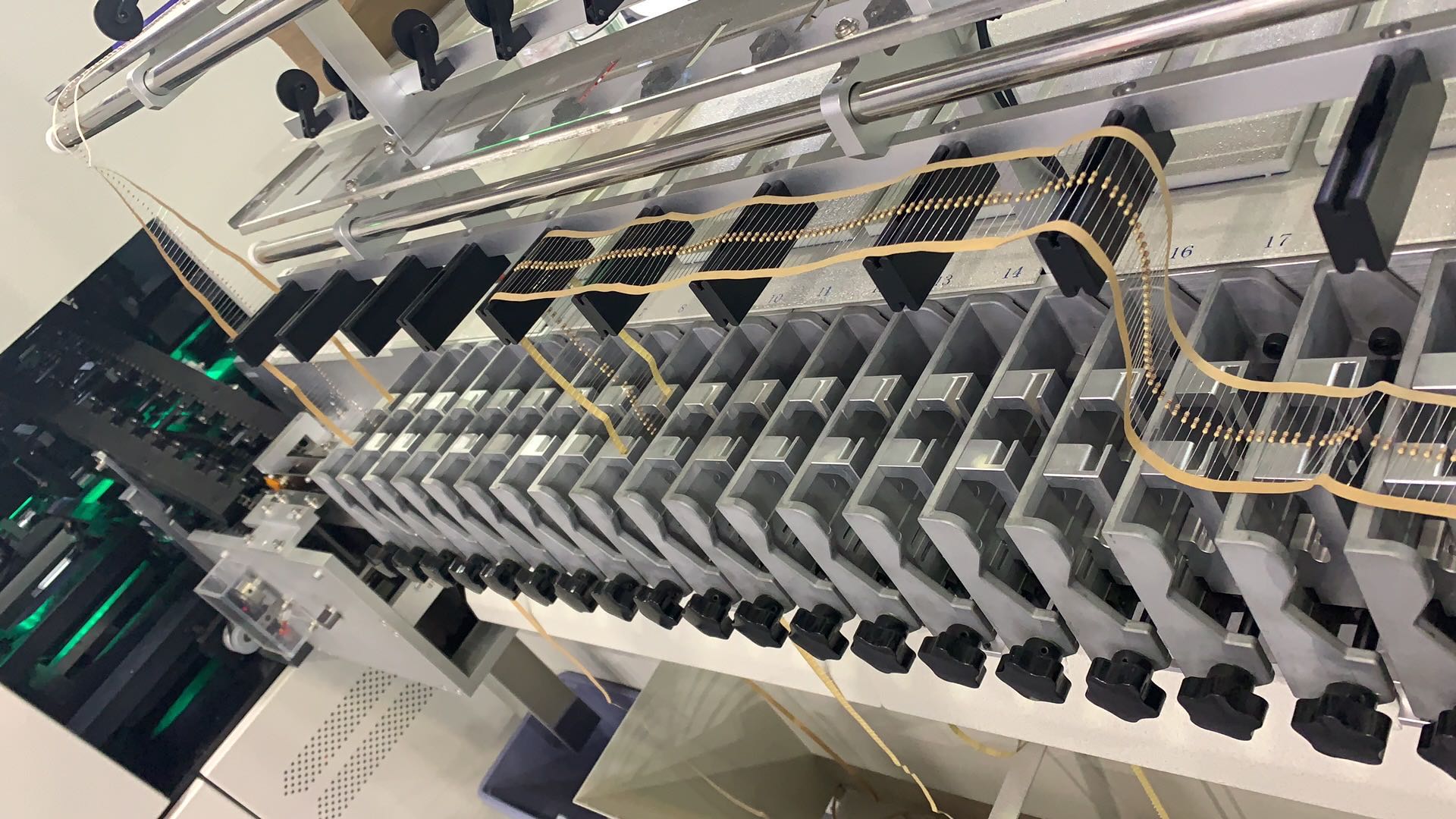

FEEDER STATION:


Applicable Components, For Example:

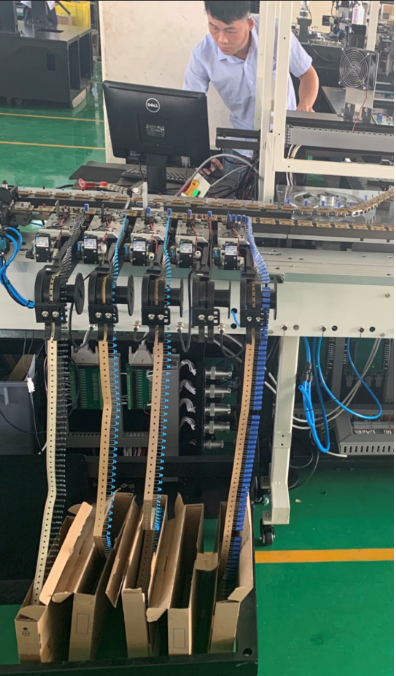

Working Picture

Please contact me if you have inquiry!
