LED Production Solder Reflow Oven , Energy Saving Reflow Soldering System

LED Production Solder Reflow Oven , Energy Saving Reflow Soldering System

LED Production Solder Reflow Oven , Energy Saving Reflow Soldering System
LED Production Solder Reflow Oven , Energy Saving Reflow Soldering System
Categories SMT Reflow Oven
Brand Name: Jaguar
Model Number: R10
Certification: CE ISO9001
Place of Origin: China
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2 + Set + per Day
Packaging Details: Wooden Case ; 4800x1300x1690mm ; 1Set Per 20GP
Mesh Wideth: 400mm
Max PCB Size: 300mm
Conveyor: Mesh Belt and Chain Conveyor
Usage: SMT ; LED ; SMD ; And Son on
Control: PID + PC
Name: Furnace ; Welding Machine ; Heating Machine
Application: PCB Assembly
Heating Method: Up Hot Air Bottom Hot Air
Heating Zone: 8
Other: Accept Customize
Contact Now
Company Info.
Shenzhen Jaguar Automation Equipment Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LED Production Solder Reflow Oven , Energy Saving Reflow Soldering System

Economic Lead Free Hot Air Reflow Oven M8 Up 8 Hot Air Bottom 8 Hot Air Heating Zone PC Control

  • JAGUAR's M8 Lead-free Hot Air Reflow Oven, is one of JAGUAR Economic Series, also is a Basic model of Reflow Oven.
  • Compact machine size can meet some customer's compact plant space.
  • Independent up and bottom heating for Pre-heating Zone, Soldering Zone and Cooling Zone
  • Independent recycle, Independent temp. control, Independent cooling zone
  • Modular design, convenient to maintenance
ModelJaguar M8
Heating System
Number of heating zonesTop 8/Bottom8
Heating passage2900MM
Heating styleTop: Hot Air ; Bottom: Hot Air
Cooling styleForce air
Conveyor System
Max. Width of PCB300mm
Mesh belt width400mm
Conveyor DirectionL→R(or R→L)
Process Height880±20mm
Conveyor typeMesh Belt and Chain Conveyor
Conveyor speed0-1000mm/min
Fixed trackFront track fixed(option: rear track fixed)
Control System
Power supply5 line 3 phase 380V 50/60Hz
Total power consumption26kw
Startup power consumption20kw
Steady consumption5-8KW
Ramp Up timeAbout 25 mins
Temp. setpointRoom temperature-300℃

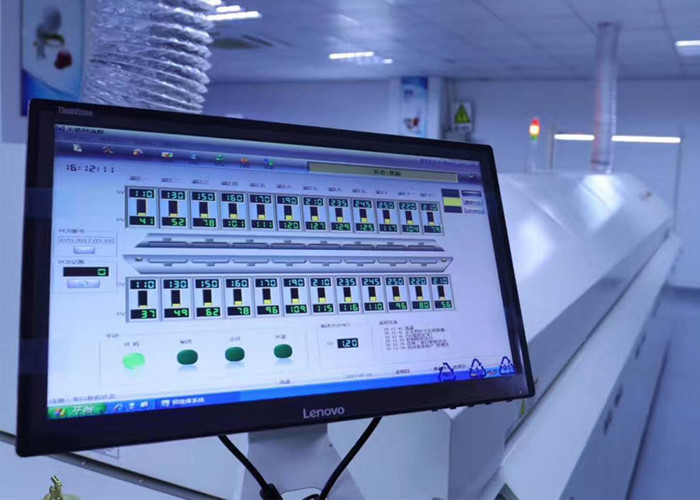

Temp. control methodPID close loop control + PC
Temp. control precision±1.5℃
Temp. deviation on PCB±2℃
Data storage

Process Data and status storage

(80 GB)

Nozzle plateAluminum Alloy Plate
Abnormal AlarmAbnormal temp. (overtemp/low temp.)
Board dropped alarmTower light: Amber-warning, Green-normal, Red-abnormal
General
Dimension(L*W*H)4600×1100×1490mm
Weight1000KG
ColorComputer grey
Advantages
The Unique Advanced Long Life Heating System
1. The heating system use Jaguar's patented heating technology.
2. Use international famouse brands high voltage SSR, non-touch output, safe and reliable, configure special radiator, radiation efficent greatly improved, and it's service life is effectively extended.
3. The heater use international high quality components, ensure whole system's high stable and reliable, to ensure the longer service life.
4. Combined temp. contoller's special PID's fuzzy control funtion, always monitor extenal temp. and heat value changes, the heating device is controlled with minumum pulsation, react quickly, to ensure temp. control precision, machine's internal temp. distribution error is very small, temp. distribution comforms to the IPC standard.
5. PC+PID intelligent computing precision controller, through PID intelligent computing, to control heating volume automaticly, fuzzy control function to respond the change in external heat with the fastest speed, and through internal control to ensure temp. more balance.
