| Categories | Solenoid Control Valve |
|---|---|
| Brand Name: | NAESEL |
| Model Number: | NL070613 |
| Certification: | CE ROHS ETL VDE etc. |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 10000PCS Per Month |
| Delivery Time: | 1-5 days |
| Packaging Details: | Solid paper carton and pallet packing |
| Application: | fuel, diesel, air, etc. |
| Pressure: | Medium 0-1.6mpa(0-230psi) |
| Power: | Solenoid and pneumatic |
| Structure: | direct acting |
| Fluid: | fuel diesel, air etc. |
| Temperature: | -30°C to 120 °C (EPDM) |
| Coil: | IP65 Standard, 100% tested |
| Coil Power: | DC6.5W |
| Life time: | 100,0000 times |
| Port Size: | 1/8"BSPP |
| Thread: | G/BSPP |
| Orifice: | 2.0mm |
| Warranty: | 1 and half year |

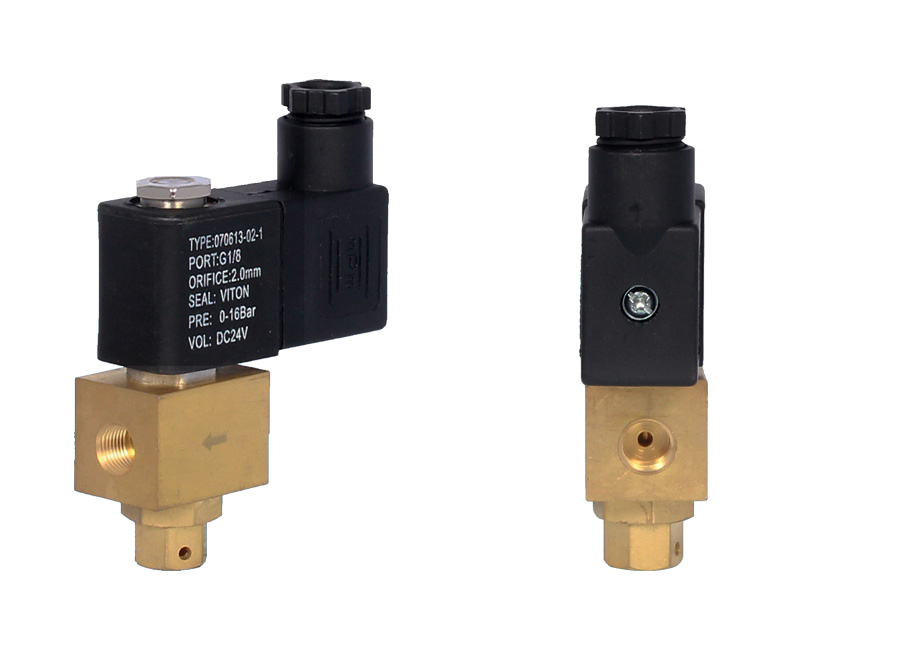

flow adjustable solenoid valve for fuel diesel oil 1 / 8 inch bspp
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NL070613 2.0 1-1/8" G- G B-Brass V-FKM S81B 1-DC12V 2.DC24V
2.5 E-EPDM
Flow adjustable solenoid valve for fuel diesel oil 1 / 8 inch bspp
Example : NL070613 GBV S81B1: NL070613 Series, Normal closed, 2.0mm orifice, G1/8", brass, Viton seals, AC220V.
2.Solenoid Valve Specification
Medium: Air, fuel, diesel etc. Temperature: EPDM seal:-30℃~120℃(-22℉~248℉)
Orifice: 2.0, 2.5 (mm) Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NL070613:0.00MPA~1.6MPA (0.0PSI~230PSI) Port thread: G Thread
Port size: 1/8”.
Voltage: DC:12VDC, 24VDC Coils: S81B, 6.5W(DC),Coil IP65,100%ED
Tolerance: ±10% Character: 1. Compact design to save the space.
Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.
Seal- VITION, NBR,
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Dimension
4. Specification Detail
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| DC(6.5W) | ||||||||
| NL070613XXX | 1/8" | 2.0 | 0.14 | 0.00Mpa | 1.6Mpa | Brass | Viton EPDM | S81B |
| NL070613XXX | 1/8" | 2.5 | 0.21 | 0.00Mpa | 1.6Mpa | S81B |
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
