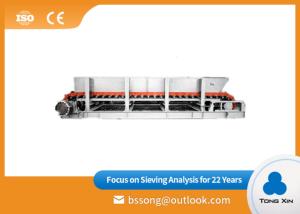

Heat Resistant Table Top Chain Conveyor Continuous Large Conveying Capacity

Xinxiang Tongxin Manufacture Chain Plate Conveyor 20 Years Experience Soil

Introduction

Chain scraper conveyor is powder or small granular conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains.

By means of moving chains, it can continuously transport the materials in closed rectangular casing horizontally or at a slight incline.

Specifications

Features

1. Reasonable structure;

2. Large Conveying capacity;

3. Small Power consumption;

4. Less wear;

5. Reliable work;

6. Ideal waste paper transportation equipment.

Application

Widely used in food, canned food, medicines, beverages, cosmetics and cleaning products, paper products, condiments, dairy and tobacco and other automatic transmission, distribution, and transportation connections after-packaging.

Working Principle

There are internal frictional forces and internal pressures between the particles of the bulk material.

They are subjected to the pulling force in the same direction as the movement caused by the movement of the conveyor chain in the slot of the chain conveyor, so that the internal friction and internal pressure between the bulk materials Increase, when the internal friction is greater than the friction between the material and the groove wall, the material moves forward under the conveyance chain.

When the ratio of the height of the layer to the width of the groove meets certain conditions, the flow is stable. The material rate is approximately equal to the chain speed.

Technical Parameters

Our Advantage

The product of Tongxin company can be sent to the Quality and Technical Supervision Bureau for mesh detection, if not in line with the national standards for you free return and replacement. The follow picture is our quality inspection report.

Our Service

1. We Provide video installation instructions;

2. We offer 24-hour online consulting service;

3. 20 years production experience to ensure quality;

4. We have thorough data to ensure the quality;

5. We provide detailed instruction an product information;

6. We provide 12 months quality warranty.

If you want to get more information of product, please contact us!

    Xinxiang Tongxin Machinery Co. LTD. was established in 1996, mainly design and manufacture vibrating screen equipment, conveying equipment, lifting equipment, mixing equipment, dust removal equipment and other kinds of powder equipment.

    After more than 20 years development with the support of governments at all levels, we have 2 senior engineers and several intermediate or junior engineers with independent design and development capabilities. Xinxiang Tongxin Machinery has plant covers an area of more than 2000 square meters and office building covers an area of 800 square meters with 50 years of property rights to laid a firm foundation for a long-term stable service.

    Xinxiang Tongxin Machinery has a variety of CNC machining equipment, such as machining center, CNC lathe, CNC gantry drilling machine, CNC welding machine, CNC laser cutting machine, CNC bending machine, CNC plate shearing machine, large wave folding machine, metal netting machine, etc., we have now reached automatic production of blanking, welding, machining and other processes by cooperating with a large number of tools and molds to form an automated production line, and is committed to gradually realizing data interconnection and unmanned intelligent production. The use of automation equipment has greatly improved the production efficiency, and reduced the cost of a single machine, so that Xinxiang Tongxin Machinery in the premise of quality assurance to the general customers.

    The designers of Xinxiang Tongxin Machinery are committed to meet the differentiated requirements of different users, we provide customized design services, improve product adaptability, optimize the cost performance from the deep understanding of the product working principle and user process. At the same time, Xinxiang Tongxin Machinery is equipped with a large number of testing and experimental equipment for the product delivery test to ensure the product consistency and stability and provide a high-precision products to users.

    At present, Xinxiang Tongxin Machinery has been exported to 46 countries on 5 continents, including North America, Europe, Southeast Asia, South America, West Asia, Middle East and Africa and we have over 13,000 active users in China. The main users include international famous enterprises and advanced scientific research institutions, the most representative are Air China, CICC, China Metallurgical Group Corporation, CNPC, Sinopec, Charoen, Pokphand, Chinese Academy of Sciences, China National Medical Administration and so on.

    The tenet of Xinxiang Tongxin Machinery is: "with superb technology to deeply understand the needs of users, continue to improve the quality, provide a full line of customization. With high quality, first-class service to fulfill the commitment to customers ". All the staff of our company are committed to providing high quality service for customers.

    In 2016, Xinxiang Tongxin Machinery was successfully listed on the new fourth board.
