Categories | Woven Wire Mesh |
---|---|
Brand Name: | KAAP |
Model Number: | KP2019122001 |
Certification: | ISO9001,SGS |
Place of Origin: | Hebei,China |
MOQ: | 300㎡ |
Price: | Negotiable |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 30000 Square Meter/Square Meters Per Month |
Delivery Time: | 15-20days after deposit |
Packaging Details: | Waterproof Paper or Plastic Film etc. |
Material: | Stainless Steel Wire,316,304L,stainless steel 304 |
Type: | Weave Wire Mesh,Rope Mesh,Ferruled mesh,Knitted Wire Mesh |
Wire diameter: | 1.2mm-4mm |
Aperture: | 20X20mm,76X76mm,120X120mm ,etc |
Color: | Silver |
Sample: | Free,Avaliable |
Size: | Customized Width and Length |
Application: | Protecting Mesh,Woven Wire Mesh,decorative,wildlife park etc. |

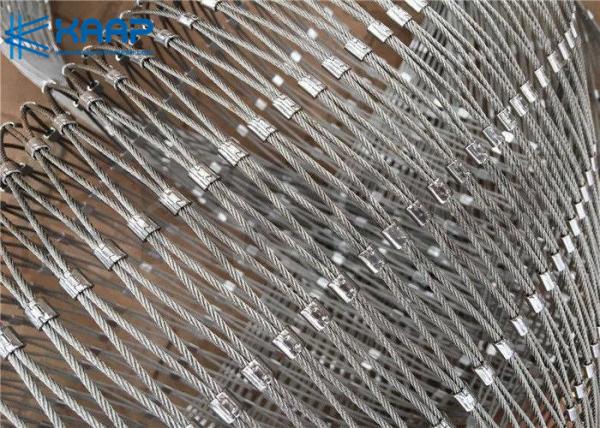

The mesh also called stainless steel cable mesh, stainless steel cable netting, stainless steel rope mesh, wire rope mesh, wire cable netting, zoo mesh, wire rope woven mesh.Stainless steel rope mesh with ferrules has the same function as the one of plain weave. Ferrule is also made of the same material as the rope. It connects the two neighboring ropes and forms diamond opening. Stainless steel 304 and 316 are available.
Features:
Stainless steel rope never rusts.
Recyclable and durable.
High strength to bear huge impacts.
Applications:
Animal enclosure - zoo wire mesh, tiger enclosure, monkey enclosure, lion cage.
Aviary - macaw, parrot and medium to large birds.
Architecture - balustrade, railing, window guard, decorations, etc.
Specifications
Rope Construction | Min. BreakingLoad( KN ) | Wire Rope Diameter | Aperture |
7×7 | 5.315 | 2.4 | 76×76 |
7×7 | 5.315 | 2.4 | 102×102 |
7×19 | 8.735 | 3.2 | 51×51 |
7×19 | 8.735 | 3.2 | 76×76 |
7×19 | 8.735 | 3.2 | 102×102 |
![]() |
