Steel Standard Rail Fish Plate Mobile Crane Components For Crane Rail Running

Categories Steel Crane Rail
Brand Name: NANTE
Model Number: fish plate
Certification: ISO
Place of Origin: China
MOQ: 50pc
Price: 3-40usd/pc
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000000 Pieces Per Year
Delivery Time: 30 days
Packaging Details: nude
Standard: Uic, Arema, ASTM, BS, Tb
Material: Carbon Steel
Transport Package: on Pallets or Seaworthy Packing
Specification: 4, 6holes
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Steel Standard Rail Fish Plate Mobile Crane Components For Crane Rail Running

Steel Standard Rail Fish Plate Mobile Crane Components For Crane Rail Running

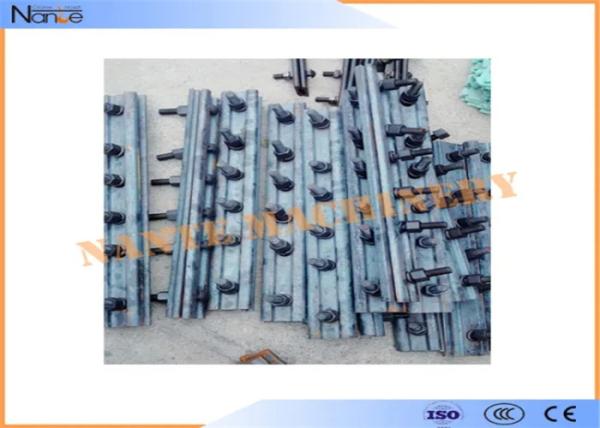

Crane rail Accessories - Fish Plate for P rail / QU rail

Crane rails are designed for carrying heavy loads and are used in a wide variety of applications. There are seven normal crane rail models called P18, P24, P38, P43, QU70, QU80, QU100 in China. Rail weight ranges from 18kg to 88kg per meter. You can find a weight and measure conversion table on to us if you need.



Each rail application is different and must be engineered to maximise efficiency and lifespan, therefore the selection of the correct rail is critical to achieving this end.


TypeCBADWeight (kg/m)Standard
P184080901018.06YB222-63
P24519210710.924.46YB222-63
P2250.893.6693.6610.7222.3GB11264-89
P3060.33107.95107.9512.330.1GB11264-89
P38681141341338.72GB183-63
P437011414014.544.65GB183-63
P507013215215.551.51GB 183-63
QU70701201202852.8GB3426-82
QU80801301303263.69GB3426-82
QU1001001501503888.96GB3426-82
QU12012017017044118.1GB3426-82

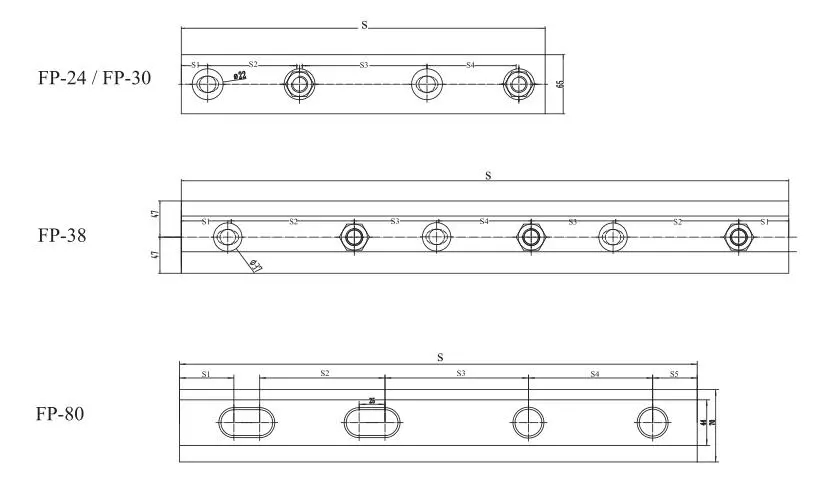

ModelS
(mm)
S1
(mm)
S2
(mm)
S3
(mm)
S4
(mm)
S5
(mm)
Rail Size
FP-24400299813798-P18/ P22/ P24
FP-3049036128127128-P30
FP-3879065160110120-P38/ P43
FP-8050052.5121138.512043QU70/ QU80
