| Categories | Android Touch Panel PC |
|---|---|
| Brand Name: | axnew |
| Model Number: | AXD-10OPN1P1-T5 V3C2 |
| Certification: | CE rohs |
| Place of Origin: | China |
| MOQ: | 10 Units |
| Price: | US$200-400/Unit |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 2200 units/month |
| Delivery Time: | 5-7 working days |
| Packaging Details: | 5 units/carton |
| Name: | 10 inch capacitive andriod touch panel pc |
| Screen: | 10 inch 1280x800 IPS screen |
| Andriod board: | Rockchip ARM Cortex A17 RK3288W Quad core 1.8GHz |
| Memory: | 2G DDR3 |
| Flash: | 8G |
| Video Outputs: | AV; HDMI; LVDS output |
| LAN: | RJ45 |
| Ports: | USB;RS232 rs485 could be options |
| Touch: | 10 points projected capacitive touch |
| DC: | 8v-40v |
| Company Info. |
| AXNEW DISPLAY TECHNOLOGY CO.,LTD |
| View Contact Details |
| Product List |
16:10 RK3288W Quad core Small Android Touch Panel PC with 5.1 or linox o.S
| Panel PC information | |
| Model Number | AXD-10OPN1P1-T5 V3C2 |
| 10.1’’ Andriod Touch panel pc | |
| Case/Bezel Color | Black |
| TFT Type | IPS LCD with LED backlight |
| Aspect ratio | 16:10 |
| Useful Screen Area | 220.6 mm x 139.6 mm |
| Touch Panel | Industrial Projected capacitive touch screen with multi touch |
| Touch response time | 10ms (typical) |
| Touch PC Dimensions | 290x 212x50 mm |
| Optimal (native) Resolution | 1280 x 800 |
| LCD panel Pixel pitch | 0.1695 x 0.1695 mm |
| LCD panel Colors | 262K/16.7 million |
| LCD panel Brightness | 350 cd/m2 |
| LCD panel Response Time | 25 ms |
| Contrast Ratio | 800:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±85° or 170° total |
| Vertical (up/down) | 85°(up), 85°(down) or 170° total |
| Output Interface | HDMI type/ Audio |
| Input Interface | USB*2/Micro SD/ Sim Card |
| Net | Internet LAN RJ45 |
| Watch Dog Technology | Support |
| Power Specification | DC Phoenix 3 PIN connector |
| Monitor input: +24VDC ±5%,3.0 A; 8V-40V wide voltage options | |
| Power dissipation: 36W max | |
| ECM (Embed Computer Module) | Rockchip ARM Cortex A17 RK3288W Quad core 1.8GHz DRAM : 2GB DDR3L 1333MHz on-board ,Flash Rom:8G Operation System:Android 5.1, Linux o.s |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 60°C |
| Humidity (non condensing) | Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions | 490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) | Actual: 11kg ;Shipping: 15kg |
| Dimensions | |
| Holes fixings | Panel Mount with clips |
| Sealing | IP65 Front sealing |
| Mechanical dimensions | 290x 212x50 mm |
| Drawings | Please contact us for details |

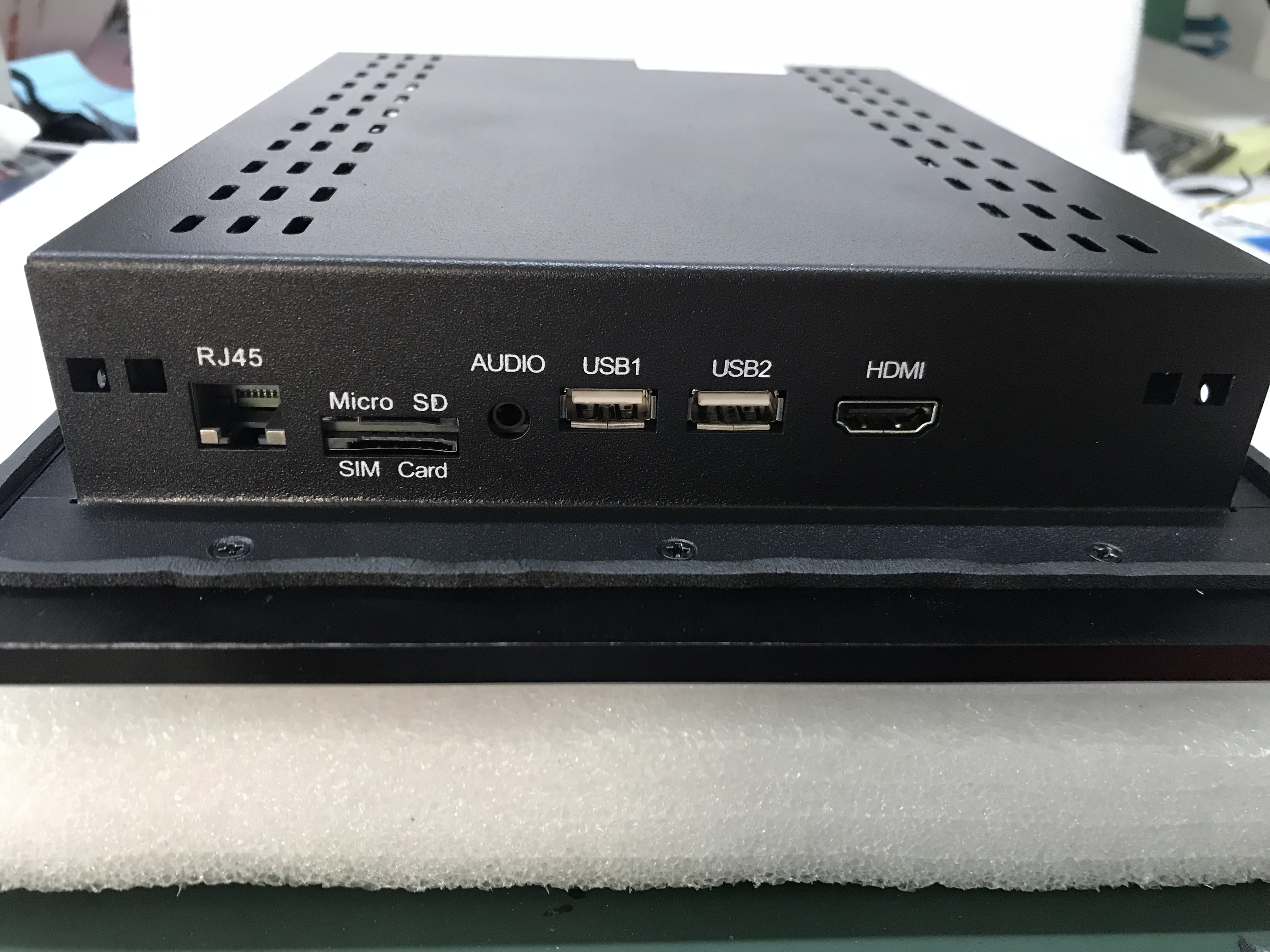

ports shown:
|
