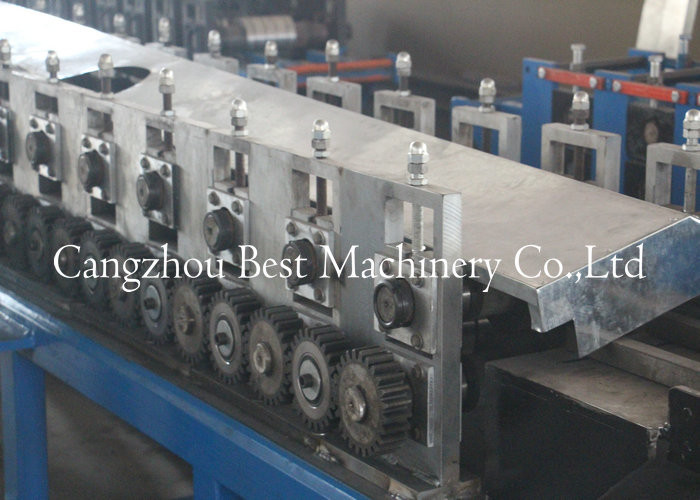

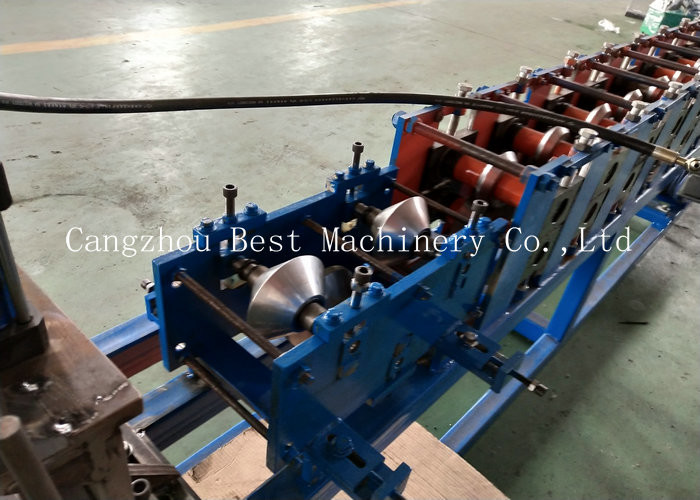

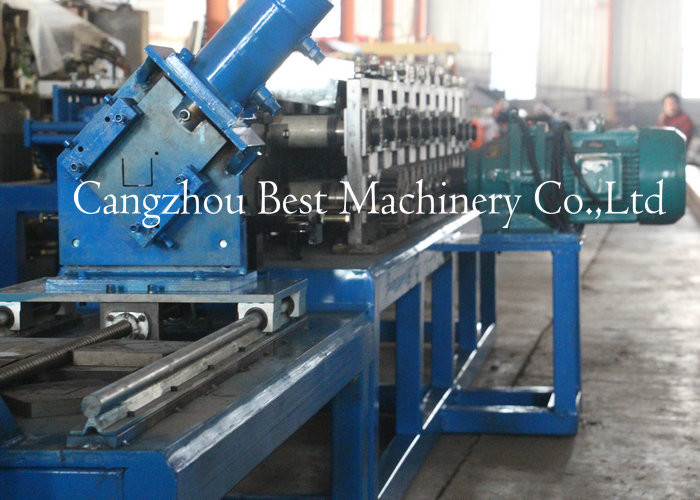

Automatic Change Size Stud and Track Roll Forming Machine Main Channel Drywall Ceiling

1)Main Techincal Data:

2)Main Accessories:

(1) .5 Ton Manual Uncoiler;

(2). Hydraulic Punching Device;

(3) .Hydraulic System;

(4) .PLC Computer Controlling System With Touch Screen; (Brand:Delta or Schneider,or Siemens,choose any one)

(5) .Hydraulic Forming Cutter;

(6) Tools;

(7) Operation Manual.

3)Technical Parameters:

Suitable material: color steel sheet or galvanized steel sheet

Thickness of raw material: 0.4-1.2mm

Yield strength of material: 235Mpa-345Mpa

Forming speed: about 8-25m/min

Uncoilers loading capacity Max. Capacity: 3000kgs (can be increased to be 10T)

Controlling system: Mitsubishi PLC & Converter

Material of Main Equipment:

Roller Material:High grade No.45 forged steel, with digital-controlled procession,

Plated with hard chrome.

Active Shaft Material: High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. Shaft diameter is 50mm.

Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements from famous suppliers in China

Cutter blade and punch dies: Cr12 mould steel with quenched treatment

- Number of Work Stations..........................12stations

- Max. Roll shaft of Diameter..........................50mm

- Roller material: GCR15 quenched 58°-62°,chromed

- Outside is cast iron, surface needed polish and paint. Inside is 60# forge and press metal)

- Transducer: Panasonic

- Cages.......................... use the strong steel nets

- Levelling screws on base ............with Thick metal paltes

Our Service

1. we can produce the special machine,send your drawing to us,we can design for you.

2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

4. engineers available to service machinery overseas.

5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, please leave your message, or you can contact us, special design is available!

The real data, the most professional foreign trade team, your best trustworthy partner.

Cangzhou Best Machinery Co., Ltd set up in 2015, with great power in production and techniques, we are a leading manufacturer of roll forming machines in North of China.We have two workshops more than 4000 square meters, and have own processing machines and design engineer, so that can control machine production time and quality;Our factory is near Beijing or Tianjing, and in Cangzhou there is railway station, so it is convinent transport.Welcome to visit our factory anytime.

Our main products are CUSTOMIZED ROLL FORMING MACHINES, because clients will use roll forming machines instead of bending machine or pressing machines to save labor, and improve production, our regular products are roof sheet roll forming machine, roof tile roll forming machine, CZ roll forming machine, floor decking roll forming machine, highway guardrail roll forming machine, cable tray roll forming machine, stud and track roll forming machine, door roll forming machine, slitting and cut to length, sandwich panel machine and so on.

We have advanced production equipment and our engineering personnel and technicians have extensive experience in designing, developing, and manufacturing machineries. They pay close attention to and keep up with the developing trend of technologies and use new technologies in manufacturing machinery, to keep them competitive. Our products feature high efficiency, high flexibility and low cost.

"Customers are the first, success comes from development" is our principle. We bear this in mind during the whole process from design and development of product to after-sales services. We will design and manufacture machinery strictly in accordance with your requirements.

With good after-sales service network, we can provide support covering the whole process of purchasing, which help you get perfect machinery. We'll solve all the problems you have while using the machines and we'll provide considerate services.

Our machines have been sold to North America, like US, Canada, South America, Nicaragua, Peru, Brazil, Bolivia, Uruaguy, Argentina, Europe, like Greece, Middle east, like Saudi Arab, Dubai, Iran, Iraq, Africa, Egypt, Ghana, Nigeria, Ethiopia, Malawi, Kenya, Tanzania, Zambia, Zimbabwe, South Africa, Australia, New Calidonia, Asia, India, Thailand, Philippines, Indonesia, Papua New Guinea, Bangladesh, Pakistan, Turkmenistan, Malaysia, Vietnam, Mongolia, helping us enter the international market.

Excellent service and high technology assist you to create a bright future.

To make sure machine quality, we applied CE certificate and SGS certificate and so on.



Our roll froming machine exported all over the world and win good repution,clients give good feedback,we have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise. INDIA, AFRICA, SOUTH AMERICA.

WE WILL YOUR BEST SUPPLIER IN CHINA,WELCOME TO CONTACT US.
