Categories | Fiber Optic Connectors |
---|---|
Brand Name: | Haiyu Optical |
Model Number: | HYG-FOC-DIN-010 |
Certification: | CE, ISO9001, Rohs |
Place of Origin: | China |
MOQ: | 1 pcs |
Price: | Negotiable |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 5000pcs per day |
Delivery Time: | 2-3 working days |
Packaging Details: | each packed in pe bag, 400-600pcs/carton |
Product name: | DIN Fiber Optic Connector |
Connector type: | DIN |
Fiber type: | Singlemode, Multimode |
Durability: | 1000 times |
Operating temperature: | -40°C ~ +80°C |
Fiber cable type: | 2.0mm 3.0mm cable |
Repeatability: | ≤ 0.2dB |
Application: | to make patch cord,Telecommunication |

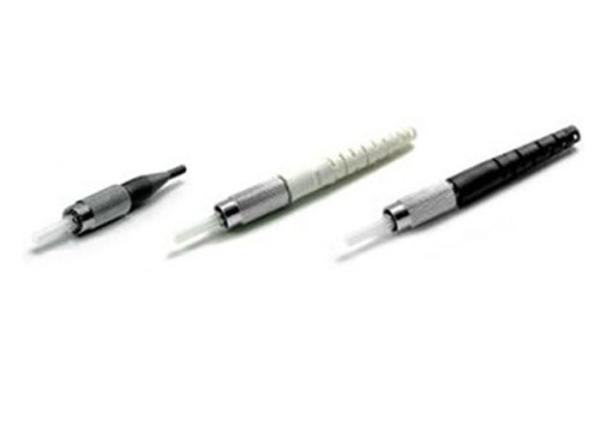

DIN Fiber Optic Connector Used in Fiber Optic Patch Cord
Specification:
Parameter | Unit | Index | ||||
SM | MM | |||||
Insertion Loss | dB | ≤0.3 | ||||
Repeatability | dB | ≤0.1 | ||||
Interchangeability | dB | ≤0.2 | ||||
Return Loss | SM | dB | ≥50 | ≥35 | ||
MM | dB | ≥35 | ||||
Mating cycle | cycle | 1000 | ||||
Operating temperature | -40~+80 |
Features:
1) Superior qualified standard PC, APC, UPC, SPC polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2
(UPC); ≤0.3 (SPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
4) φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable optional;
5) Single mode (9125) or multi mode (50125 or 62.5125) fiber available;
6) Good exchange ability and good durability;
7) Available in fiber bunch, ribbon fan-out, pigtail available;
8) Meets ISO9001, ROHS and Bell core GR 326-core standards;
Product application:
1) CATV, metro Test equipment
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;
6) Data processing networks;
7) Video and military active device termination.
![]() |
