Shearing Machine, Flanging Machine For Solar Water Heater Production Line

Shearing Machine, Flanging Machine For Solar Water Heater Production Line​

1. L2000mm Automatic Lifting Three-roller Rounding Machine

Technical parameters:

The equipment is suitable for a range of 0.4-1.2mm and is one of the ideal equipment for non-pressure solar and water tanks.

2. 4*2000 shearing machine

Technical parameters:

1) Shear plate width: 4*2000mm

2) Shear plate thickness: 0.4-1mm

3) Rated power: 5.5KVA

4) Rated voltage: 380VAC 50HZ

5) Machine net weight: 4200KG

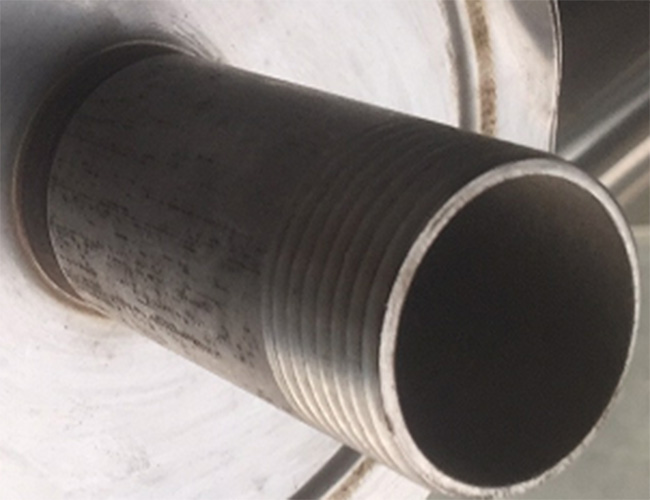

3. Heat Pipe Joint Automatic Welding Machine

Working conditions:

1) Cylinder diameter: 100-500mm

2) Workpiece thickness: 0.4-1mm

3) Material: Stainless steel Cold (hot) tie board

Equipment configuration:

1) One Panasonic 400 welding machine.

2) One automatic welding torch.

3) With water circulation cooling system.

4) The transmission part is the top-grade Taiwan silver linear guide.

5) Electrical programming is fully imported.

6) The electrical part of the warranty period is one year.

Technical parameters:

Working Sketch:

4. Flanging machine

The mechanical part:

The automatic flanging punching machine is mainly made of special steel and other steel plate materials, which are processed and finished. The whole process is pneumatic.

The action part:

This equipment adopts hydraulic system as the main, compressed air is the main power of auxiliary flange, regulates air pressure, and prohibits the operation of this equipment without mechanism oil.

Forming:

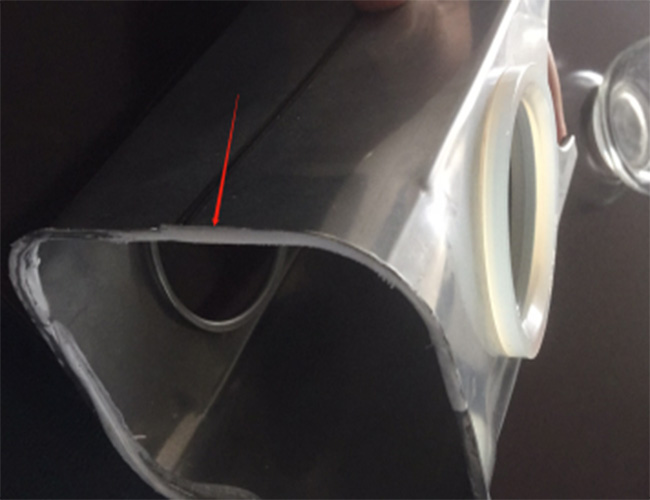

Adjust the length, barrel diameter, flange width and right angle of the workpiece on the equipment beforehand (see figure). The bump error is about 0.5mm. Then adjust the touch screen to the automatic state and click to start automatically.

Sequence: forward, tension, feed, flanging, side shifting, forward turning, feed, side shift, forward rotation stop, tightening loose, retreating, taking out the barrels with both ends flanging, the whole process requires 2.5 It is a barrel of about 4 minutes.

The time can be adjusted according to the proficiency of the customer's flanging operator (in the touch screen, time setting).

Touch screen boot display, the company profile, operating surface: automatic, manual movement, automatic start, forward rotation, reverse rotation, forward and backward, feed, side shift, flange, tension, time setting.

Working Sketch:

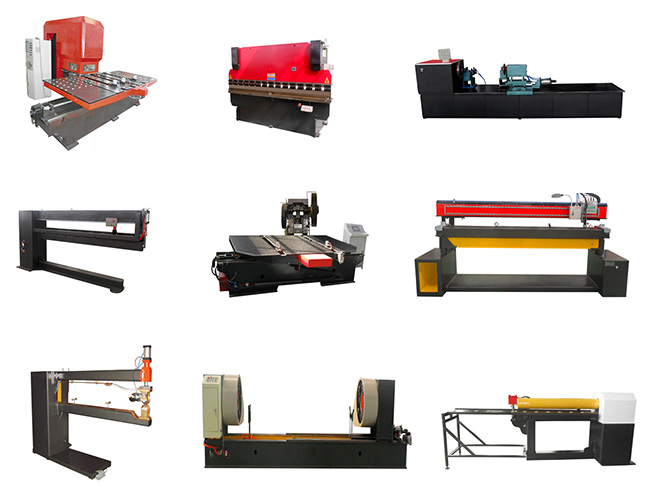

Related equipments:
