3DS Electric Reciprocating Pump with 6m³/h flow rate at 20Mpa pressure

Application

The high-pressure pump mainly supplies high-pressure liquid for hydraulic machine or accumulator, pressure vessel pressure test, sewer de-scaling, dredging, cleaning, etc., and can also transport high-pressure liquid. They are widely used for transferring clean water and some corrosive liquids.

Brief structural description

The product consists of motor the driver and pump mounted on a steel baseplate.

The rotary motion of the motor is converted the reciprocating motion of plungers by using gearing crankshaft and con-rod mechanism some products are reduced speed by belts. The transmission part consists of the gear shaft, crankshaft, connecting rod and cross-heed.

The liquid end consists of the cylinder, suction and discharge valves, sealed stuffing boxes and the relief valve, which are made of stainless steel or steel. A pressure gage installed at the discharge pipe is used to show the operating condition of the pump.

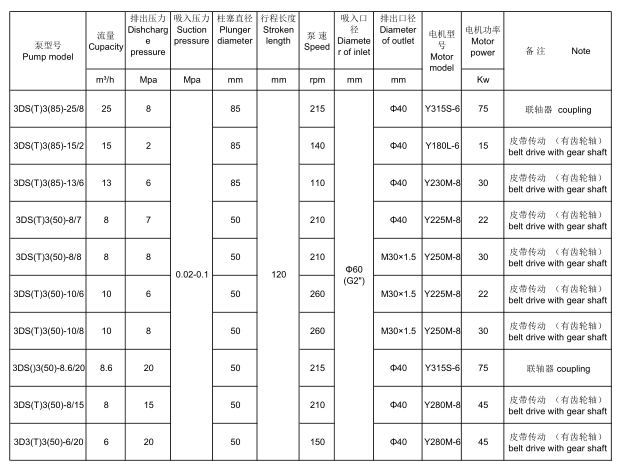

Specification of 3DS(T)3

Note: Model 3DT3 is for corrosive liquids.

Packing & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

1. Over sixty experience on pump R&D,production.

2. Adapt aerospace fluid high tech on the hydraulic end and power end,

3. A-grade supplier of CNPC over ten years.

4. High quality products at competitive price in quick delivery.
5. Professional and sincere after-sale service for overseas markets.
6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
