Pit Small Heat Treat Furnace For Carburizing Process Dia 600mm Height 800mm

Categories Electric Heat Treat Furnace
Brand Name: WONDERY
Model Number: RJ3-70-10
Certification: CE
Place of Origin: JIANGSU, CHINA
MOQ: 1 SET
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 200SETS PER YEAR
Delivery Time: 30-40 DAYS
Packaging Details: NUDE PACKAGE FIXED SUITABLE
Name: Electric Heat Treat Furnace
Effective Size: diameter 600 * height 800mm
Rated Power: 70KW
Heating zone: 1 zone
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Pit Small Heat Treat Furnace For Carburizing Process Dia 600mm Height 800mm


Pit Type Electric Heat Treat Furnace For Carburizing Process Dia 600mm Height 800mm


Company Introduction

our company is a professional supplier of heat treat/ treatment furnaces such as

box type heat treatment furnace, bogie type heat treatment furnace, pit type heat treat furnace,

carburizing heat treatment furnace, nitriding heat treat furnace, salt bath heat treatment furnace,

steel wire annealing heat treat furnace, etc.


Application of Electric Heat Treat Furnace heat treat furnace

The gas carburizing furnace is a new type energy saving cyclic heat treatment furnace. It is used for gas carburizing heat treatment of steel machine parts, automobile parts. Its max working temperature is 1050℃, and the hearth is equipped with one stainless steel muffle tank.


Technical Parameters of Electric Heat Treatment Furnace heat treat furnace

No.ItemTechnical Parameters
1Rated power70KW±10%(adjustable)
2Power supply380V, 3P, 50Hz
3Rated temperture1050℃
4Temperature control zone1-zone
5Working sizeDiameter600mm
Depth800mm
6Temperature uniformity

±5℃

7Temperature control accuracy±1℃
8Furnace cover lifting methodElectric lifting
9Refractory liningAll-fiber structure
10Heating method4 sides heating
11Temperature control methodPID control, SHIMAX Temperature Controller; Paperless recorder
12Carburizing control method

automatic carbon potential controller

13Circulating fan2.2KW Water cooling motor (blast capacity: 4800m3/h; air pressure: 1500Pa; revolving speed: 1400r/min)

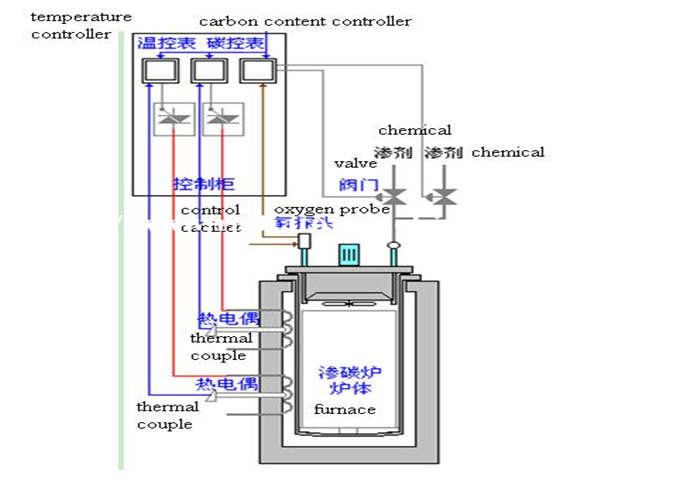

Supply Scope of Electric Heat Treat Furnace

heat treatment furnace

NoNameQuantityNote
1Furnace body1 set
2Heating element1 set
3Furnace cover lifting mechanism1 set
4Circulation fan1 set
5Temperature control system1set
6Control cabinet1 set1800X800X600mm
7SHIMAX Temperature Controller1 set
8SCR3 pieces
9Muffle tank1 setIncluding 1set Water cooling fan
10Compensating wire30 meters
11Thermal couple2 piecesK type
12Other components1 setContactor, air switch, ampmeter, voltmeter, thermorelay, switches, etc
13Carbon control system1 set
14Electrical diagram1 set
15Operation instruction manual1 set

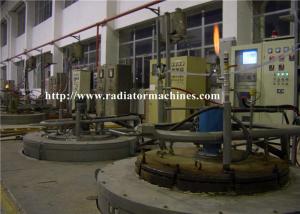

heat treatment furnace
